Service Manual FB 7100 Water System
5A - 10 January, 2005
Check the sensor holder for tear and brittleness, replace it if necessary.
Check that the electrical connection is properly connected, as otherwise the
water intake is not stopped automatically when the water reaches the water
level sensor.
A.2.10 Disassembling the heating element and dry-boiling
thermostat
Preparation Before disassembling the heating element and the dry-boiling thermostat
• Open the door.
• Switch off the main switch.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
• Drain the boiler completely, see this section, page 5A-3.
• Remove the water system, see this section, page 5A-4.
• Remove the boiler, see this section, page 5A-4.
Disassembly Follow these steps to disassemble the heating element:
Installation Installation is done in reverse order.

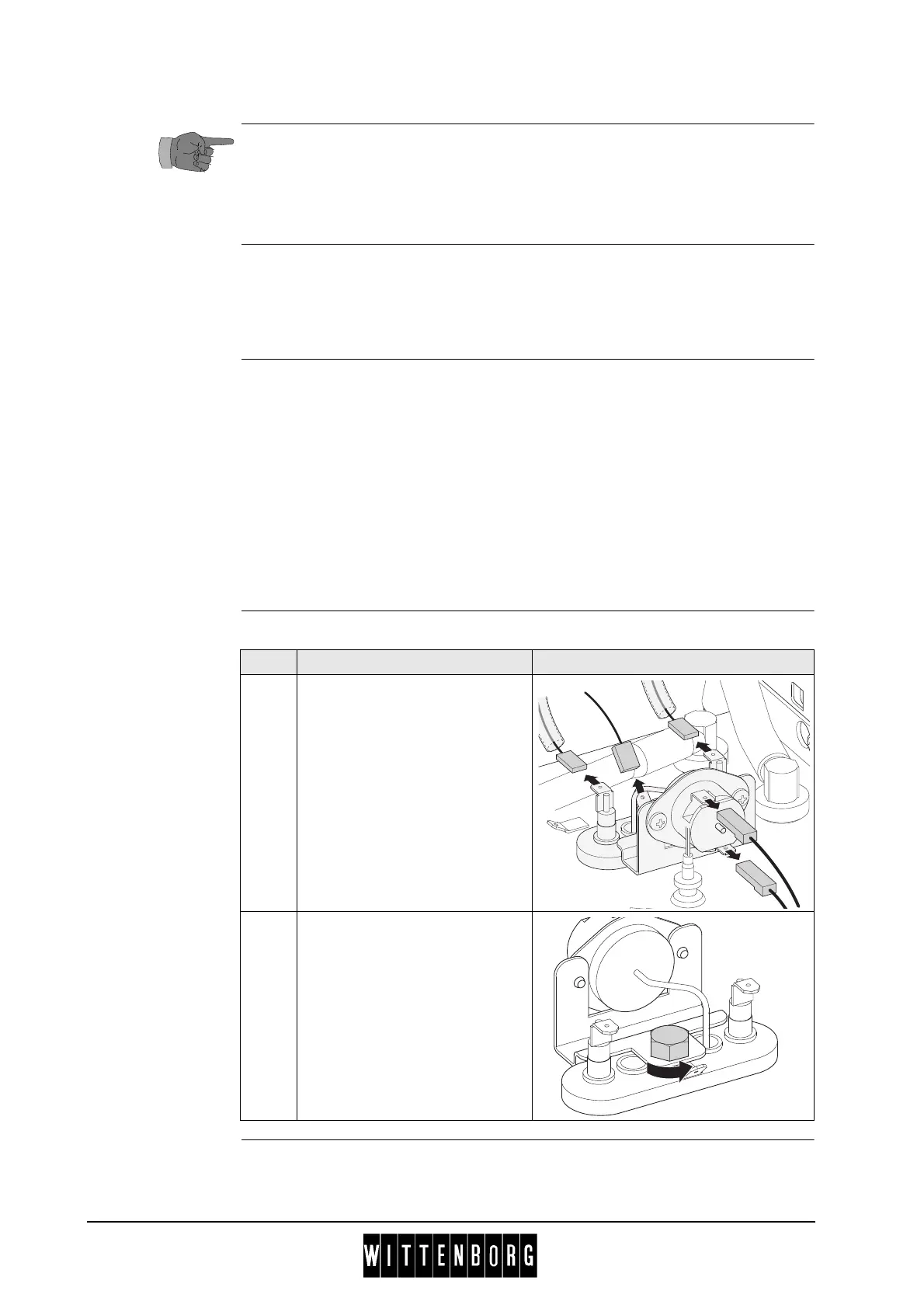

Step Action Illustration
1 • Pull the insulating hoses off
the heating element contacts
• Disconnect the electrical
connections as well as the
earth wire.
2 Loosen the nut at the heating
element, and remove the
heating element with the dry-
boiling thermostat.
