Service Manual FB 7100 Dosing System
January, 2005 5C - 5
C.2.4 Disassembling a dispensing valve for instant ingredients
Preparation Before disassembling a dispensing valve
• Open the door
• Switch off the main switch.
• Remove the instant ingredient mixing unit in question, see this section,
page 5C-2.

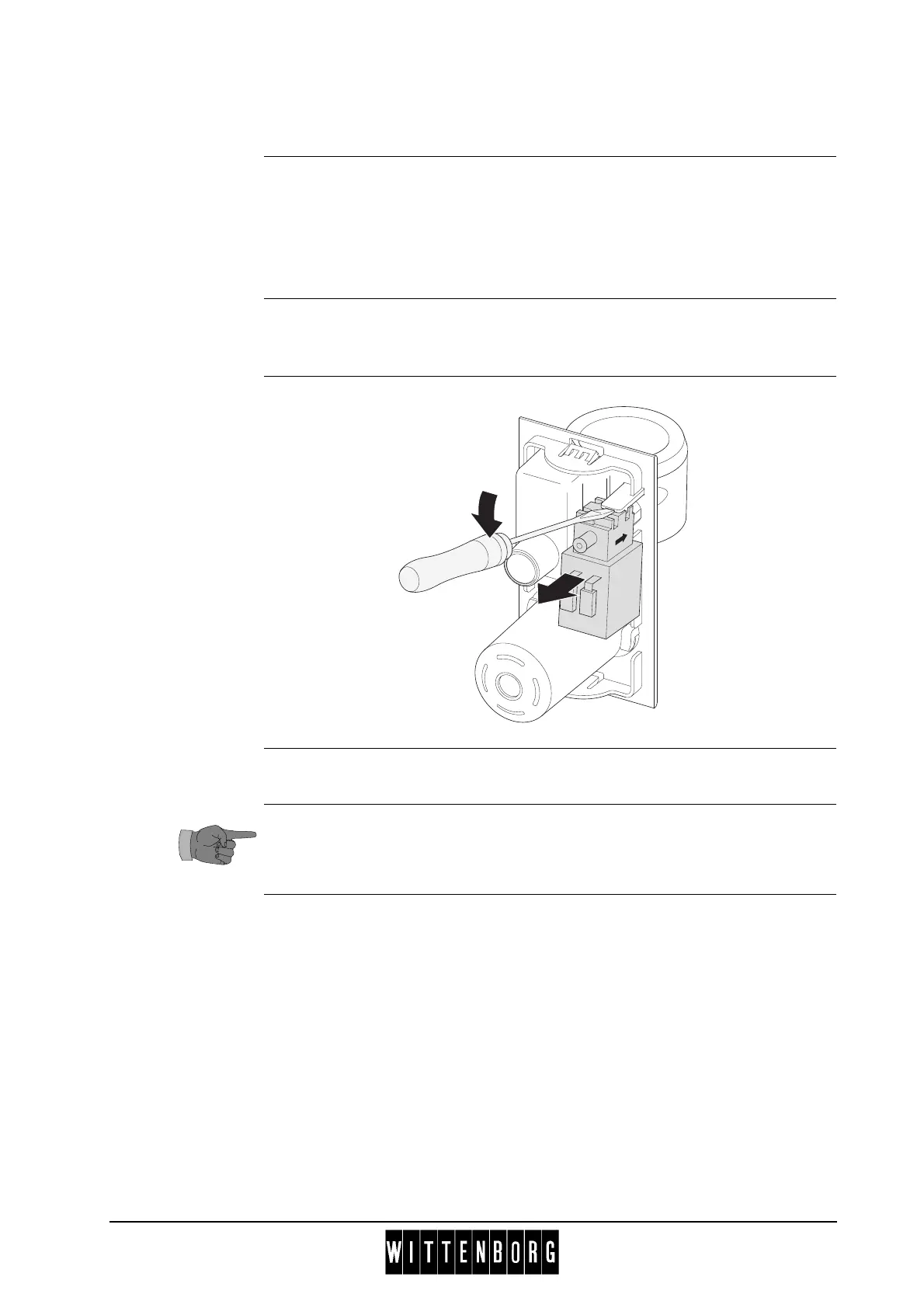

Disassembly Use a flat screwdriver to lift the locking tab as shown in the illustration be-
low, and pull out the dispensing valve of the outlet tube module plate.
Illustration
Installation Installation is done in reverse order.
Ensure that valve is properly seated in the outlet tube, which is simultane-
ously acting as a seal.
