Service Manual FB 7100 Brewer System
January, 2005 5B - 25
B.3.15 Replacing the ejector spring
Preparation • Switch off the main switch, disconnect the power supply, and close the
water tap.
• Remove the brewer, see this section, page 5B-4.
• Remove the brewer cylinder, the filter plate holder and the scraper, see
this section, page 5B-7.
Disassembly Follow these steps to remove the ejector spring:
Assembly Assembly is done in reverse order.
When reassembling:
• The spring has to be placed between the fastening domes and the
spring guide, see illustration above.

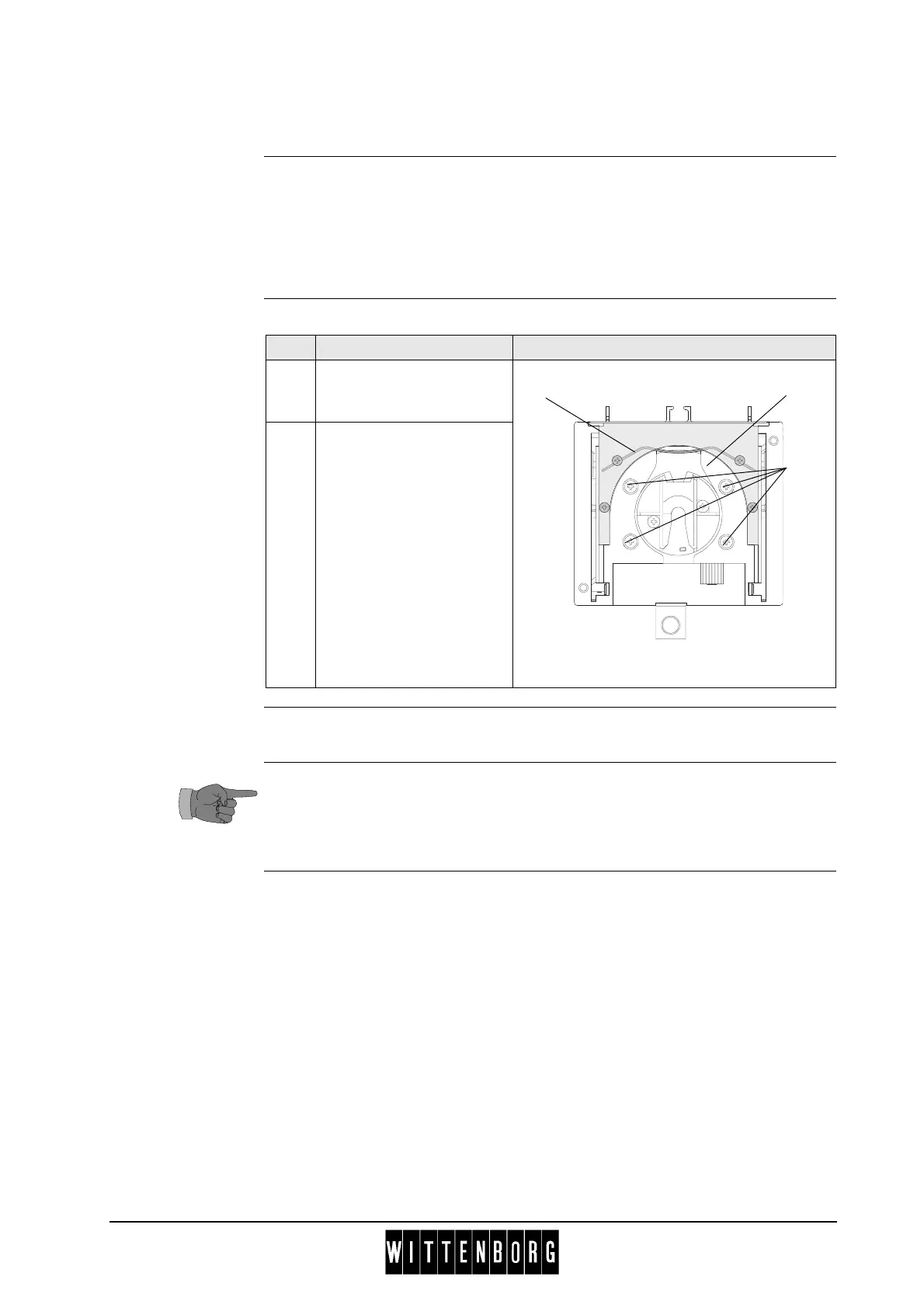

Step Action Illustration
1 Remove the four screws
(1) of the brewer cylinder
support (2)
2 Press the spring (3)
towards the back by
means of a screwdriver,
and remove it to the side.
1
2
3
