Service Manual FB 7100
5K - 2 January, 2005

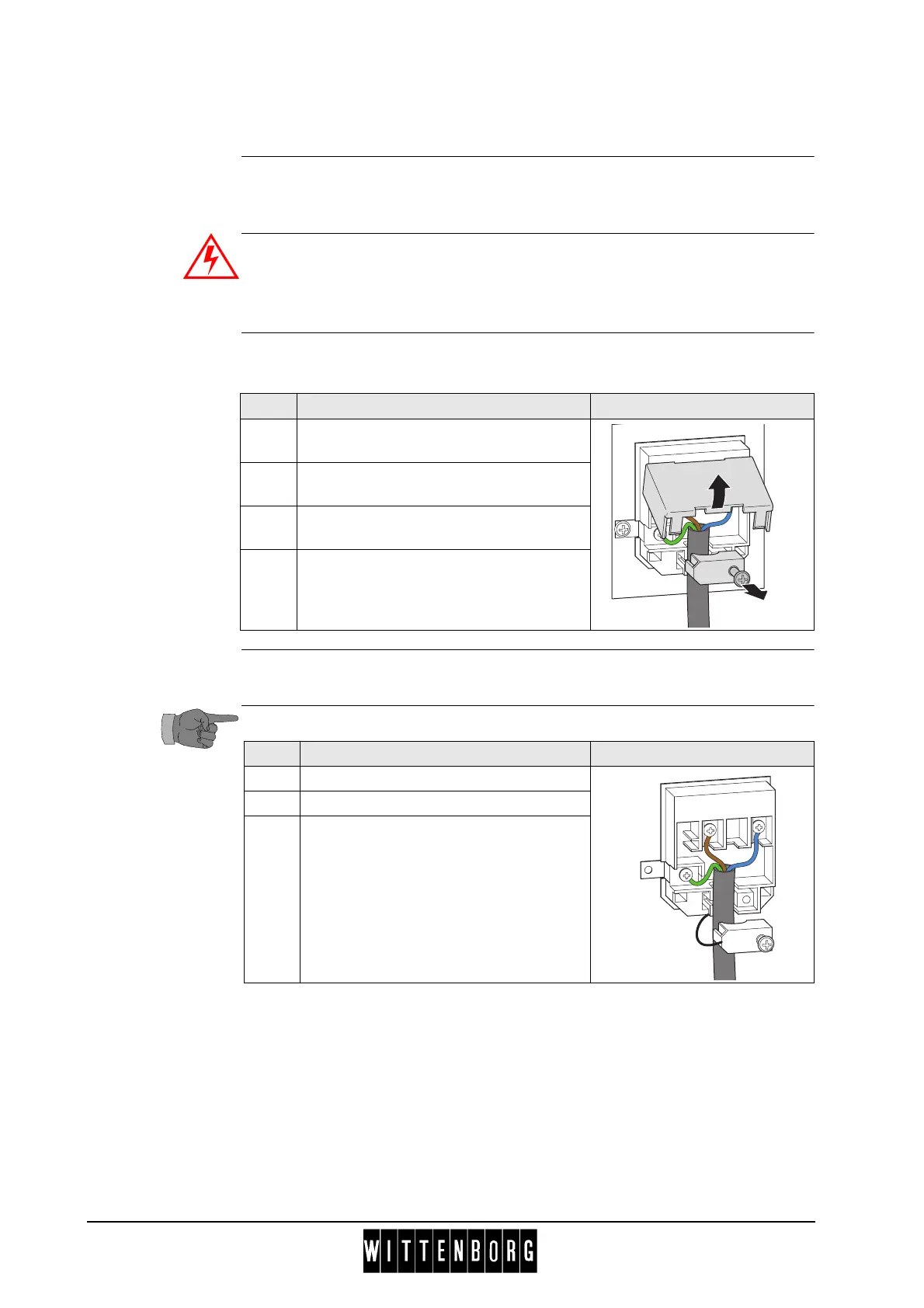

K.2.2 Disassembling the power supply cord
Preparation Before disassembling the power supply cable:
• Disconnect the power supply
Ensure that the machine is disconnected from the mains electrical supply!
The machine is only isolated from the mains supply when the plug has
been pulled out.
Disassembly From rear side of machine follow these steps to disassemble the power
supply cable:
Assembly Assembly is done in reverse order.
Make sure the reconnection is made correctly, see table below:
Step Action Illustration
1 Remove cord unloader loosening one
screw.
2 Release the snap pins at both sides at
the bottom of cover and tilt up the cover
3 Disconnect the cable connection at the
terminal strip.
4 Remove the power supply cord.
1 blue: neutral
2 brown: line
3 yellow / green: protective earth
