G.2.10 Disassembling the door switch
Preparation Before replacing the advertising poster:
• Open the door.
• Switch off the main switch.
• Remove the brewer unit, see chap. 5.B.3.2, page 5B-4.
• Remove door switch, see this section, page 5G-11.
Disassembly The procedure for disassembling the door switch is as follows:
Assembly Assembly is done in reverse order.

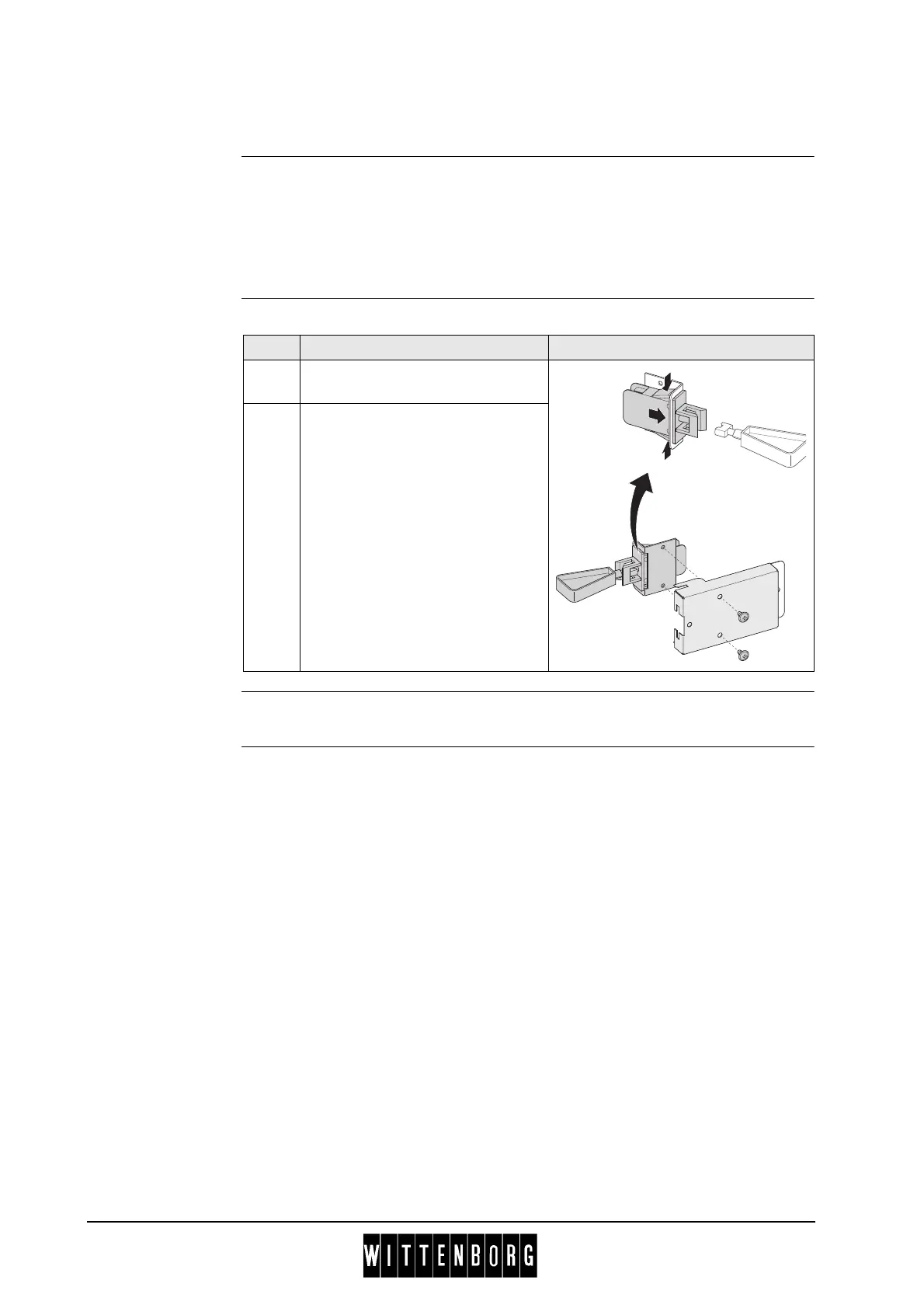

Step Action Illustration
1 Remove two screws and detach
switch from bracket. (1)
2 Detach the switch from the small
bracket (2) by squeezing the two
retaining clips together with one
hand while pulling the switch with
the other.
1
2
