Service Manual FB 7100
5C - 2 January, 2005
C.2 (Dis-)assemblies
C.2.1 Removing the instant ingredient mixing units
Preparation Before removing mixing units
• Open the door.
• Switch off the main switch.
Removing Follow these steps to remove ingredient mixing units:
Installation Installation is done in reverse order.
• Ensure that mixing unit connects properly to extraction tube coupling
and valve connection when reinstalling into main bracket.
• The main bracket for mixing units is provided with holes to facilitate
correct location of mixing units.

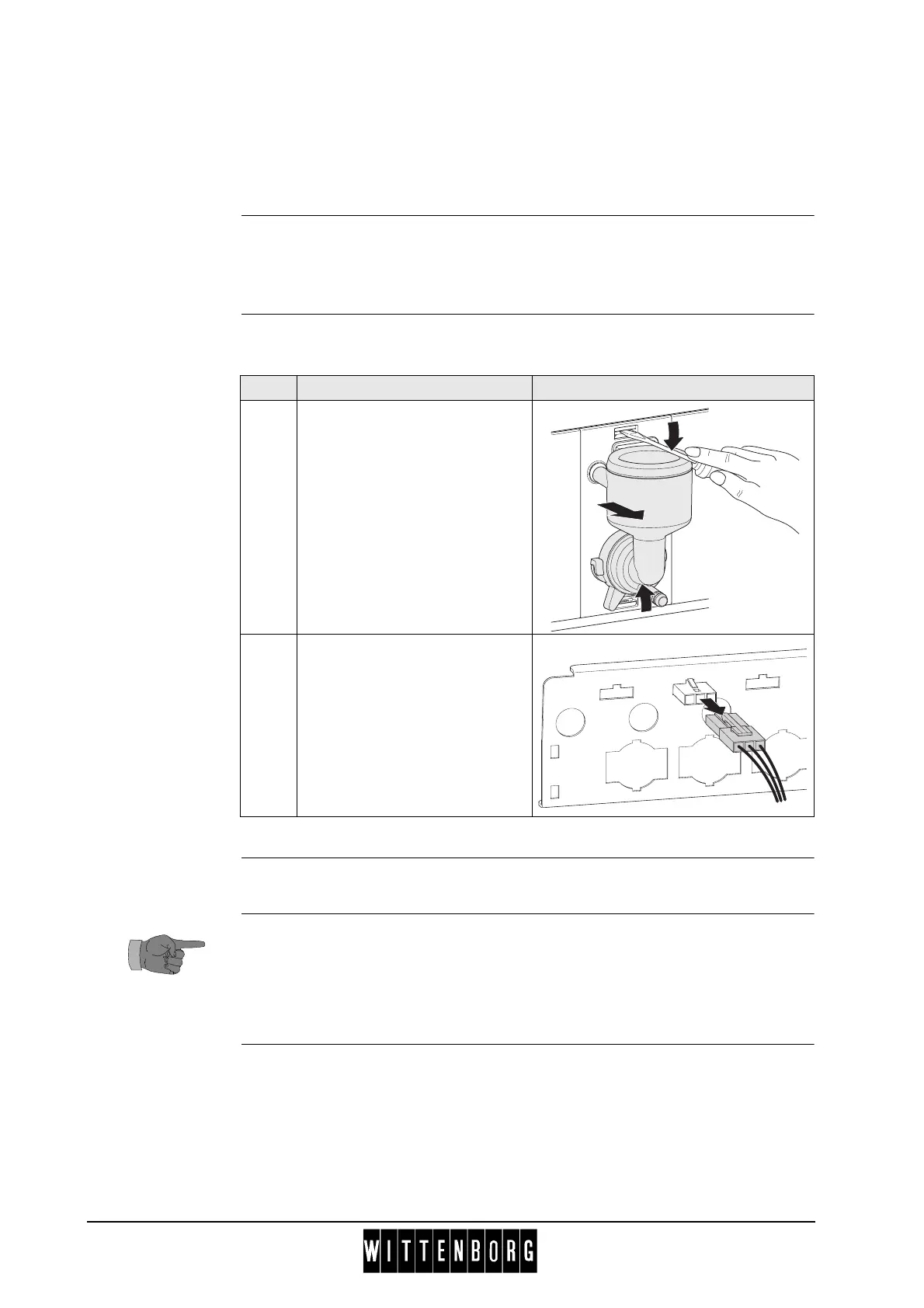

Step Action Illustration
1 Detach the mixing unit by
pressing the flat end of a slotted
tip screw driver against the
upper and lower click tabs, and
pull out the mixing unit from the
main bracket for mixing units.
2 Disconnect the plug connection
from the connection rail.
