Service Manual FB 7100 Product Delivery
5D - 6 January, 2005
D.3 Functional descriptions
D.3.1 Total overview
Cup staton Essential parts of the cup station:
1 Cup sensors
2 Drip grate
3 Drip tray sensors

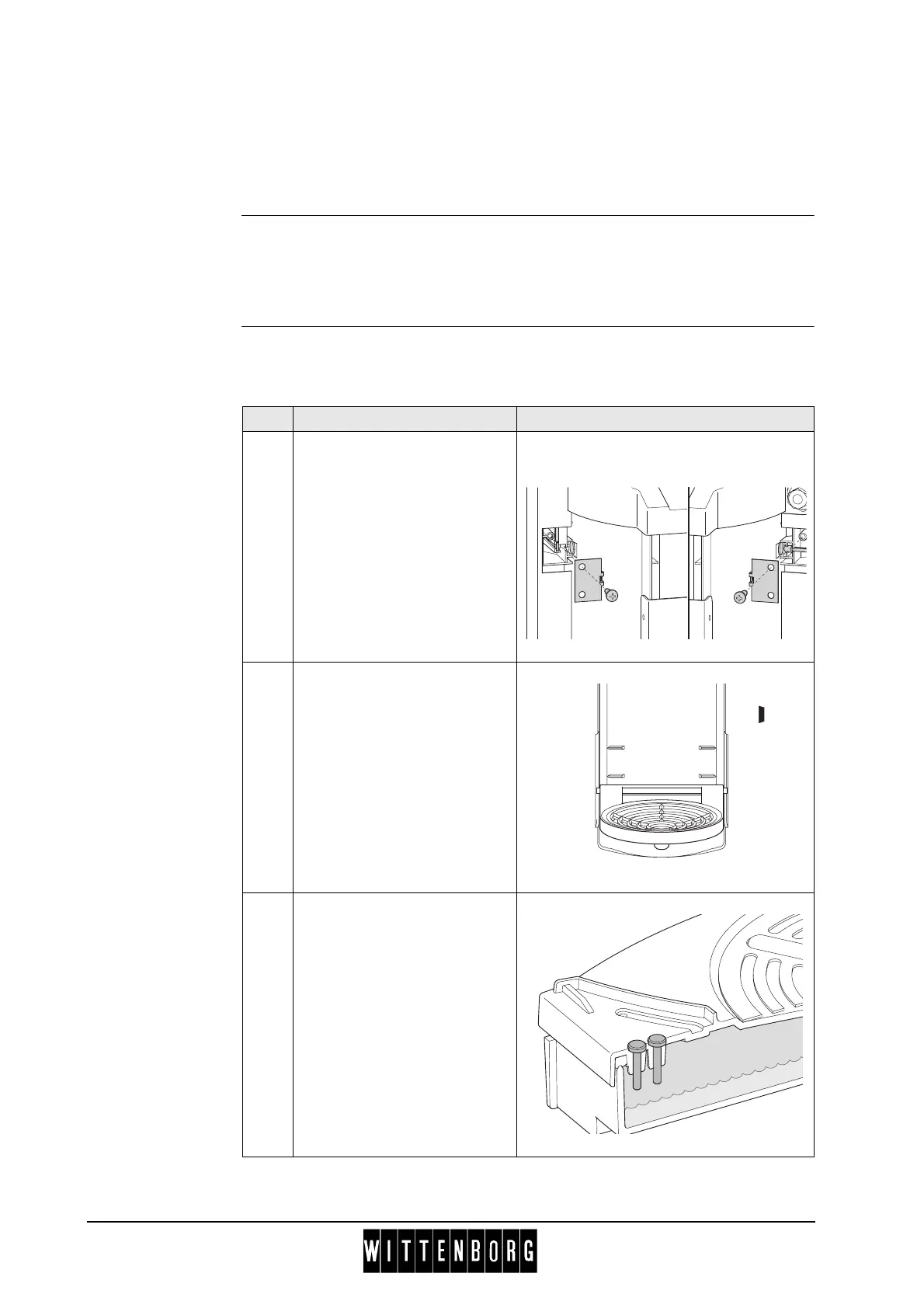

Description This table gives a brief description of the various parts of the cup station.
Description Illustration
1 The cup sensors detect if a
cup is placed on the cup
platform or if a pot is placed on
the pot platform.
2 The drip grate lets spilt liquid
pass through to the drip tray
below.
3 The drip tray sensors detect if
the drip tray needs emptying
and release an error message.
