Service Manual FB 7100
5K - 12 January, 2005
K.2.12 Disassembling the vending machine controller (VMC)
Preparation Before disassembling the vending machine controller:
• Disconnect the power supply.
• Open the door
• Remove instant ingredient canisters.
• Remove cover for VMC, see this section, page 5K-11.
Ensure that the machine is disconnected from the mains electrical supply!
The machine is only isolated from the mains supply when the plug has
been pulled out.
Caution:
Electrostatic discharge may cause damage to Printed Circuit Boards
(PCBs) and electronic components.
To avoid damage:
• Always wear an anti-static wrist wrap when handling PCBs or
electronic components.
Alternatively touch a metal area of the earthed cabinet to discharge static
electricity from your body prior to touching any PCB or electronic compo-
nent.

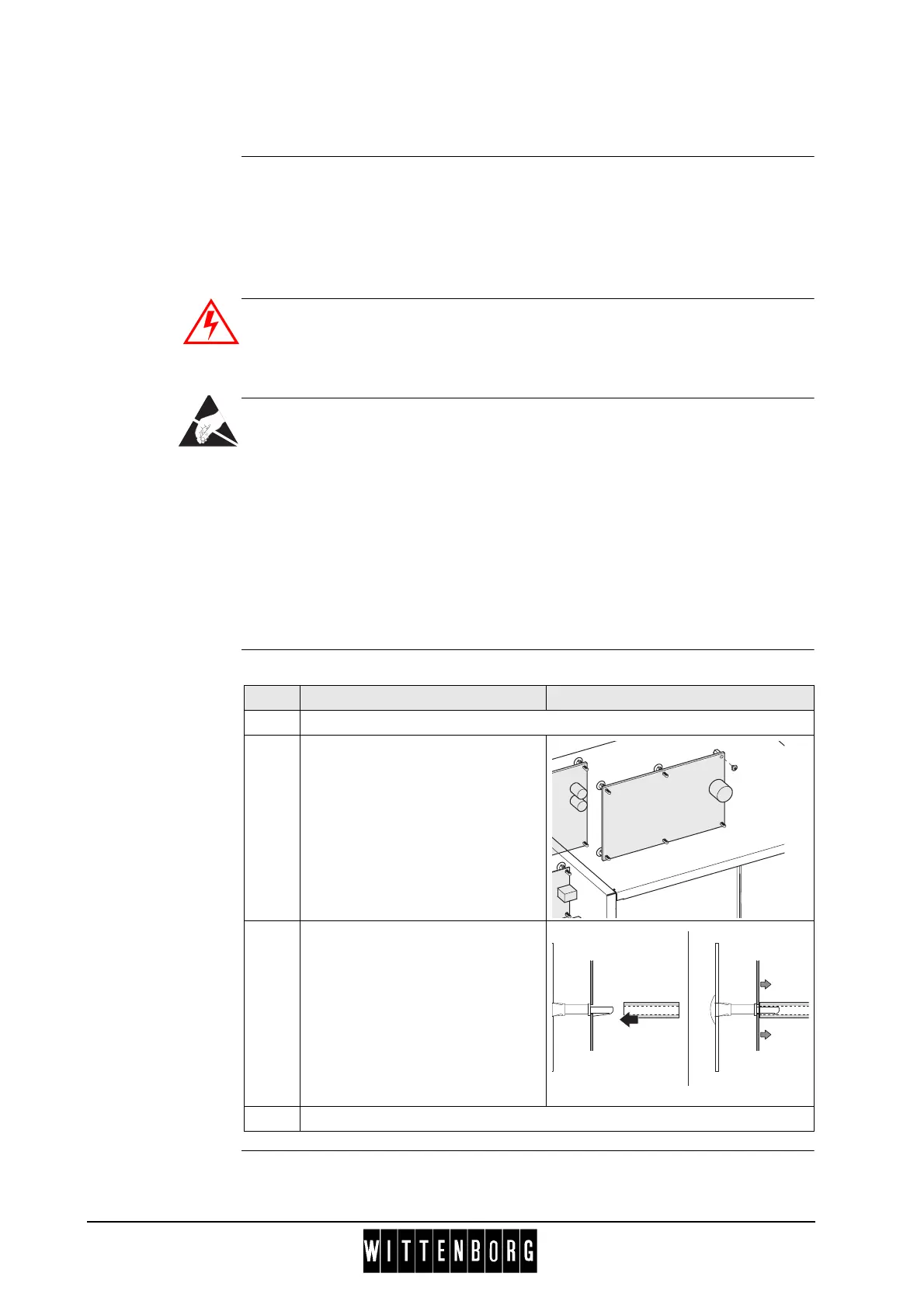

Disassembly Follow these steps to disassemble the printed circuit board:
Assembly Assembly is done in reverse order.
Step Action Illustration
1 Disconnect all board connectors
2 Remove screw at right upper
corner of printed circuit board
3 Squeeze the five fastening clips
with an appropriate tool
Tip : Use a piece of hard hose/
tube with internal diameter of
4 mm.
4 Gently pull off the printed circuit board.
