B.3.10 Disassembling the tachoboard
Preparation Before disassembling the tachoboard:
• Switch off the main switch, disconnect the power supply, and close the
water tap.
• Remove the brewer, see this section, page 5B-4.
• Remove the brewer housing, see this section, page 5B-8.
Disassembly Follow these steps to disassemble the tachoboard:
Assembly Assembly is done in reverse order.

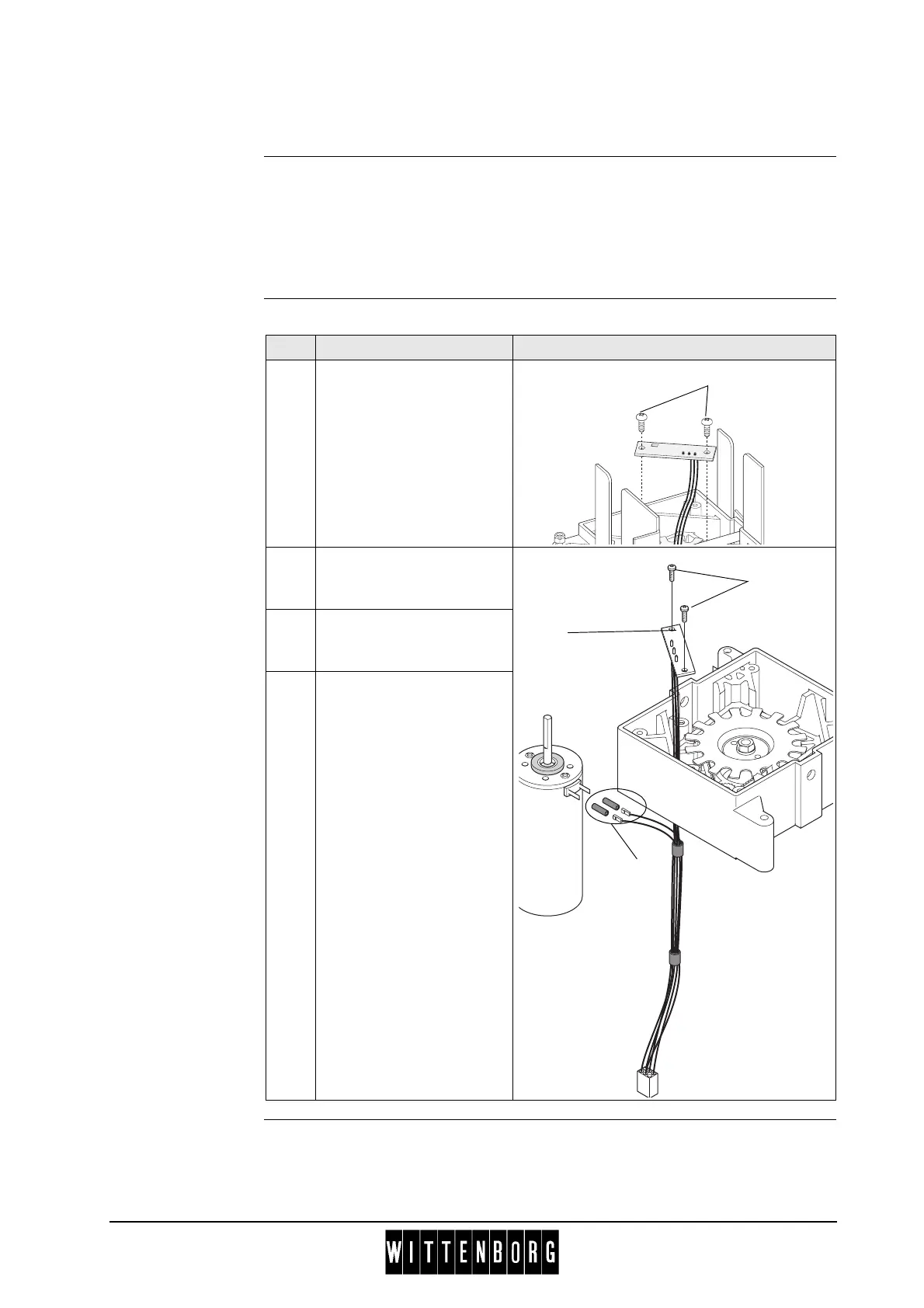

Step Action Illustration
1 Remove the two screws
(1).
2 Disconnect the 6-pole plug
connection console/
tachoboard
3 Pull off the two cable plug
connections (2) from the
actuator motor.
4 Remove the tachoboard
(3) together with the cable
harness.
