Wittenborg FB 7100 - Removing the Water System (Boiler and Pump)

Service Manual FB 7100 Water System
5A - 4 January, 2005
• Remember to tighten screw of hose clamp after draining.
A.2.4 Removing the water system (boiler and pump)
Preparation Before removing the boiler
• Open the door.
• Switch off the main switch.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
• Drain the boiler completely, see this section, page 5A-3.
Hot water, risk of being scalded.
Removal Follow these steps to remove the water system after having drained the wa-
ter from it:

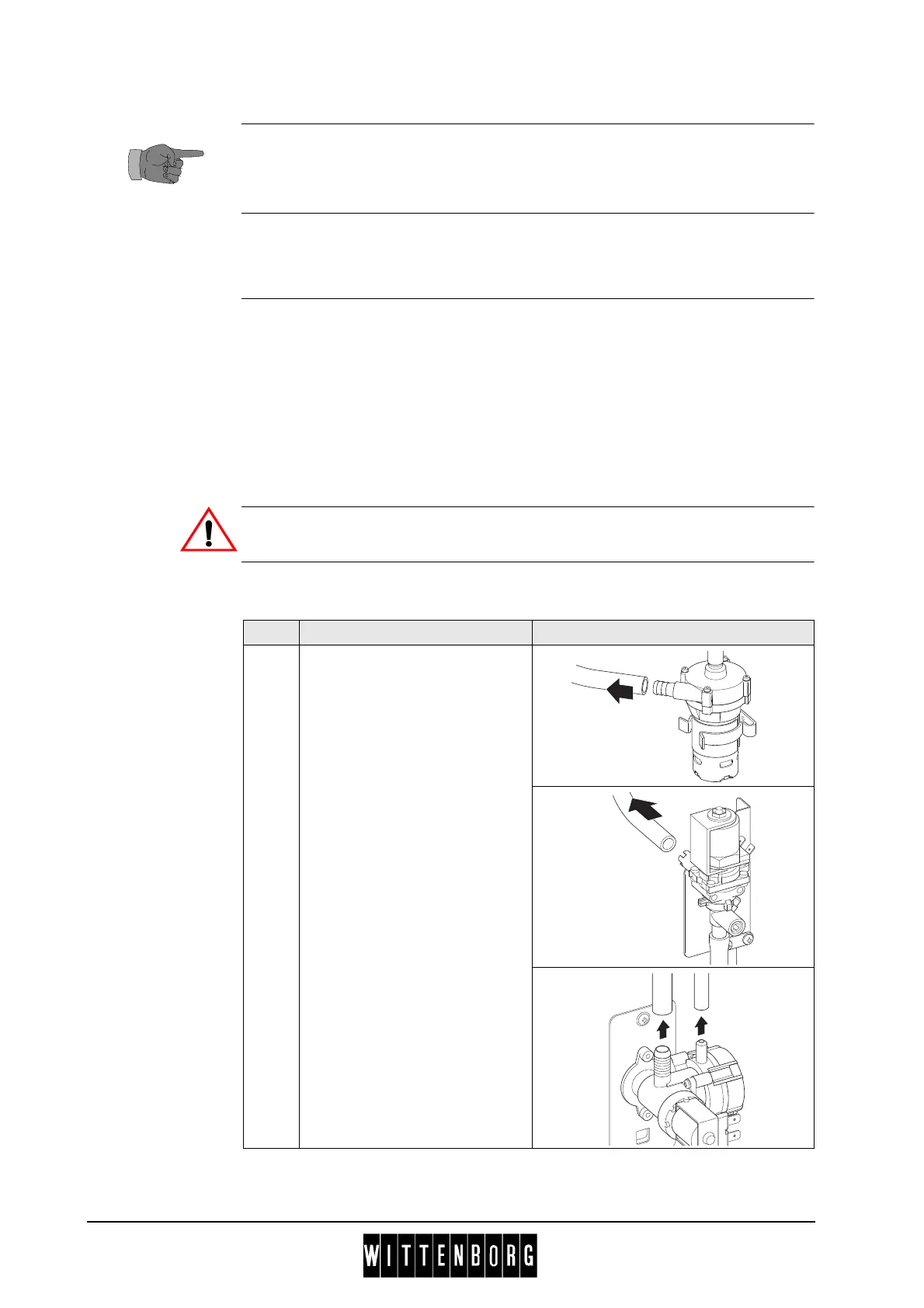

Step Action Illustration
1.
Remove hoses from
1. pump,
2. recirculation valve and
3. inlet valve (two pieces).
1
2
2
