Service Manual FB 7100 Water System
January, 2005 5A - 5

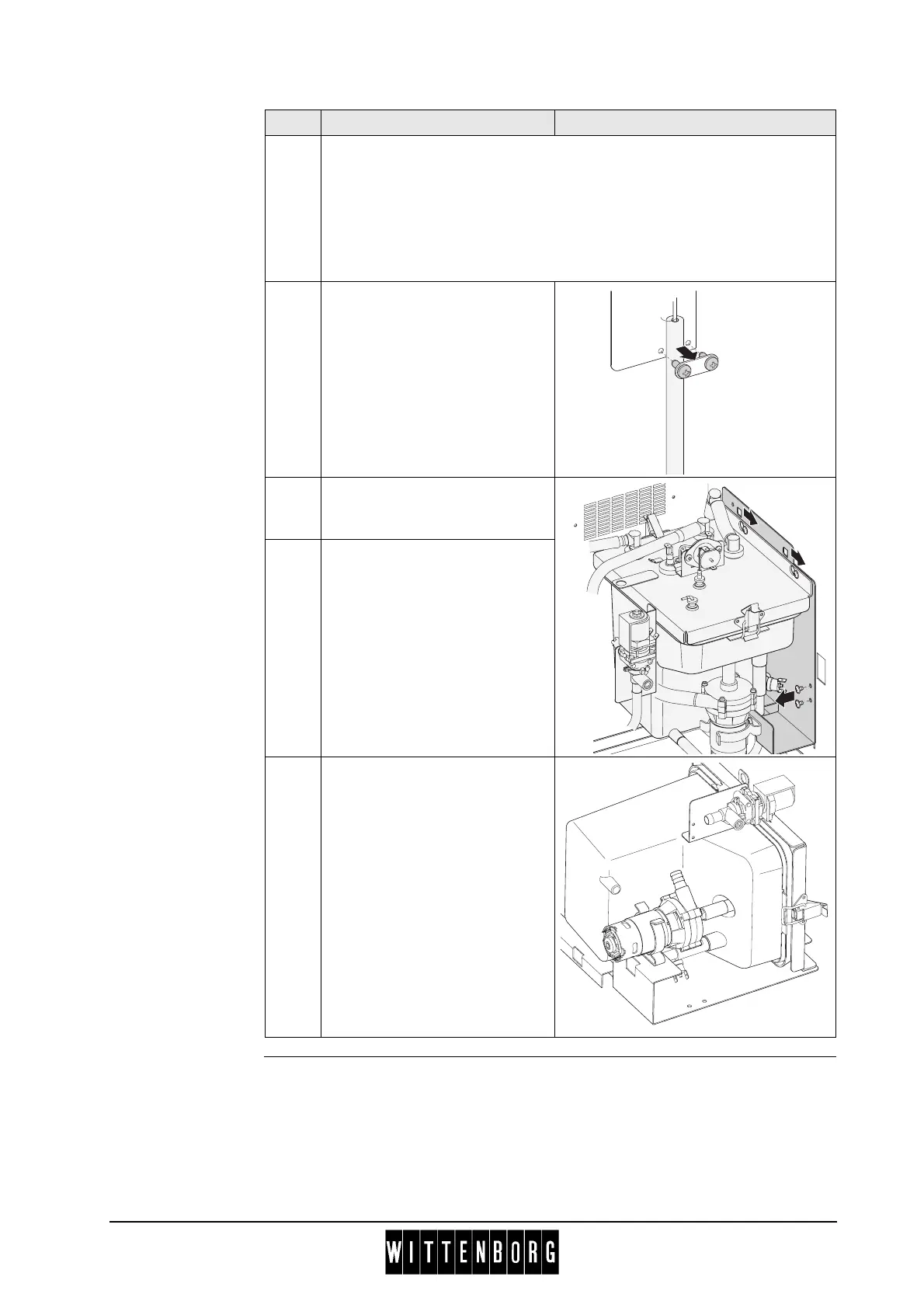

Installation Installation is done in reverse order. Clean hoses before refitting to pump
or replace by new ones to prevent blocking of the pump because of lime-
scale.
2.
Remove electrical connections to
•pump
• inlet valve
• overboil safety cut-out
• temperature sensor
• water level sensor
• recirculation valve
3 Loosen two screws from base
sensor bracket, and pull out
sensor.
4 Remove the two screws from
mounting bracket for water
system.
5 Slide complete water system
forwards to release the hooks in
the side of the cabinet.
Tilt water system sligthly,
remove earth wire and electrical
connections to heater, and lift
out watersystem.
6 Place water system on the side
on a plane surface outside of
machine.
Step Action Illustration
