Service Manual FB 7100 Dosing System
5C - 12 January, 2005
C.2.10 Removing the RS 232 print from suspension rail
Preparation Before removing the RS 232 print from the suspension rail
• Open the door.
• Switch off the main switch.
• Remove the instant ingredient canisters, see Operator Manual.
• Remove suspension for ingredient canisters, see
this section, page 5C-9.
Removal Follow these steps to remove RS 232 print.
Installation Installation is done in the reverse order

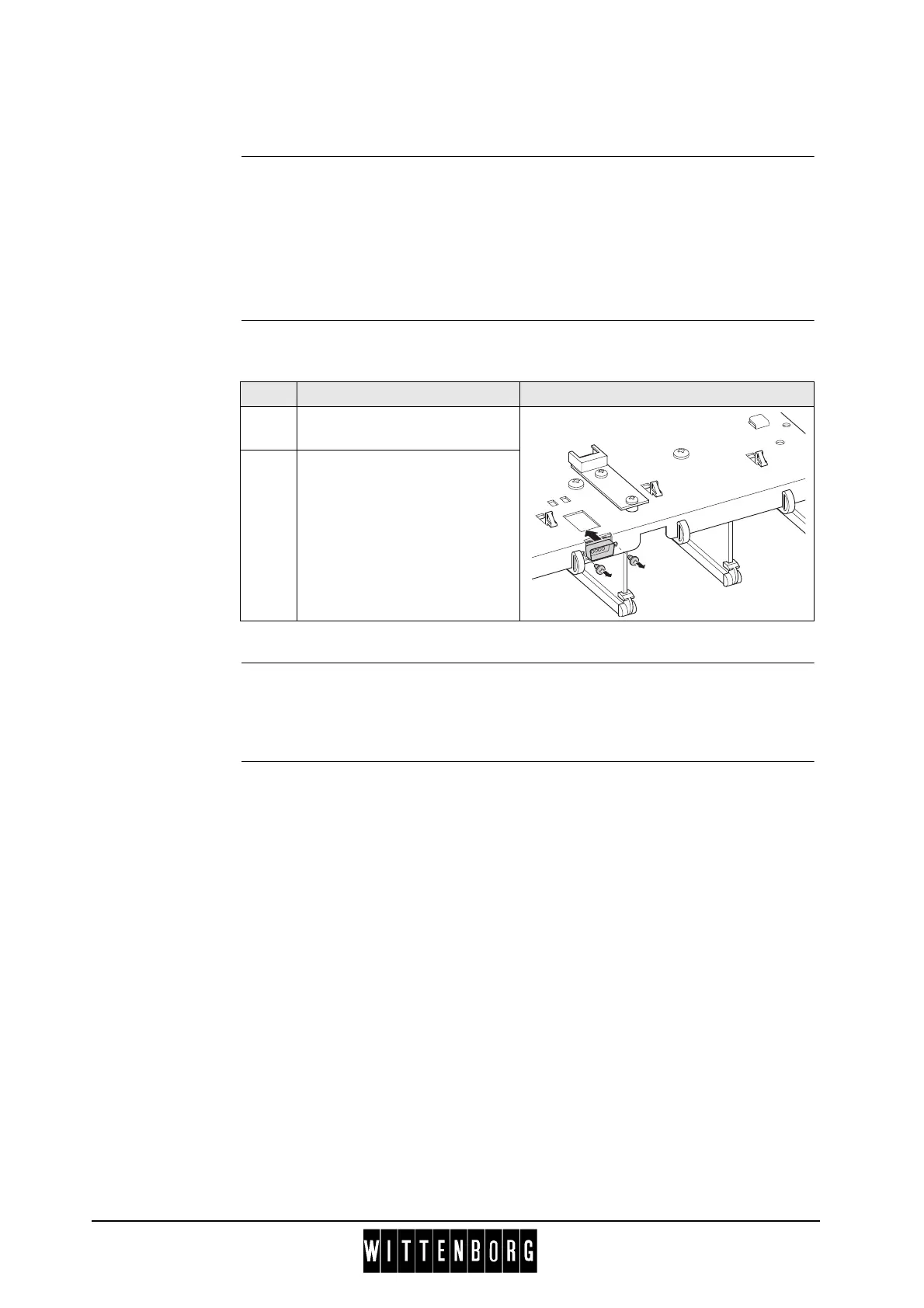

Step Action Illustration
1 Remove two screws from RS
232 connection.
2 Push RS 232 backwards and
out of suspension rail.
