B.3.7 Disassembling the ingredient motor
Preparation • Switch off the main switch, disconnect the power supply, and close the
water tap.
• Remove the brewer, see this section, page 5B-4.
• Remove the brewer cylinder, the filter plate holder and the scraper, see
this section, page 5B-7.
• Remove the brewer housing, see this section, page 5B-8.
Note When disassembling the dosing motor, the scraper has to be in the rear po-
sition. If not remove scraper arm before proceeding.
Disassembly Follow these steps to disassemble the ingredient motor:
Assembly Assembly is done in reverse order.

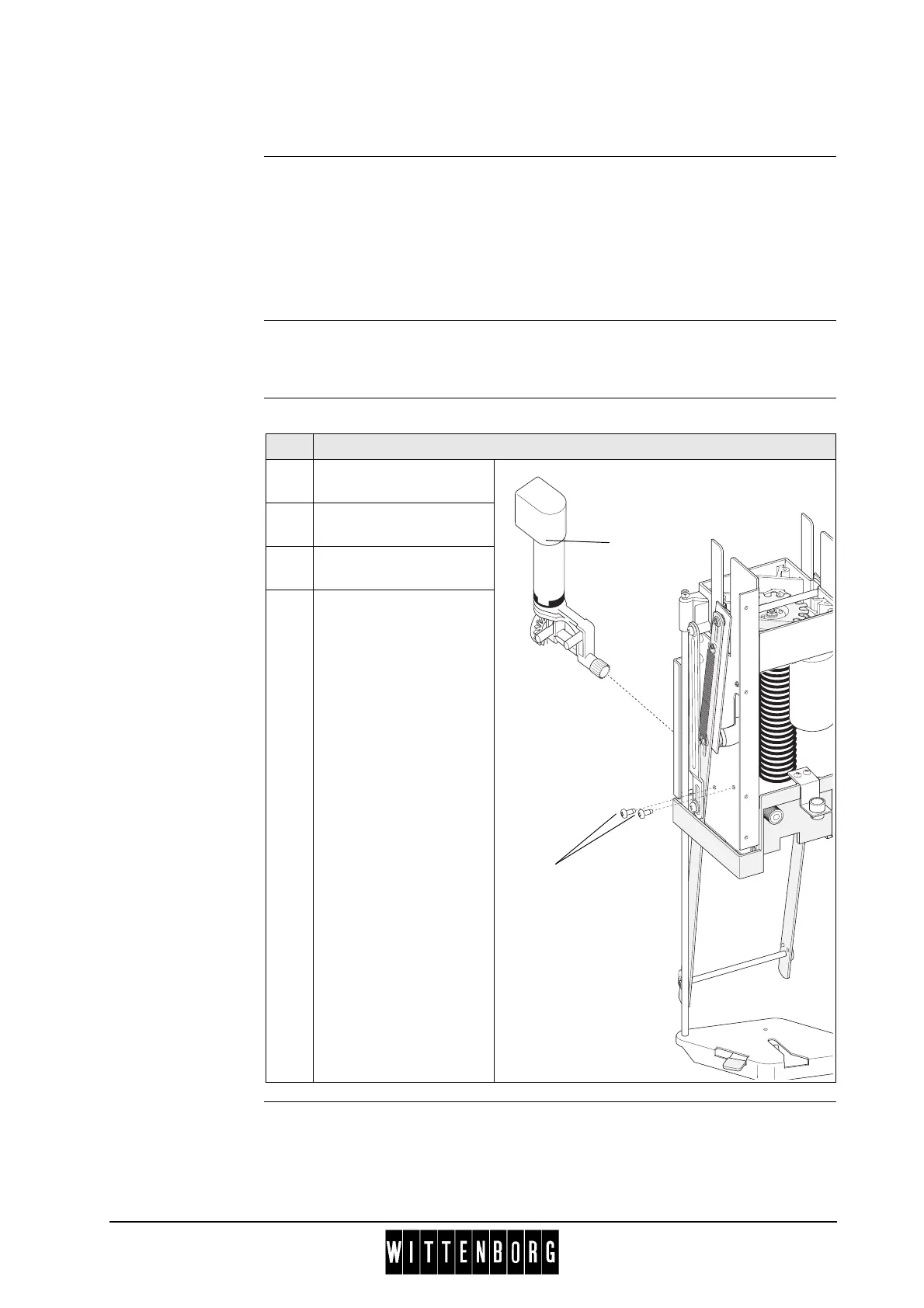

Step Action
1 Remove the two screws
(1).
2 Pull the ingredient motor
backwards (2).
3 Disconnect the plug
connection.
4 Remove the ingredient
motor.
1
2
