Service Manual FB 7100 Water System
January, 2005 5A - 11
A.2.11 Resetting the dry-boiling thermostat
Preparation Before resetting the dry-boiling thermostat
• Open the door.
• Switch off the main switch.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.

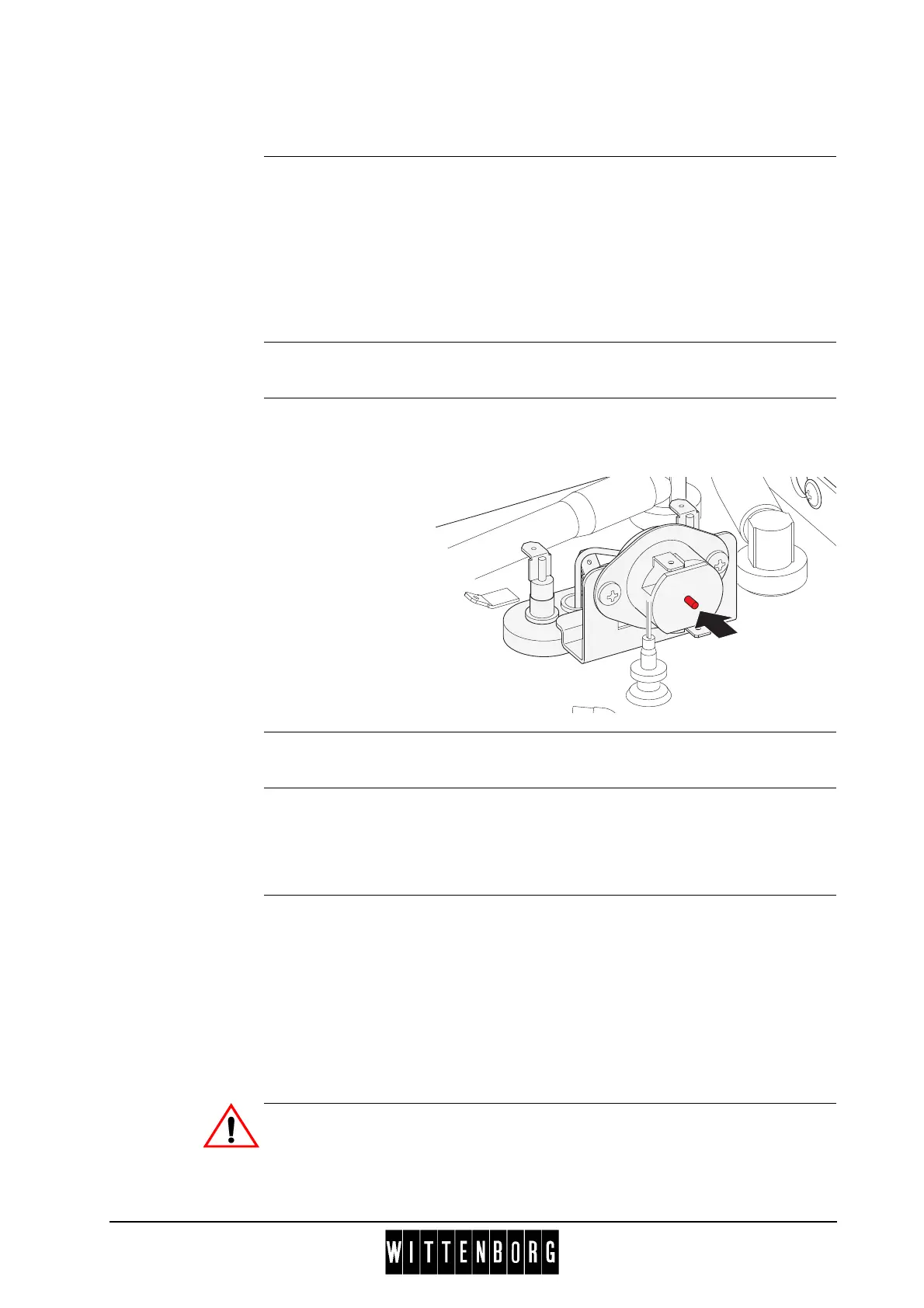

Resetting Press the reset button of the dry-boiling thermostat (see illustration below).
Illustration The dry-running thermostat is located at the heating element on lid for
boiler as illustrated below:
Assembly Assembly is done in reverse order.
A.2.12 Disassembling the reflux valve and the supply hose
Preparation Before disassembling the water inlet parts
• Open the door.
• Switch off the main switch.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mouting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
• Drain the boiler completely, see this section, page 5A-3.
Hot water, risk of being scalded.
