Service Manual FB 7100 Water System
January, 2005 5A - 15
A.2.16 Disassembling a dispensing valve for instant ingredients
Preparation Before disassembling a dispensing valve
• Open the door.
• Switch off the main switch
• Remove the instant ingredient mixing unit in question, see chap.
5.C.2.1, page 5C-2.

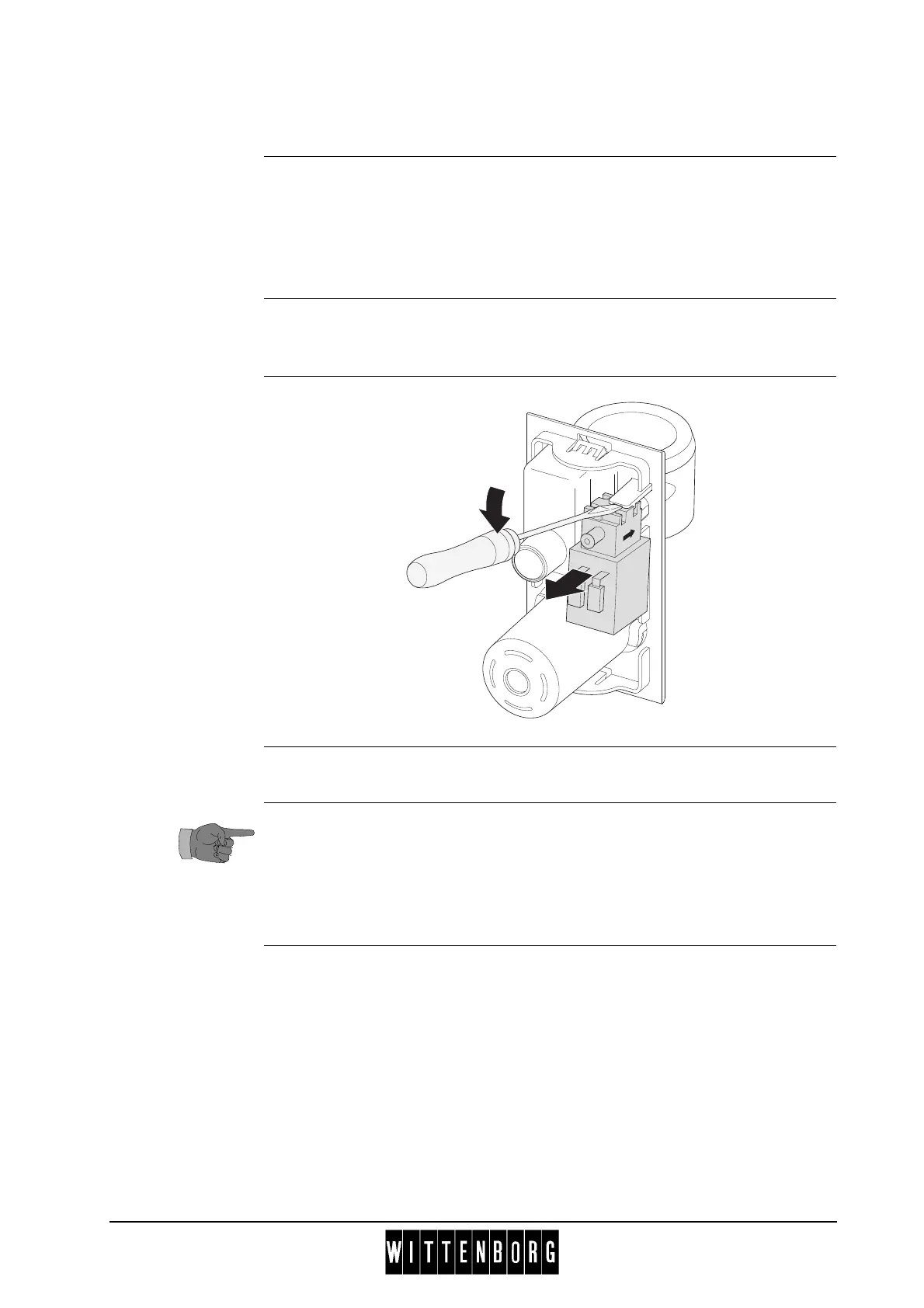

Disassembly Use a flat screw driver to lift the locking tab as shown in the illustration
below, and pull out the dispensing valve of the outlet tube module plate.
Illustration
Installation Installation is done in reverse order.
Ensure that valve is properly seated in the outlet tube, which is simultane-
ously acting as a seal.
Note the flow direction of the outlet tube which should align with the di-
rection marked on the outlet valve.
