Service Manual FB 7100
5K - 4 January, 2005
K.2.4 Disassembling the power supply box
Preparation Before disassembling the power supply box:
• Disconnect the power supply.
• Open the door
• Remove the freshbrewer unit, see chap. 5.B.3.2, page 5B-4.
• Remove cover plate for power supply box, FB print and CPU, see this
section, page 5K-3.
Ensure that the machine is disconnected from the mains electrical supply!
The machine is only isolated from the mains supply when the plug has
been pulled out.
Disassembly Follow these steps to disassemble the power supply box:
Assembly Assembly is done in reverse order

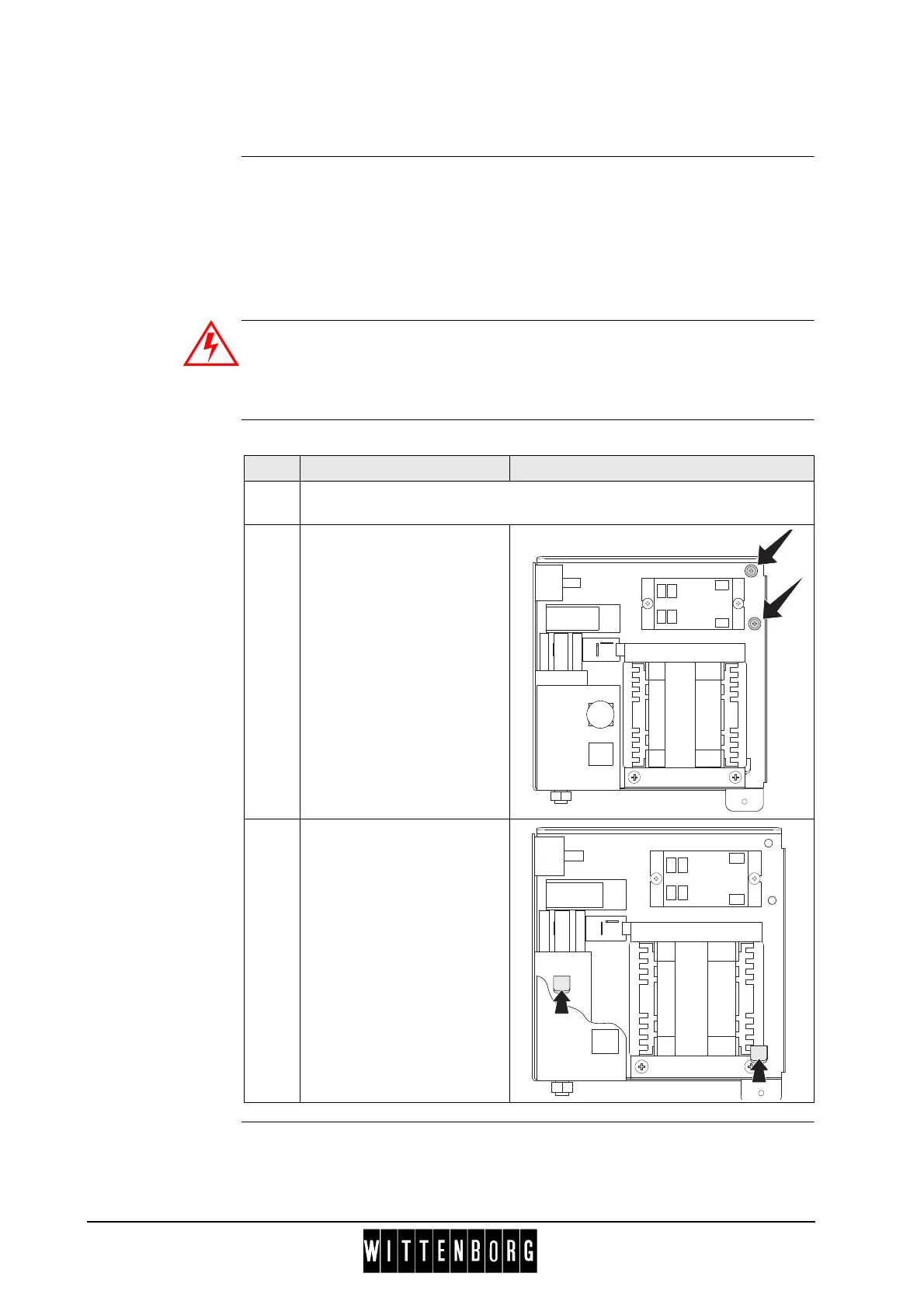

Step Action Illustration
1 Pull off the electrical connection plugs of the electrical components in
power supply box
2 Remove the two fixing
screws to the right side in
rear of power supply box
3 Lift up 2 cm to detach supply
box from mounting rail.
Note: The supply box is held
in place by hooks.
