Service Manual FB 7100 Brewer System
January, 2005 5B - 9

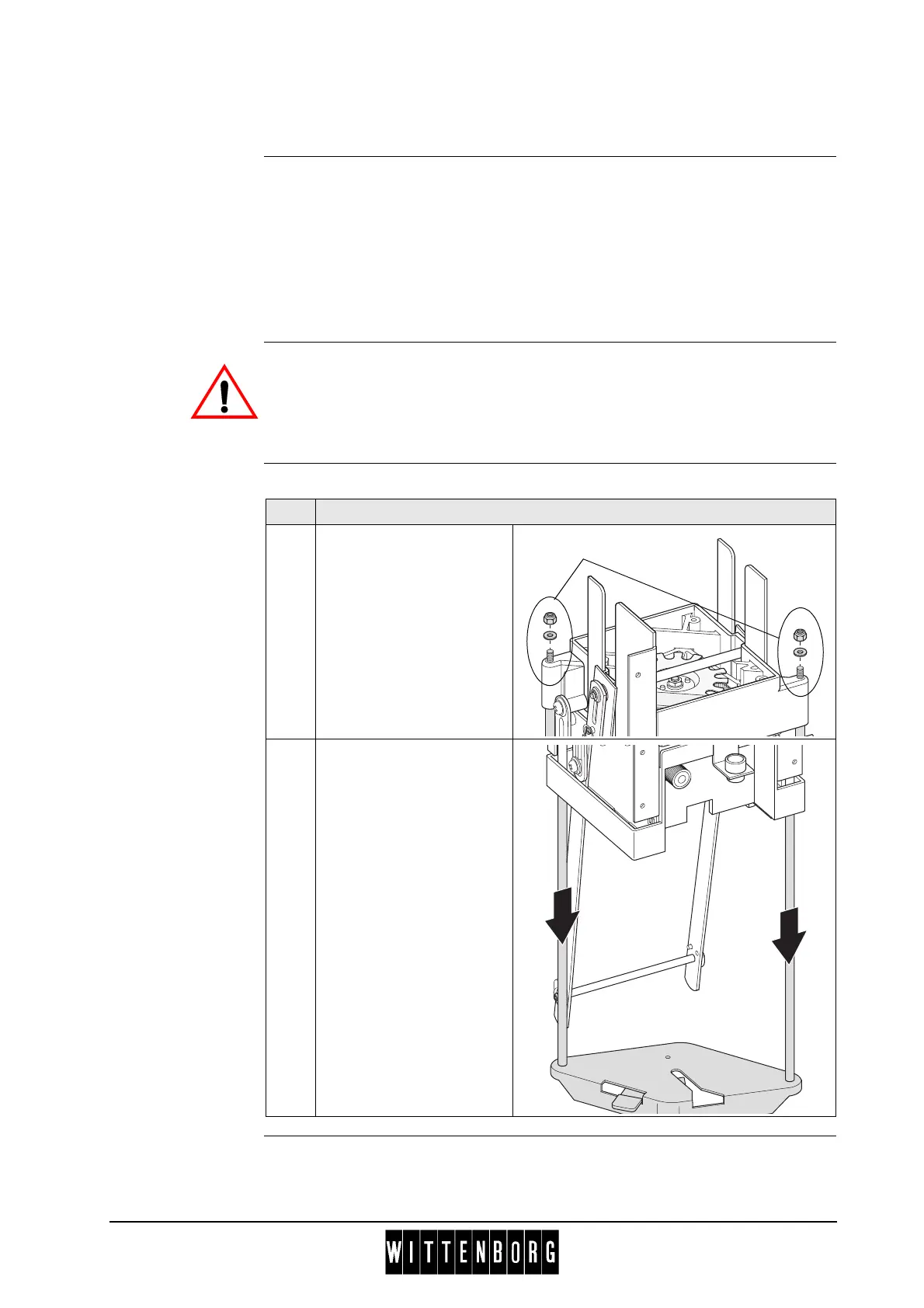

B.3.6 Disassembling the tie rods
Preparation Before disassembling the tie rods:
• Switch off the main switch, disconnect the power supply, and close the
water tap.
• Remove the brewer, see this section, page 5B-4.
• Remove the brewer cylinder, the filter plate holder, and the scraper, see
this section, page 5B-7.
• Remove the brewer housing, see this section, page 5B-8.
The actuator of the brewer is provided with a heavy spring under tension.
Always turn the top and bottom of brewer away from any person before
removing the scraper, as a defective actuator could expand suddenly.
There is an increased risk of injuries.
Disassembly Follow these steps to disassemble the tie rods:
Assembly Assembly is done in reverse order.
Step Action
1 Loosen the tie rods (1)
(2 self-locking nuts with
washers).
2 Pull out the tie rods
together with the filter plate
support.
1
