Service Manual FB 7100 Brewer System
January, 2005 5B - 7

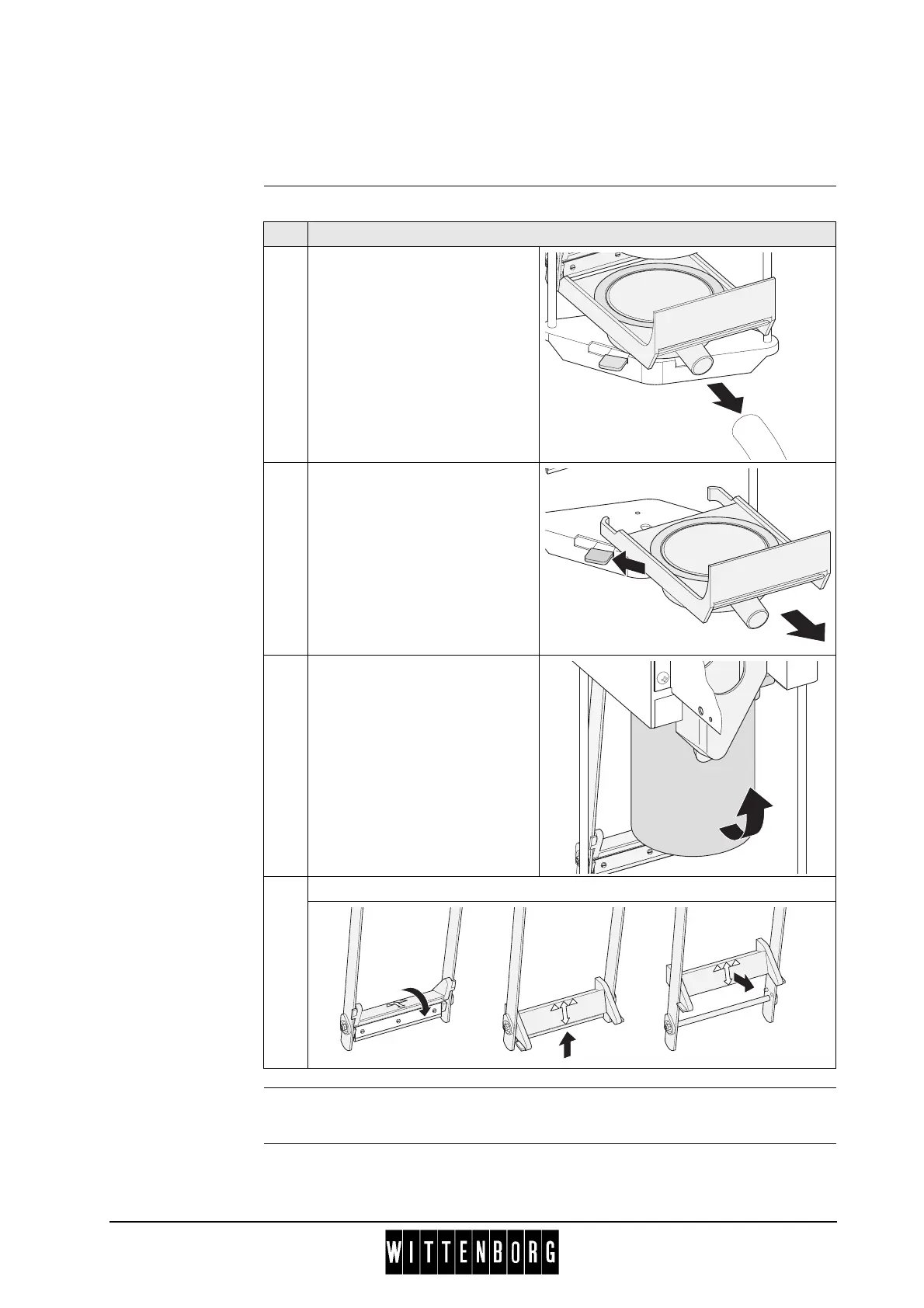

B.3.4 Removing the brewer cylinder, filter plate holder and
scraper
Removal Follow these steps to remove the parts:
Assembly Assembly is done in reverse order.
Step Action
1 Remove the outlet pipe from the
filter plate.
2 Press lock at the filter plate
support backwards and
withdraw filter plate holder with
filter plate.
3 Take hold of the brewer cylinder
by placing your thumb on the
outside and the rest of your
fingers inside the “brewing
chamber”, tilt the cylinder
smoothly and remove cylinder.
4 Remove scraper by turning and lifting it straight up.
