A.2.17 Disassembling the dispensing valve for freshbrewer unit
Preparation • Open the door.
• Switch off the main switch.
• Remove instant ingredient canisters.
• Remove cover plate for instant ingredient module, see chap. 5.C.2.3,
page 5C-3.
Dissassembly Follow these steps to disassemble the dispensing valve for freshbrewer
unit:
Installation Installation is done in reverse order.

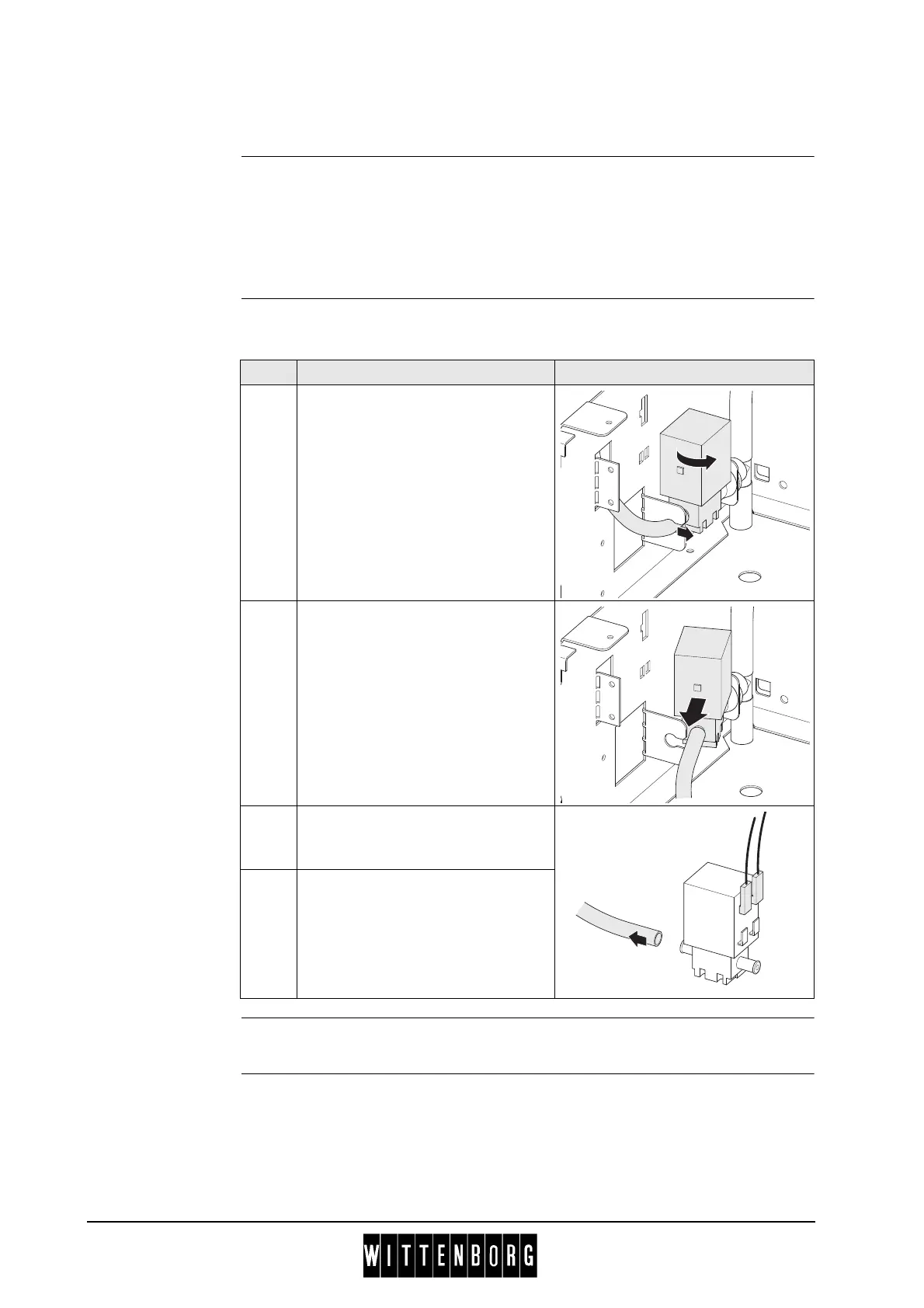

Step Action Illustration
1 Rotate the valve to release front
part from side mounting.
2 Pull valve out of silicone T-piece.
3 Disconnect the electrical plug
connections
4 Disconnect the dispensing valve
from the silicone hose.
