Service Manual FB 7100 Water System
January, 2005 5A - 3
Removal Follow these steps to remove cover:
Assembly Assembly is done in reverse order.
A.2.3 Draining water from the boiler
Preparation Before draining water from the boiler
• Open the door
• Switch off the main switch.
• Remove the coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
There is the danger of being scalded by hot water.

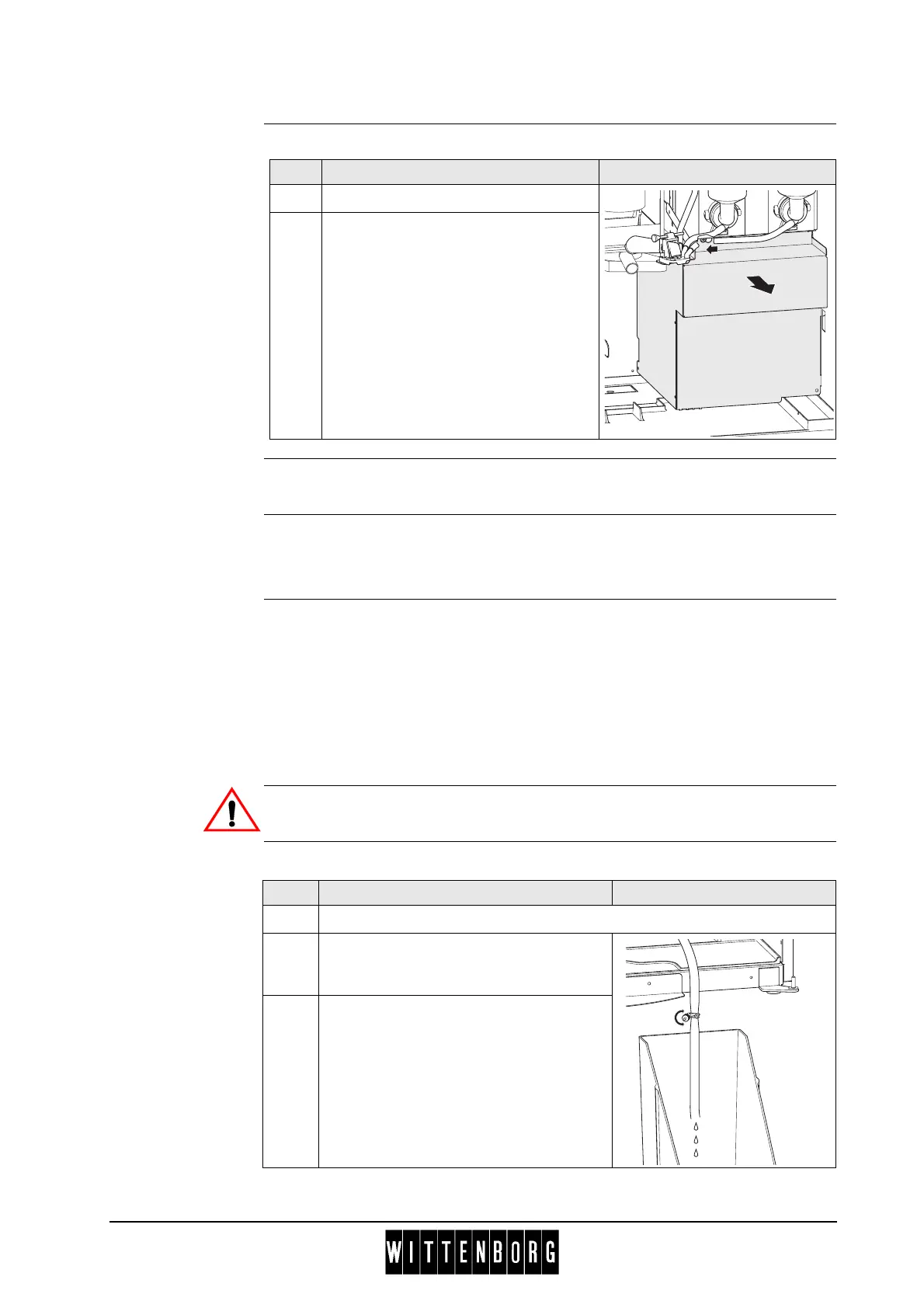

Draining the boiler Follow these steps to drain water from the boiler:
Step Action Illustration
1.
Loosen one screw.
2.
Pull cover to the left and lift it off.
Step Action Illustration
1.
Empty the waste bucket
2.
Pull the outlet drain out of the boiler and
place the outlet of the drainage hose in
the empty waste bucket
3.
Loosen the screw of the hose clamp
located on the drainage hose and let the
water drain completely from the boiler.
