K.2.6 Removing the relay for heating element
Preparation Before removing the relay for heating element
• Disconnect the power supply.
• Open the door
• Remove the freshbrewer unit, see chap. 5.B.3.2, page 5B-4.
• Remove cover plate for power supply box, FB print and CPU, see this
section, page 5K-3.
• Detach the power supply box, see this section, page 5K-4.
Ensure that the machine is disconnected from the mains electrical supply!
The machine is only isolated from the mains supply when the plug has
been pulled out.
Removal Follow these steps to remove the relay for heating element
Installation Installation is done in reverse order.
K.2.7 Removing the noise capacitor
Preparation Before removing the noise capacitor:
• Disconnect the power supply.
• Open the door
• Remove the freshbrewer unit, see chap. 5.B.3.2, page 5B-4.
• Remove cover plate for power supply box, FB print and CPU, see this
section, page 5K-3..
Ensure that the machine is disconnected from the mains electrical supply!
The machine is only isolated from the mains supply when the plug has
been pulled out.

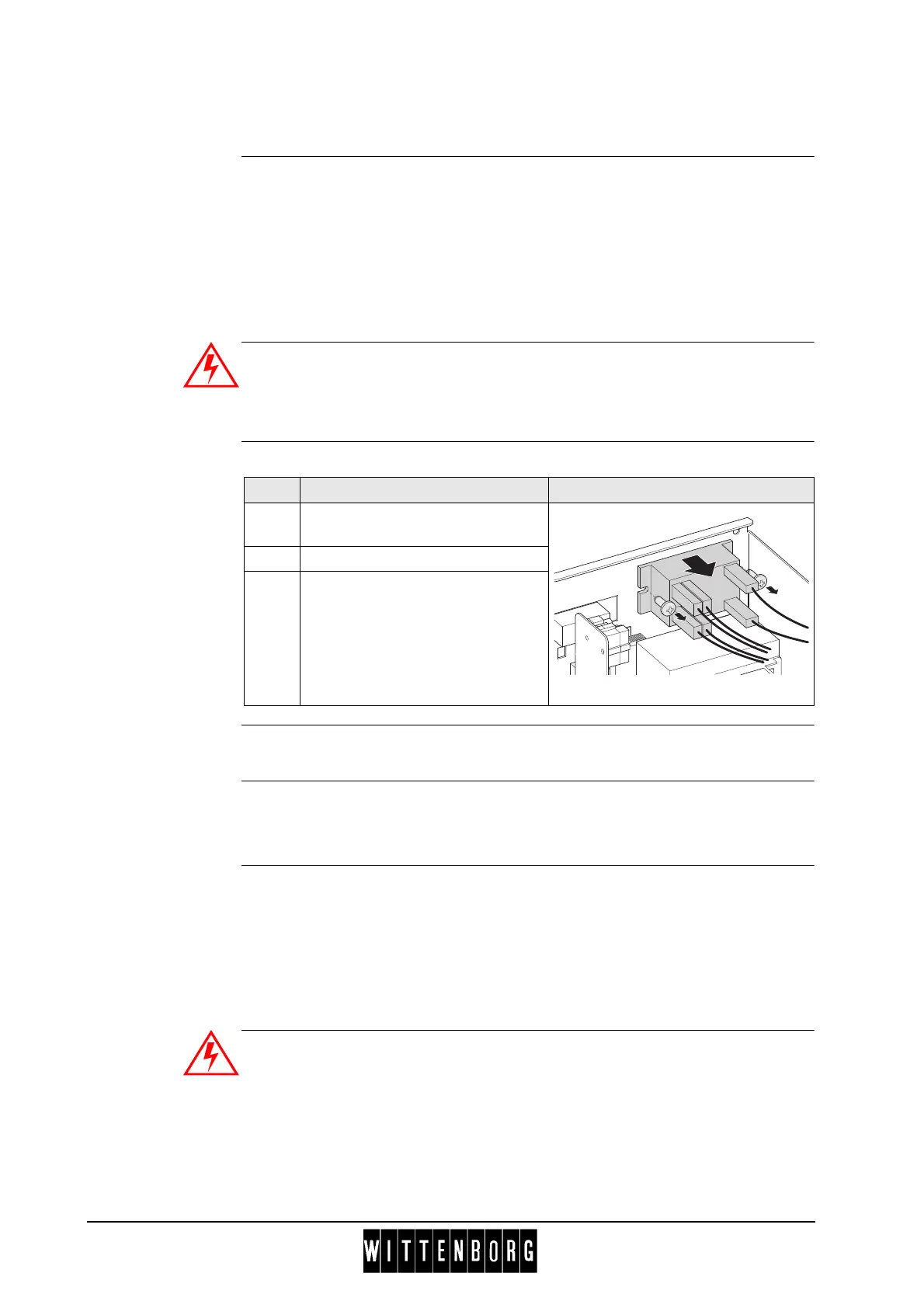

Step Action Illustration
1 Pull off the electrical connection
plugs.
2 Loosen two screws.
3 Remove relay.
