Service Manual FB 7100 Payment systems
January, 2005 5P - 3
P.2 (Dis-)assemblies

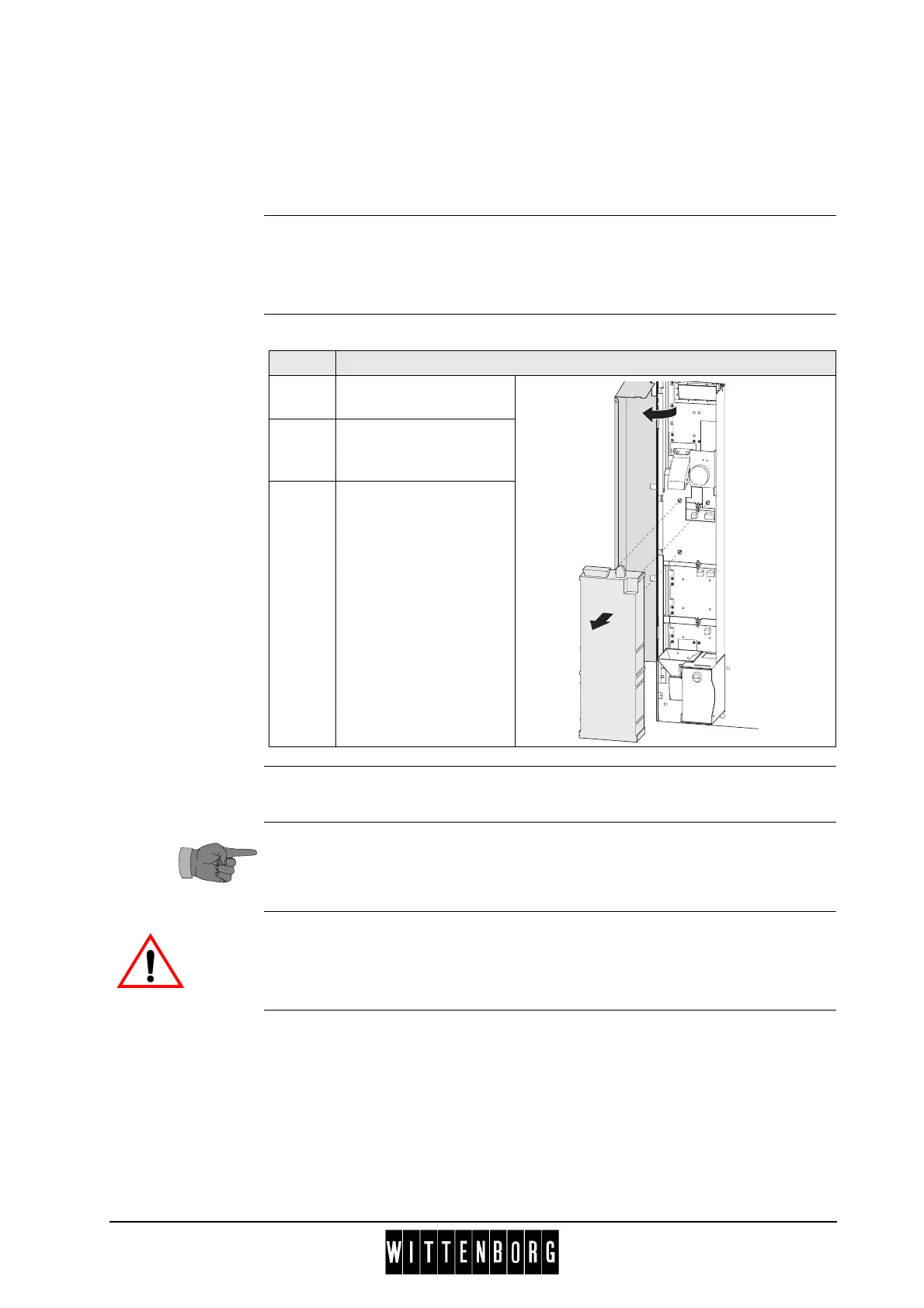

P.2.1 Removing the coin mechanism
Preparation Before removing the coin mechanism:
• Open the door.
• Switch off the main switch.
Removal Follow these steps to remove the coin mechanism:
Assembly Assembly is done in reverse order.
For more information concerning the coin mechanism refer to the informa-
tion of the manufacturer.
Never adjust the coin mechanism or disconnect the connecting cable to the
vending machine while the machine is carrying voltage.
Step Action
1 Swing cover for pay-
ment system open.
2 Disconnect electrical
connections to coin
mechanism.
3 Detach the coin mecha-
nism from the three
retaining screws.
