Service Manual FB 7100 Payment systems
5P - 4 January, 2005

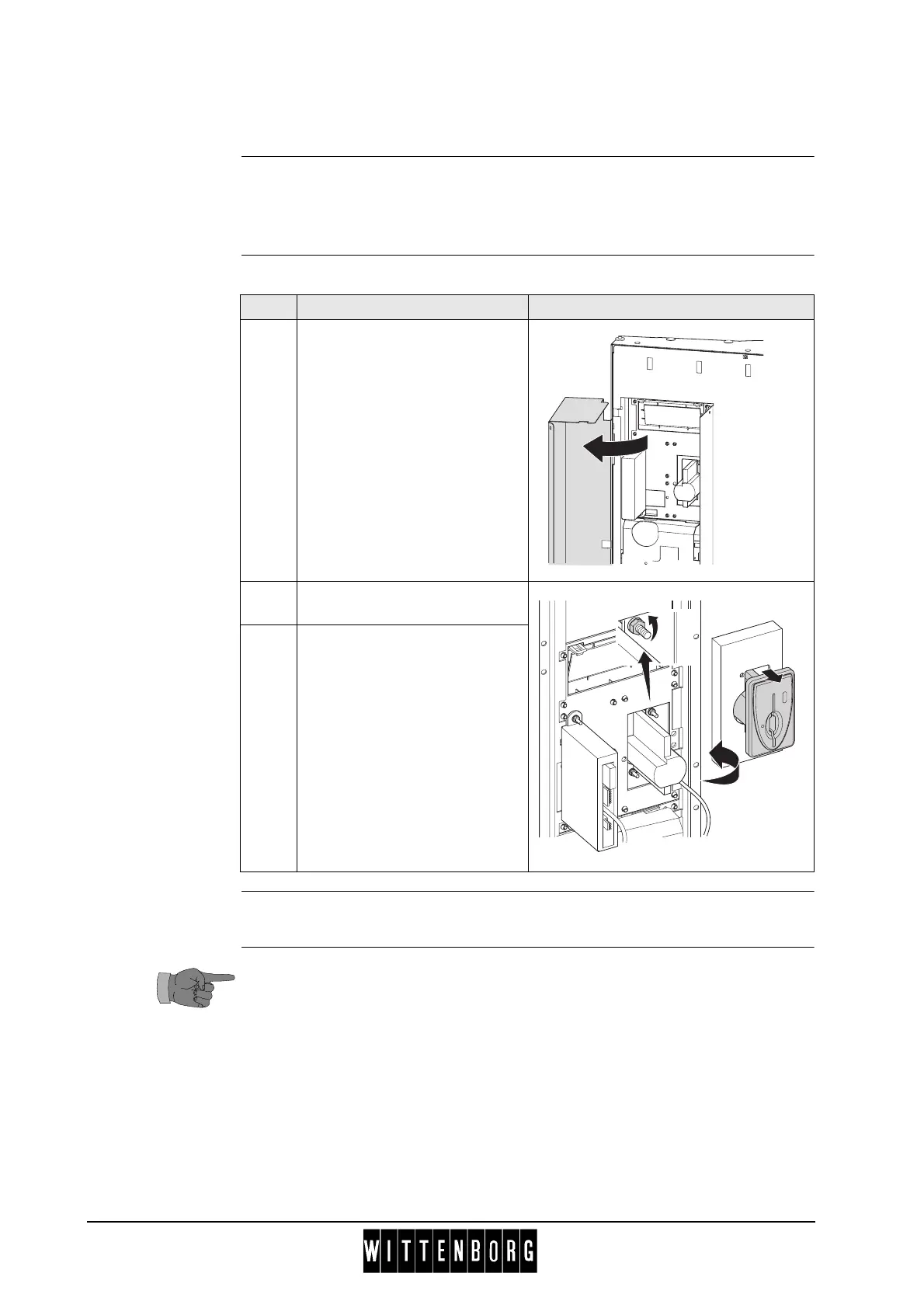

P.2.2 Disassembling the Zip card reader
Preparation Before disassembling the Card reader
• Open the door.
• Switch off the main switch.
Disassembly Follow these steps to disassemble the card reader:
Assembly Assembly is done in reverse order.
For more information concerning the card reader refer to the information
of the manufacturer.
Step Action Illustration
1 Swing cover for payment
system open.
2 Disconnect the electrical
connection to the card reader.
3 Remove two nuts and pull the
card reader out from the front
side of the machine.
