Service Manual FB 7100 Dosing System
5C - 6 January, 2005
C.2.5 Replacing a whipper motor
Preparation Before replacing a whipper motor
• Open the door
• Switch off the main switch.
• Remove the instant ingredient mixing unit in question, see this section,
page 5C-2.
Replacement Follow these steps to replace a whipper motor:
Installation Installation is done in reverse order.

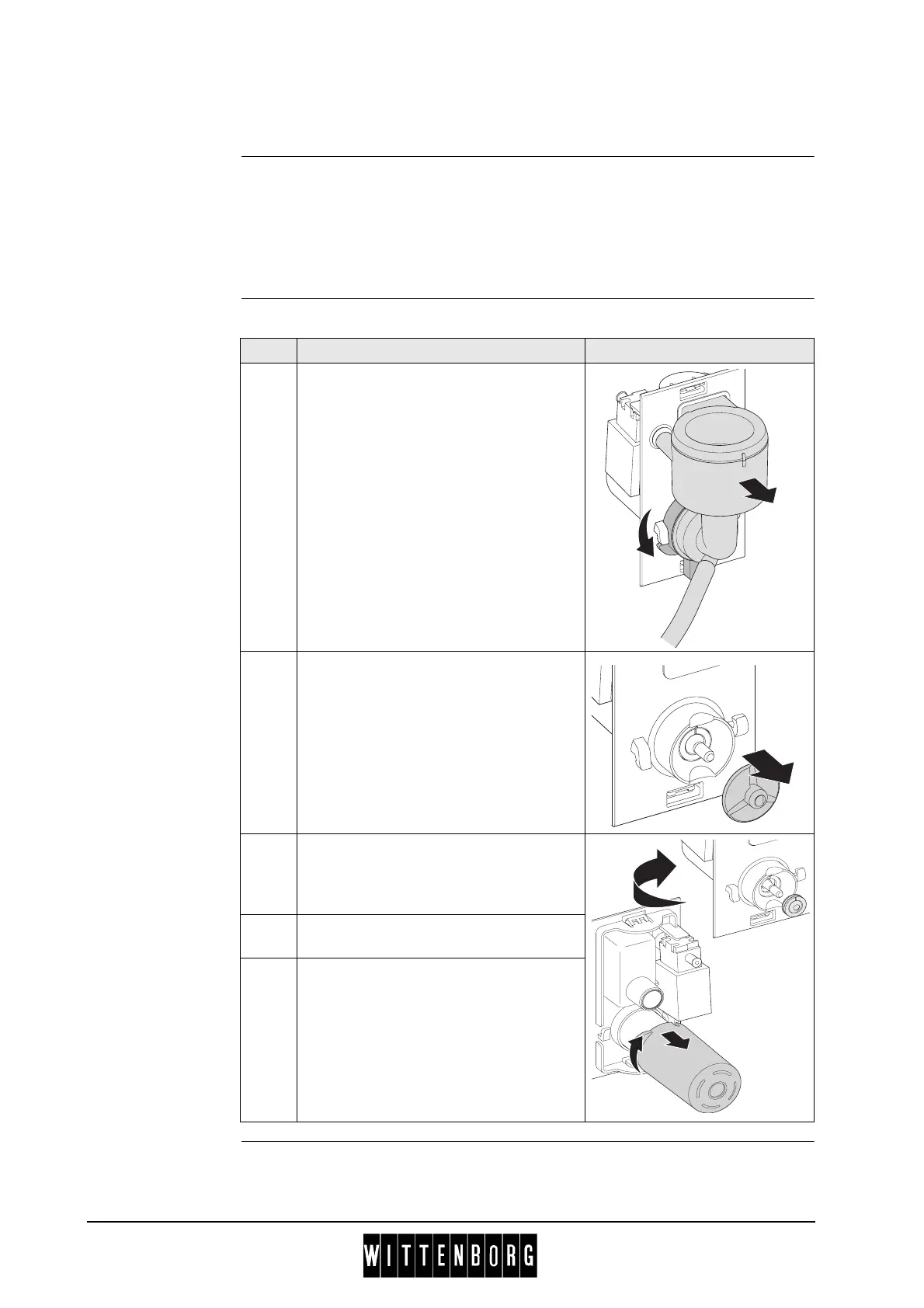

Step Action Illustration
1 Detach mixing funnel from mixing unit
by turning green locking ring
counterclockwise. Remove funnel.
2 Pull whipper wheel out of mixing unit.
3 Hold the mixing unit in one hand and
with the other turn the locking cover for
whipper motor clockwise to release
motor.
4 Remove motor from cover and replace
with new one, if necessary. (1)
5 Check axle seal for motor and replace, if
necessary.(2)
1
2
