Removing the suspension for ingredient canisters
Preparation Before removing the suspension for the instant ingredient canisters
• Open the door.
• Switch off the main switch.
• Remove the instant ingredient canisters, see Operator Manual.
Remember to close the outlet spouts of instant ingredient canisters before
removing canisters.
Removal of sus-
pension rail
Follow these steps to remove the suspension rail for instant ingredient can-
isters:
Installation Installation is done in the reverse order.

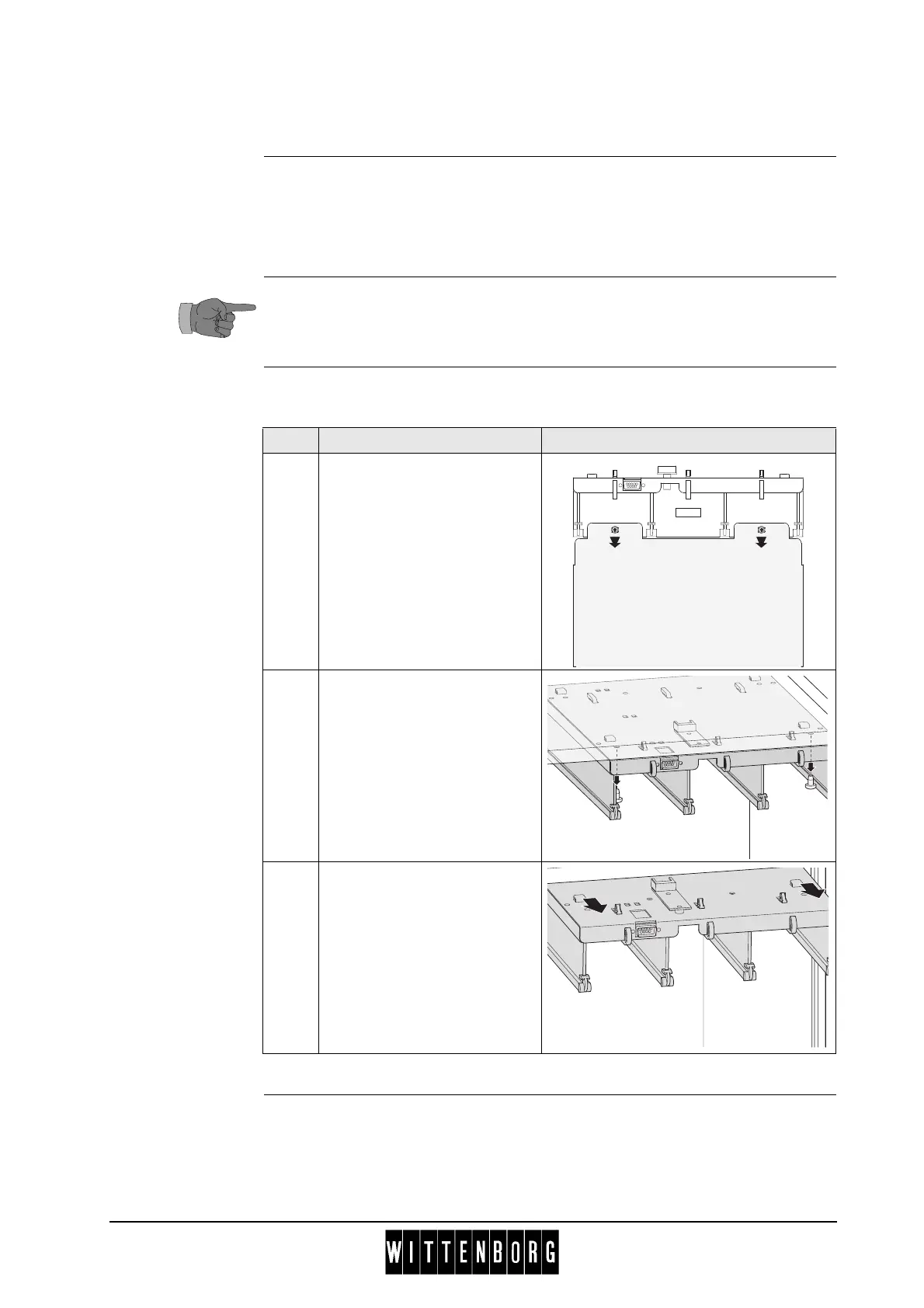

Step Action Illustration
1 Remove the two screws from
the rear cover behind the
canisters.
Remove rear cover.
2 Loosen and remove the two
screws in the bracket for
canisters.
3 Pull suspension rail forwards
and tilt it off the hooks.
