If the temperature sensor is not connected properly electrically, the heating
element will not be switched off as long as the machine is switched on
(boiling over).
A.2.7 Removing the overboil thermostat
Preparation Before removing the safety cut-out thermostat
• Open the door
• Switch off the main switch
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
Removal Follow these steps to remove the safety cut-out:
Installation Installation is done in reverse order.
A.2.8 Resetting the overboil thermostat
Preparation Before resetting the overboil thermostat
• Open the door
• Switch off the main switch.
• Remove coffee waste bucket and pull forward the base tray.
• Release distributor head and rest it on top of its mounting arm, see this
section, page 5A-2.
• Remove cover for water system, see this section, page 5A-2.
Resetting Press the reset button of the overboil thermostat.

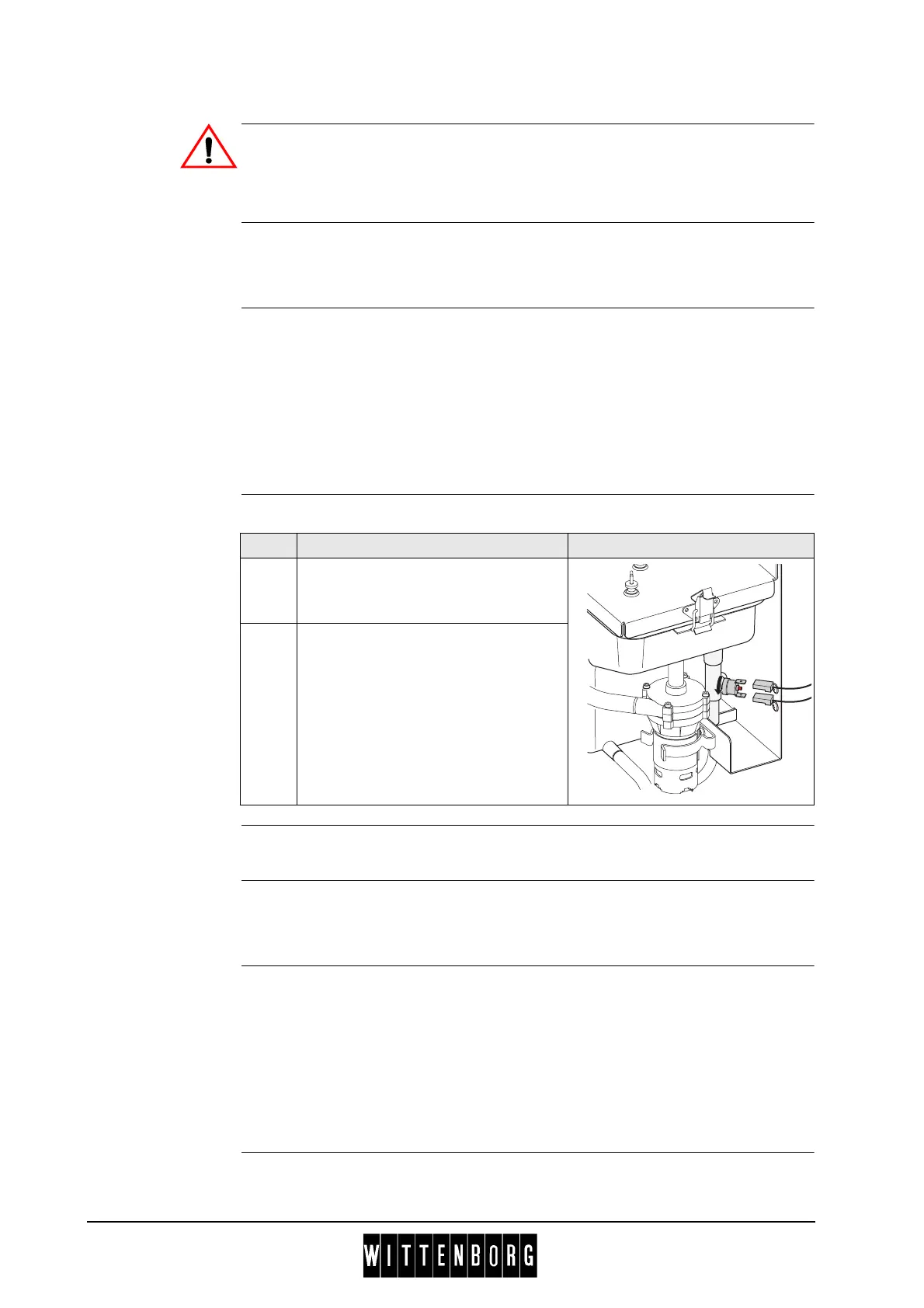

Step Action Illustration
1 Pull off the electrical connection.
2 Unscrew the overboil thermostat from
the overflow pipe.
