Service Manual FB 7100 Brewer System
January, 2005 5B - 27
B.3.17 Removing and decscaling the filter plate
The filter plate has to be descaled on a regular bases after approx. 1000 dis-
pensings (depending on the hardness of the water and the coffee type (oil)).
Preparation Before disassembling the filter plate
• Remove the filter plate roll holder (if fitted), see Operator Manual.
Disassembly Follow these steps to remove and descale the filter plate

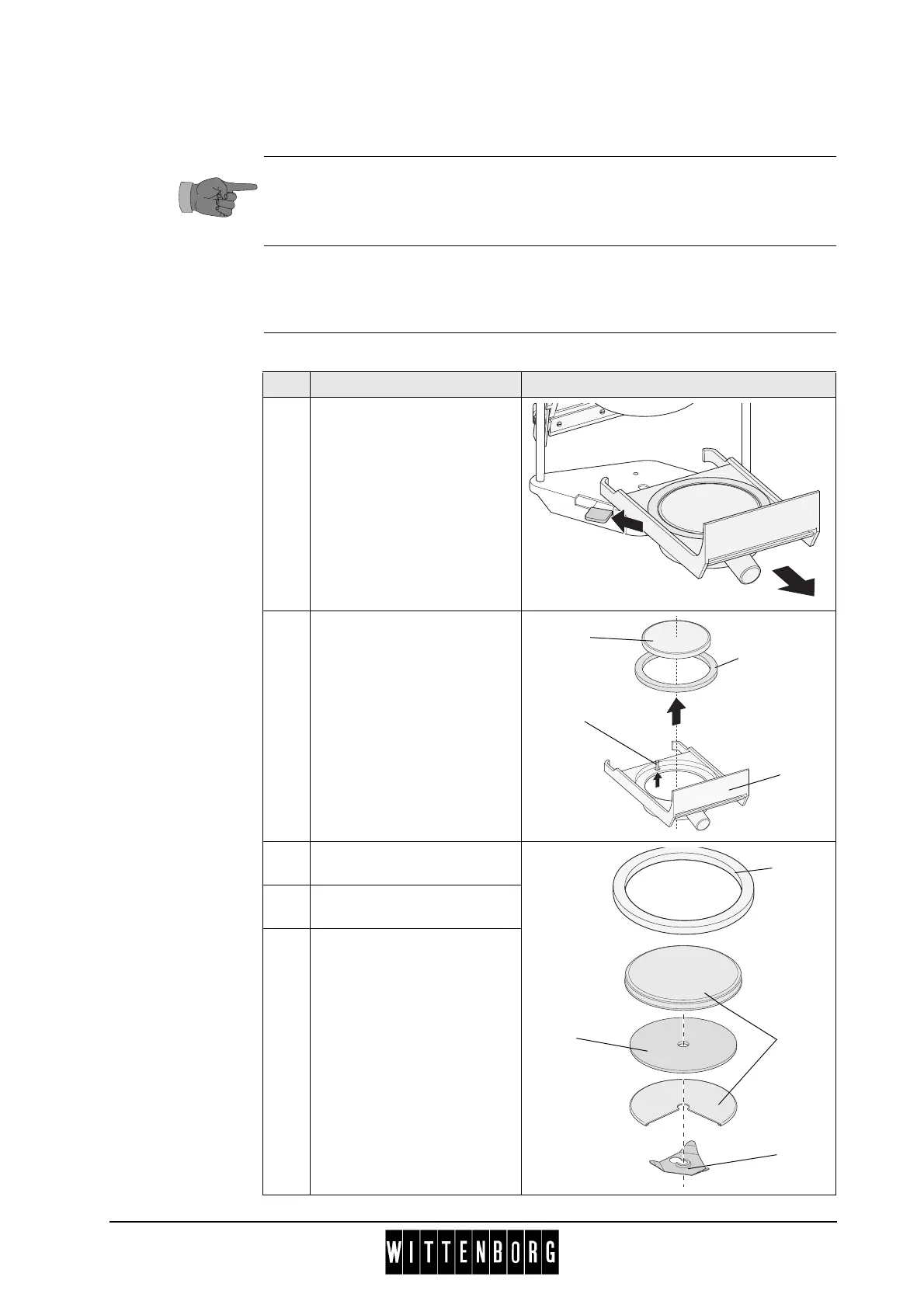

Step Action Illustration
1 Press the lock at the support
backwards and pull out the
filter plate holder.
Press out the sealing ring (2)
and the filter plate (3) by
means of the ejector pin (A)
of the filter plate holder (1).
2 Remove the tension plate (5)
from the filter plate.
3 Descale all metal parts of the
filter plate (3)
4 Clean the rubber sealing (4),
the sealing ring (2) and the
filter plate holder in hot
water.
2
3
A
1
2
5
3
4
