Service Manual FB 7100 Brewer System
January, 2005 5B - 31
Continued from previous page..
• Dosing of ingredients
• Extraction time
Note: The extraction time corresponds to the top-stop time set in the
programming.
• Dispensing of a drink
Continued...

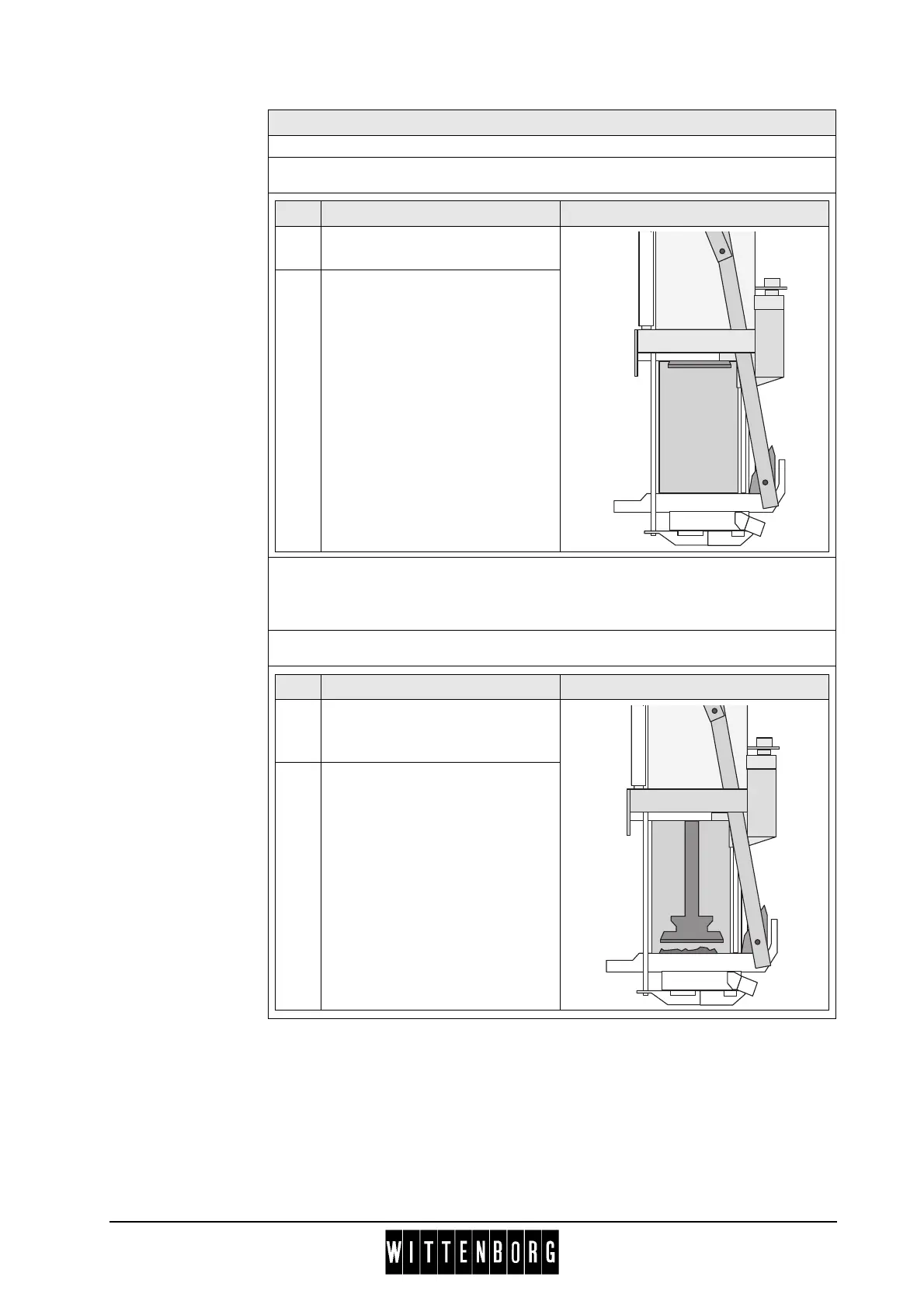

Phases
Stage Description of function Illustration
1 The dosing motor is driven and
the outlet valve dispenses water.
2 The water flushes the coffee
powder into the brewing
chamber.
Stage Description of function Illustration
1 The actuator motor descends the
plunger in the brewer cylinder via
the spindle.
2 The beverage is filtered through
the filter plate (1) and dispensed
into the cup via the outlet spout
(2).
