Service Manual FB 7100

5G - 6 January, 2005

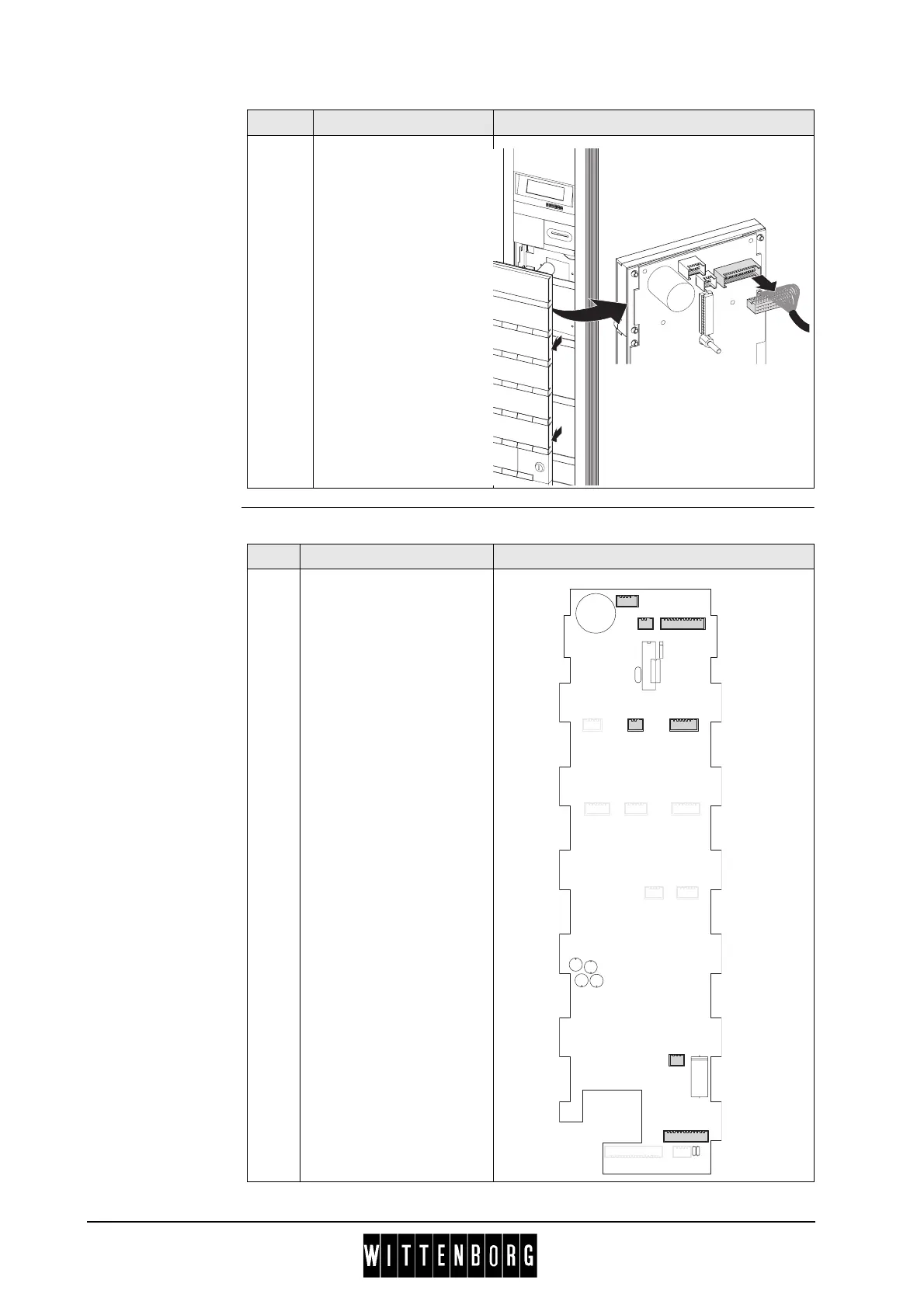

Installation Follow these steps to install the selection panel:

3 From the front side of

the door disconnect all

board connectors.

Step Action Illustration

1 From front of door

reconnect the board

connectors as follows:

P4: Power

P5: Wittlink

P22: Display

P24: Power for payment

system MDB/BDV

P25: Coin return

P31: Door light relay

P32: Cup sensor

Note: Ensure that

connectors for P5 and

P24 are not switched by

mistake as this may cause

fatal damage to all pcbs in

machine.

P23

P24

P25

P26 P27 P28

P29

P31

P34

P33

P32

P30

P22
