P
aper and other Me
dia
8-4
Xerox 4112/4127 Copier/Printer
User Guide
2.

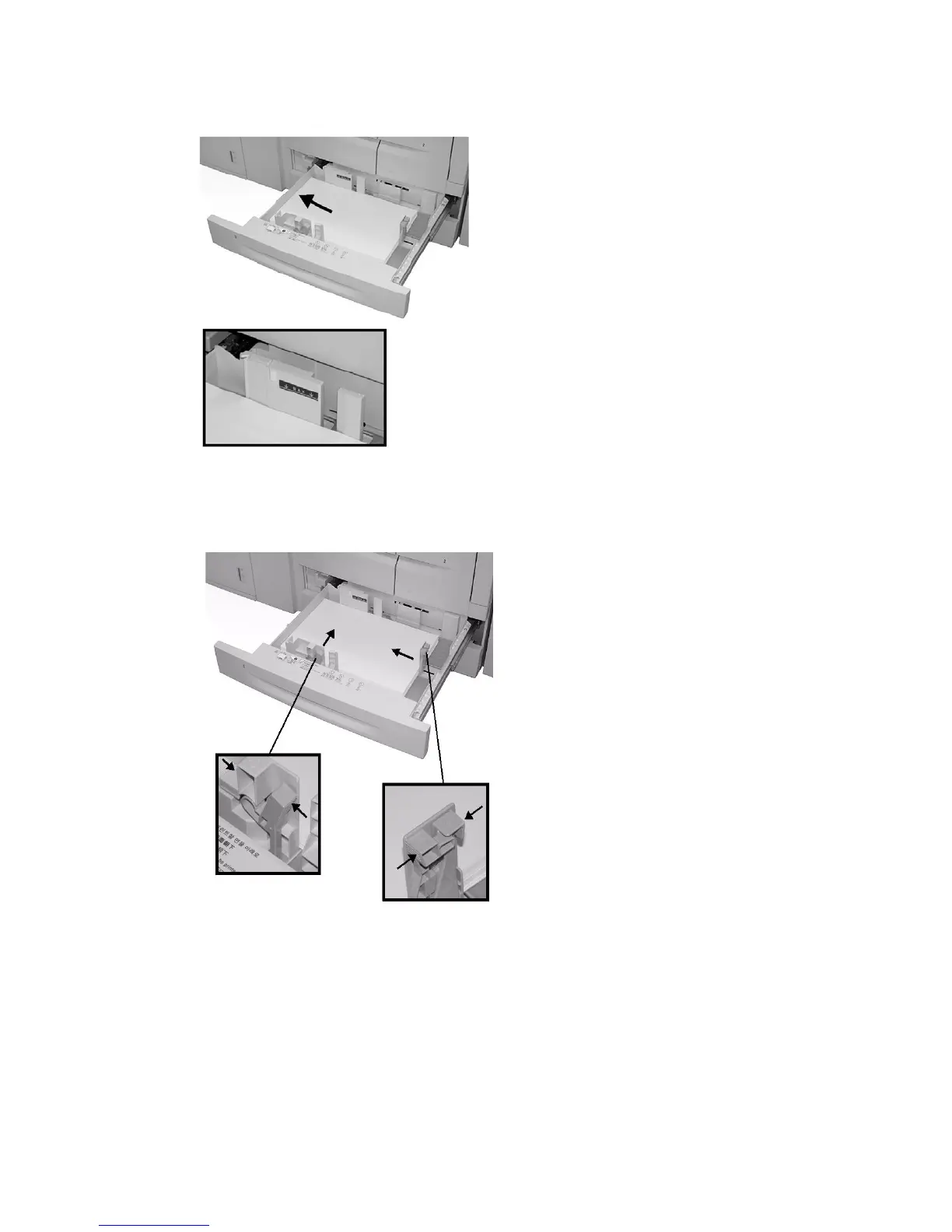

Load a
nd align
the edge
of the pa
pe
r agai
nst the left edge of the tr
ay.
Note
Do not load paper ex
ceeding the maximum fill li
ne.
3.
Squeeze the paper guide l
ev
ers (2) and adjust the
guides to match the size of your paper.
4.
Push the tra
y in gently
until it comes to a s
top.
215
217
