Addendum
Xerox 4112/4127 Copier/Printer 14-19
User Guide
3. Selecting the Tools tab
4. Selecting System Settings>Common Service Settings>Maintenance and
5. Selecting Decurler Setup
Preset Decurler settings
Your system is also designed with several automated presettings for controlling paper curl.
When using these settings, the machine automatically sets the amount of curl correction at the
Decurler. Therefore, if paper curl is a problem, use one of the preset Decurler settings in order to
eliminate the problem.
When the media passes through the decurler, you are notified of the current amount of curl
correction by-way-of the various LEDs on the Interface Module Control Panel. In addition to
Auto Decurler mode, you can manually select curl correction from the Interface Module Control
Panel.
Manual Decurler
The Manual Decurler mode has seven levels of curl correction available at the IM Control Panel:
three levels of Up-curl correction and three levels of Down-curl correction, plus a No correction
level.
The amount of curl correction is changed by selecting a related button. The current selected
amount of curl correction is displayed by the Control Panel LEDs.
Jam clearance
If a jam occurs, the machine stops printing and a message is displayed on the User Interface
(UI). Follow all instructions displayed completely and in the sequence shown.
Interface Module jams
Perform the following steps to clear the Interface Module jam and resume printing:
1. Open the Interface Module Front Cover.

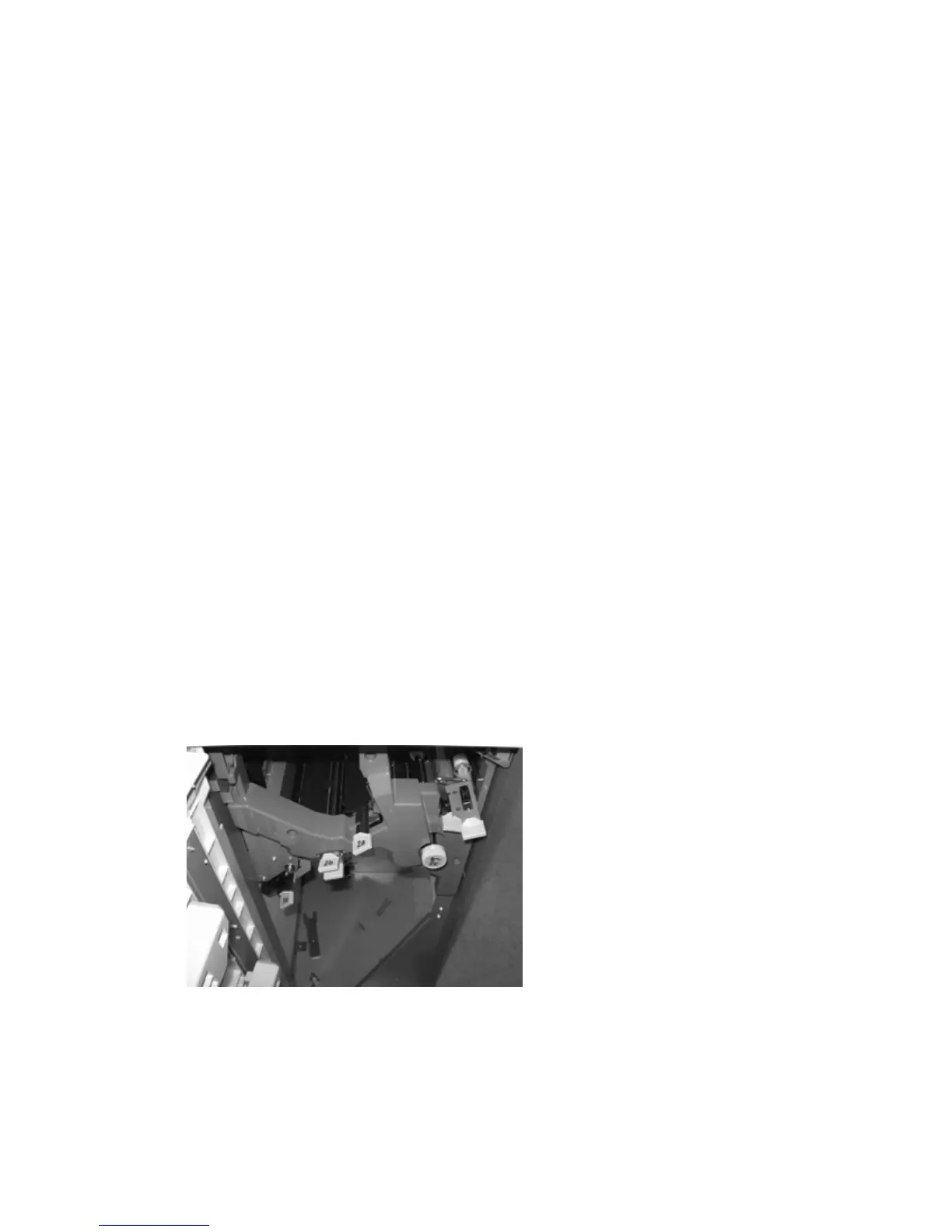

2. Lift the green handles and/or rotate the green knob and remove all jammed paper and
paper scraps.
3. Close the Interface Module Front Cover.
