Stored P
rogramming
7-6
Xerox 4112/4127 Copier/Printer
User Guide

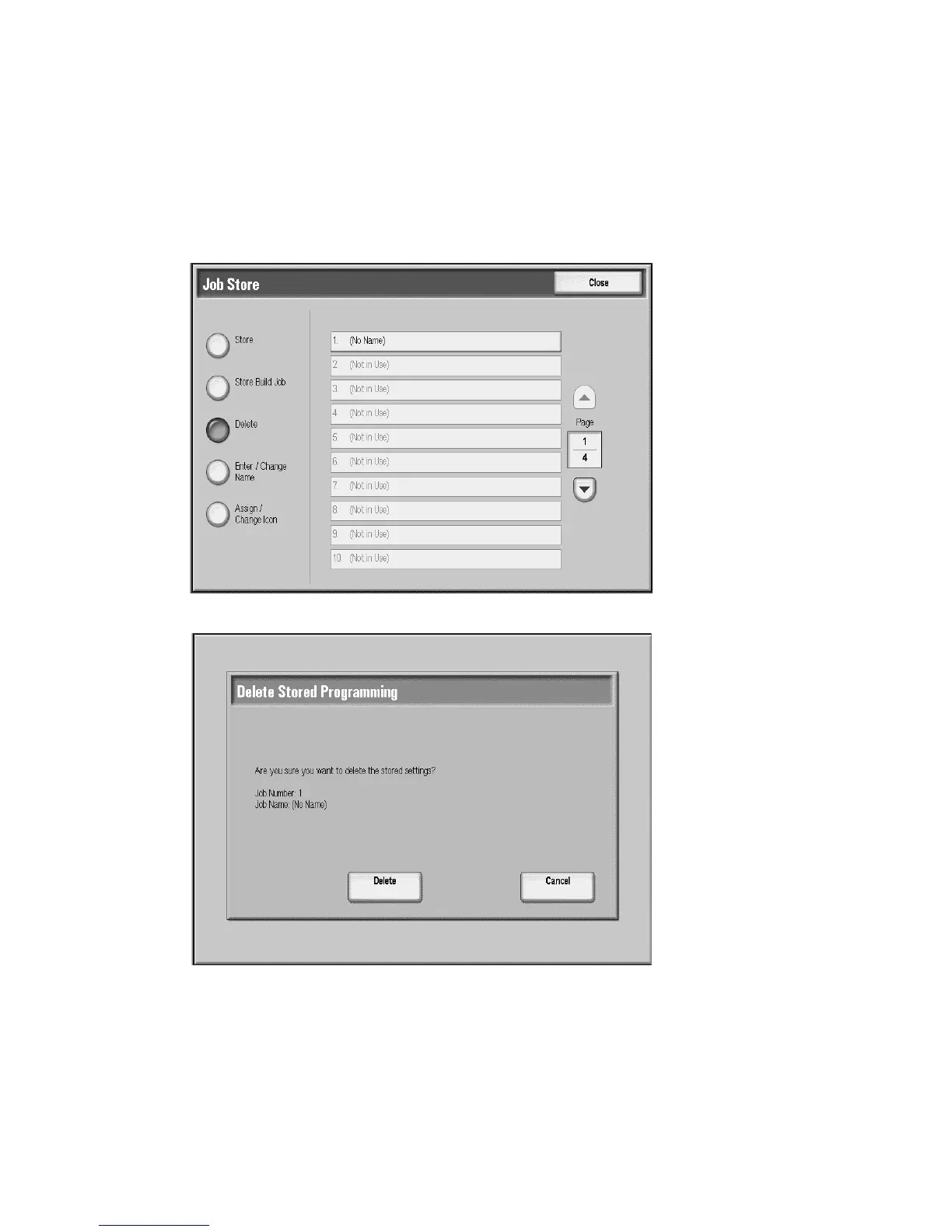

Deleting Stored P
rogr
ams
1.
P
ress th
e
Machine St
atus
button.
2.
F
rom the
T
ools
tab,
select
Stored P
rogr
amming
.
3.
Select
a.
Del
ete
b.
Select the S
tored
Pro
gr
am number y
ou want t
o delete
4.
Select
Ye
s
to con
firm Stored P
rogr
a
mming deleti
on.
5.
Select
Close
.
Note
Delet
ed Stored
P
rogr
ams canno
t be
restor
ed.
207
209
