Scan
Xerox 4112/4127 Copier/Printer
3-7
User Guide
E-mail R
ecipients
Y
ou c
an compile a list of e
-mail recip
ients usin
g

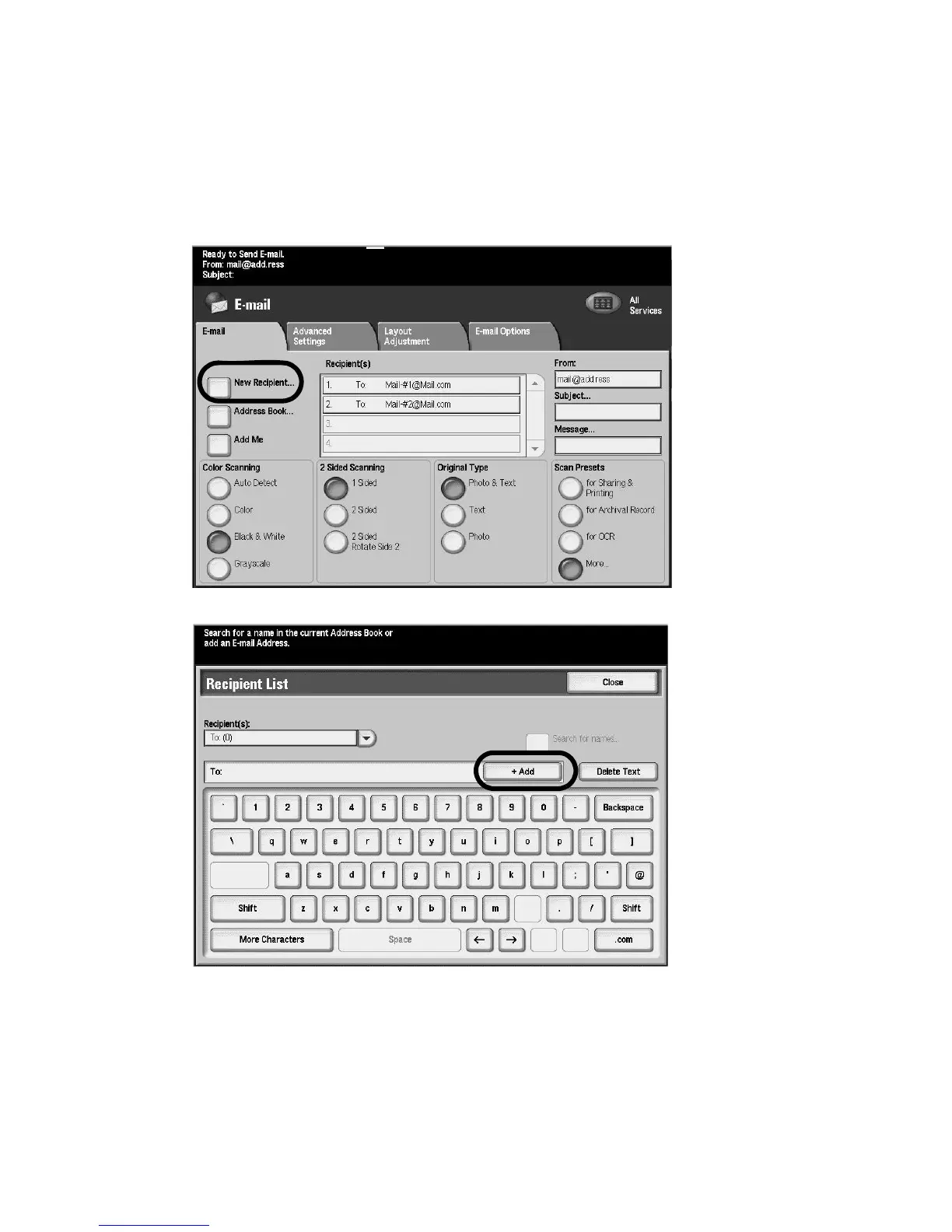

New Recipient
...
Adding E-mail R
e
cipients:
1.
F
rom the
E-ma
il
tab, s
el
ect
New Recipient..
.
2.
Enter the new recipient(s). Y
ou can sele
ct
+Add
to add ano
ther recipient.
3.
Select
Close
.
96
98
