Addendum
14-14
Xerox 4112/4127 Copier/Printer
User Guide
3.

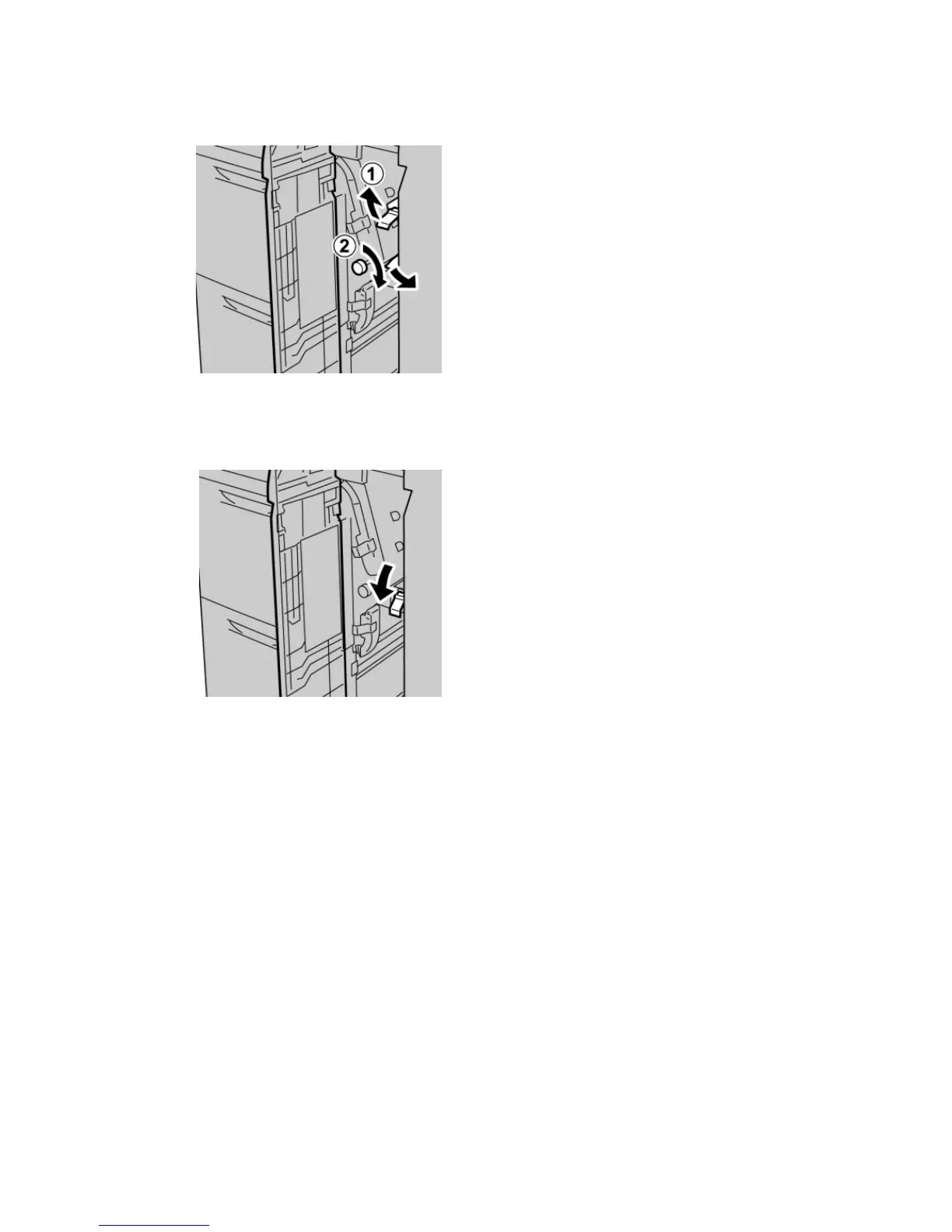

If the paper cannot be removed, turn the knob
1c
clockwise, and then remov
e the jammed
paper.
Note
If pa
per is
torn
, che
ck insi
de th
e mac
hine a
nd rem
ove it.
4.
R
eturn the lever
1d
to the original position.
5.
Close the front cov
er of the OHCF.
Note
If the f
ront cover of the OHCF is not completely closed, a message will appear and the machine
will n
ot operate.
403
405
