REP 8.15 Cutter Home Sensor
Parts List on PL 7.8
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Open the Cutter Drawer.
2. (Figure 1): Remove the Cutter Home Sensor.
Replacement
1. Center the Disc of the Cutter Drive Pulley in the
sensor during reassembly.
3
Rotate the sensor and
remove it
Cutter Drive
Pulley
2
Squeeze
the tabs
Disconnect the
connector

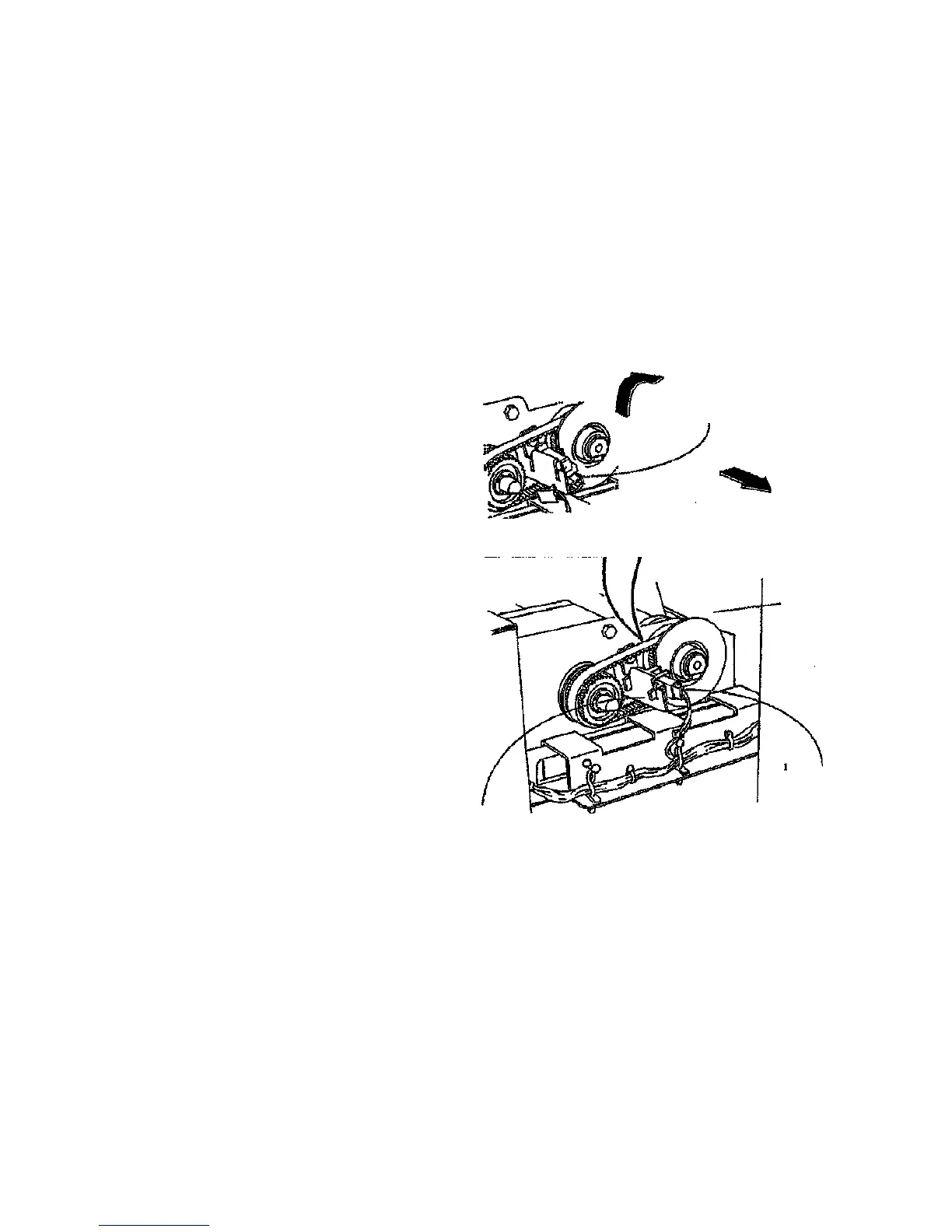

Figure 1. Removing the Cutter Home Sensor
REP 8.15
1/98
4-38
8830
To Next Page
