Xerox 8830 Service Manual

REP 7.5 Feed Clutch
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch.
Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the Feed Clutch.
6
Disconnect the
connector
2
Move the Motor Bracket to
relieve the tension on the
chain
Remove the
sprocket
1
Loosen the
screws (2)

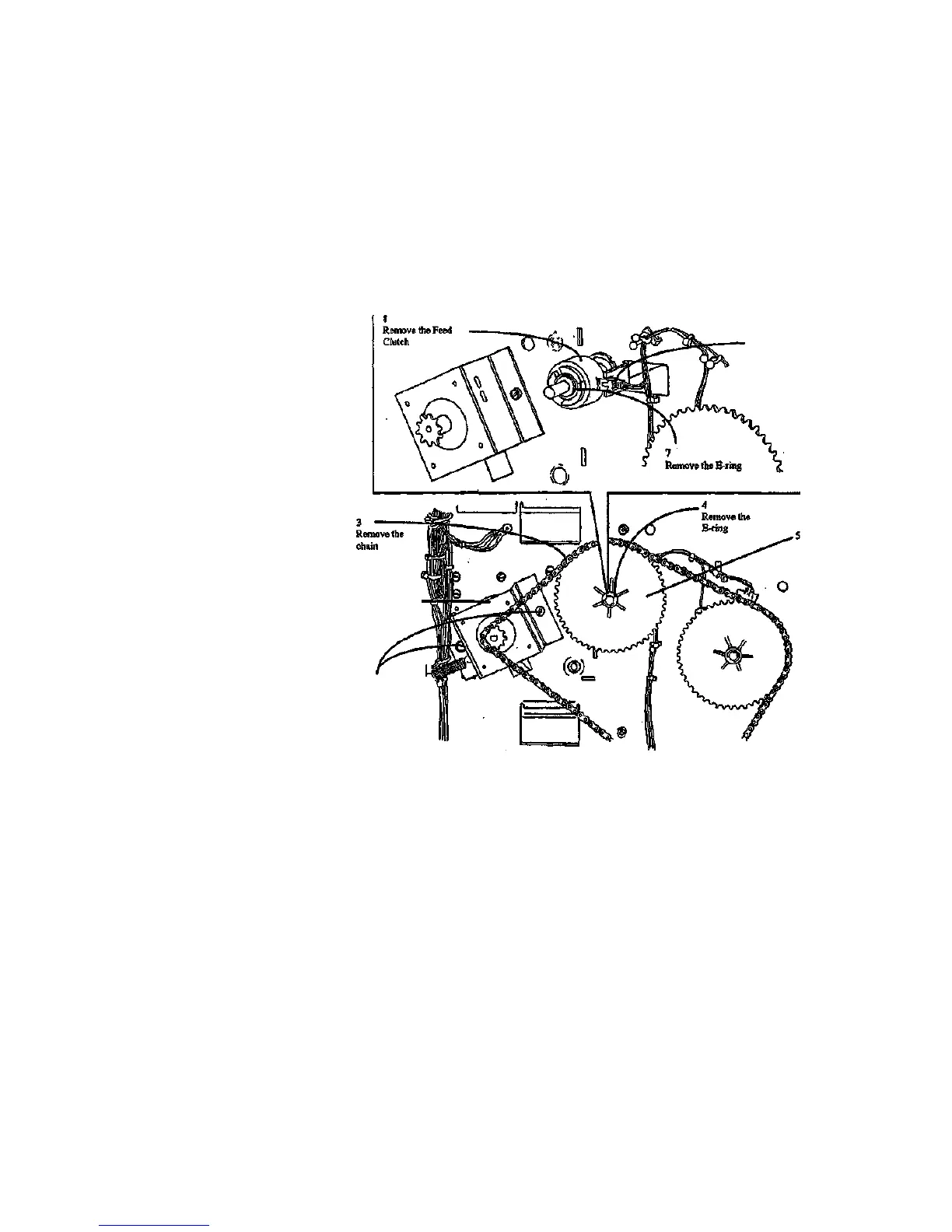

Figure 1. Removing the Feed Clutch
1/98
4-9
REP 7.5
R01811
