Xerox 8830 - REP 4.1.9 Right Top Cap

REP 4.1.9 Right Top Cap
Parts List on PL 14.1
Removal
WARNING
Switch off the Scanner and disconnect the Power
Cord.
1. Remove the Right Side Panel (REP 4.1.1).
2. (Figure 1): Remove the Right Top Cap.
CO
B
Loosen the 2
inner screws
C
Remove the 2
outer screws and
the Right Top
Cap
01036A-COB
A
Disconnect
Connector P2

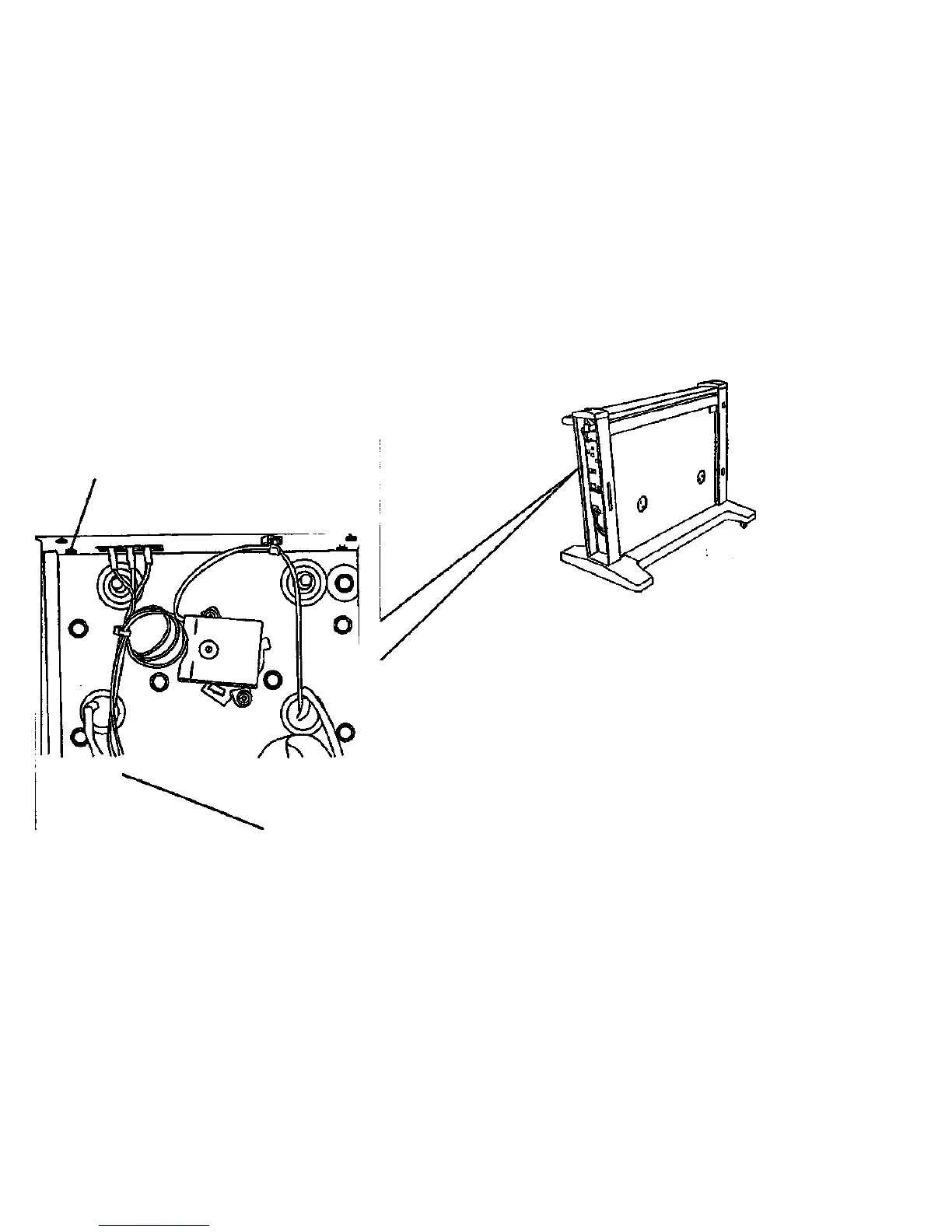

Figure 1. Removing the Right Top Cap
REP 4.1.9
4/97
4-14
7356 SCANNER
