Xerox 8830 Service Manual

REP 9.20 Image Module
Parts List on PL 9.3
NOTE: These are the instructions to install the
Image Module Assembly Kit 600K58760. The kit
contains the following:
• Image Module Assembly
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
1. Remove the Developer Module (REP 9.5).
2. Remove the Developer Baffle (PL 9.8).
3. Remove the following:
a. Rear Door (PL14.1)
b. Front Door (PL14.2)
c. Right Side, Left Lower Cover (PL 14.2)
d. Right Side, Right Lower Cover (PL 14.2)
e. Right Side, Left Cover (three screws, two
top, one bottom) (PL 14.2)
f. Right Side, Right Cover (three screws, one
top, two bottom) (PL 14.2)
4. Remove the High Voltage Power Supply (REP
3.2).
NOTE: In the following steps, cut cable ties as
necessary in order to remove the harness,
5. (Figure 1): Prepare to remove the Top Cover
(Front).
3
Remove
the Pin
NOTE: (Figure 2): Observe the way that the Top
Cover Pivot Pin engages the hole in the Interlock
Plate. This may be a difficult area during reassembly.
Interlock
Top Cover Pivot Pin Plate
(will be removed in
step 6)
Top Cover Pivot Pin
(will be removed in
step 6)
Release the
Cable

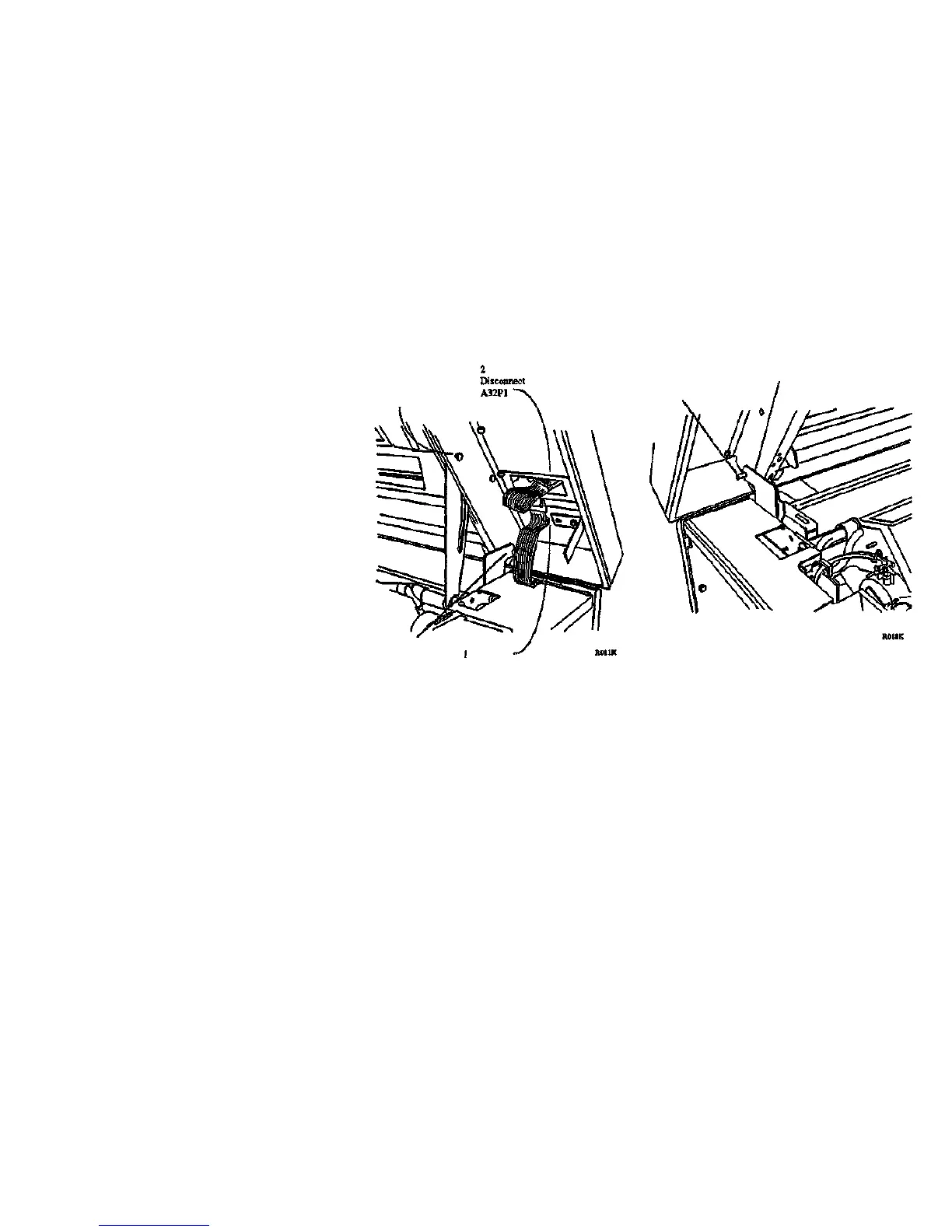

Figure 1. Preparing to Remove the Top
Cover (Front)
Figure 2. Top Cover Interlock Plate
6. Close the Top Cover, open the Developer
Module Cover, and remove the two pivot pins
shown in Figure 1 and Figure 2.
7. Close the Developer Module Cover and liftoff
the Top Cover, being careful to disengage the
small pin from the Interlock Plate.
REP 9.20
1/98
4-78
8830
