REP 3.2 High Voltage Power
Supply
Parts List on PL 1.3
WARNING
Switch off the Main Power Switch.
•Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the High Voltage Power
Supply.
Replacement .
1. If a new High Voltage Power Supply is being
installed, perform the Electrostatic Series
(ADJ 9.2).
7
Pull the HVPS
off the pins
Remove the three screws
(7 mm hex head)
Disconnect the Grid
wire
4
Disconnect the
Charge Scorotron
3
Disconnect the Transfer
Corotron wire (small
connector)
2
Disconnect the Detack
Corotron wire (large
connector)
Disconnect A25P1

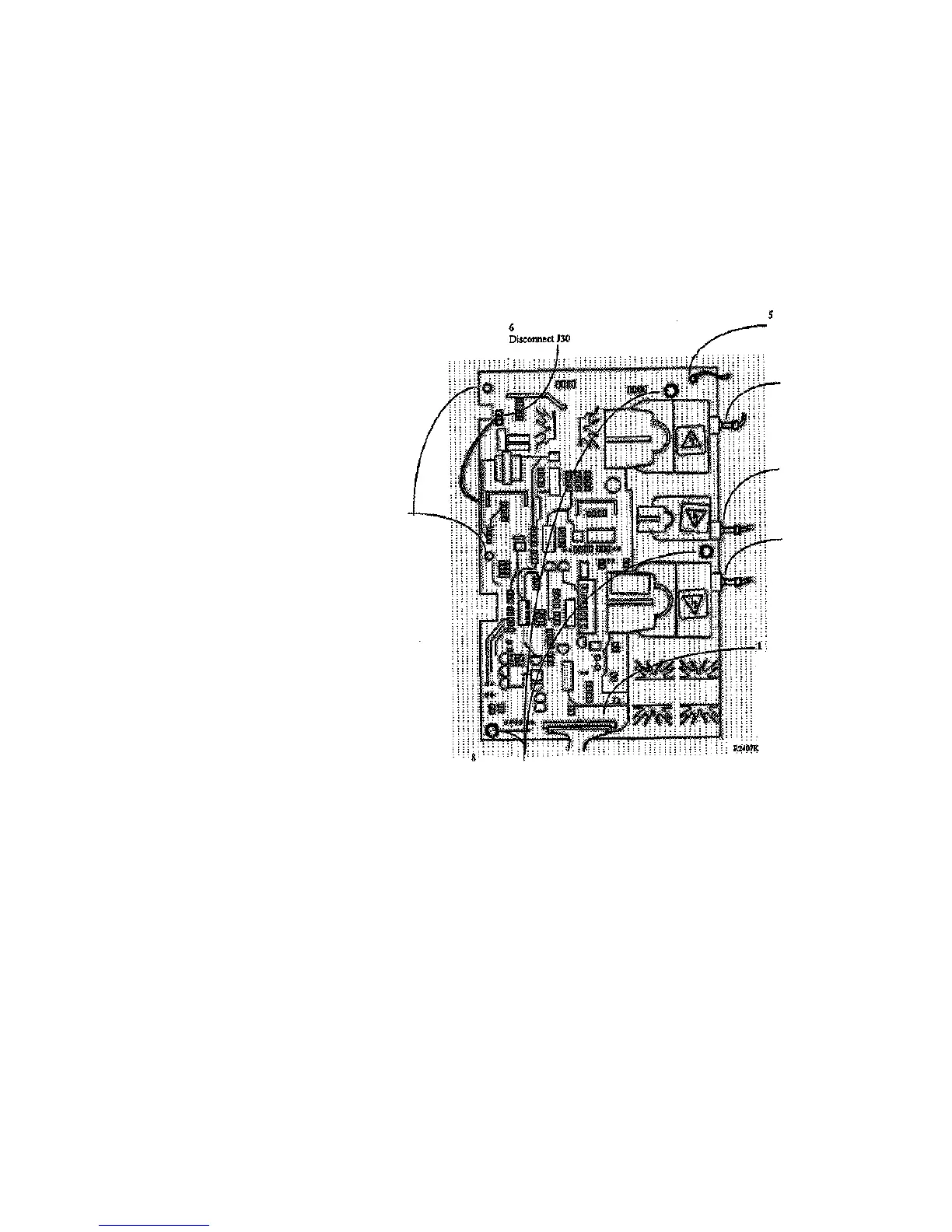

Figure 1. Removing the High Voltage Power Supply
REP 3.2
1/98
4-4
