Xerox 8830 Service Manual

REP 8.7 Sheet Pinch Rolls
Parts List on PL 8.3
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service
Position (REP 9.2).
2. Remove the Media Transport Assembly (REP
8.1).
3. Remove the Fabric Guide (REP 8.9).
4. Remove the Pressure Plates (REP 8.5).
5. Turn the Media Transport over.

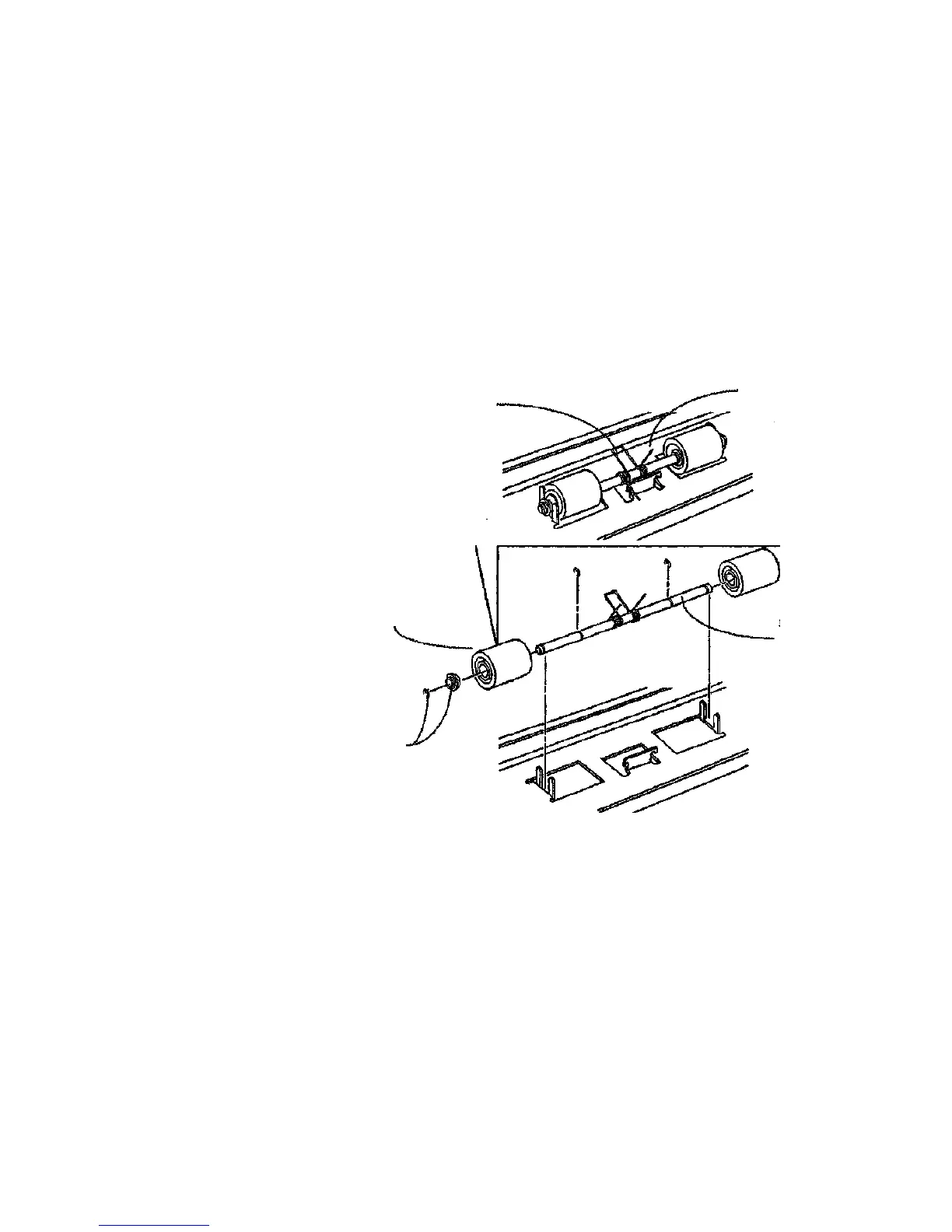

6. (Figure 1): Remove the Sheet Pinch Rolls.
Remove the spring
from under the edge
of the channel
Unlatch the spring
(both ends)
Remove the Sheet Pinch
Rolls (one each end)
. Remove the Sheet Pinch
Roll Assembly
Remove the E-rings and
bearings (one each end)
Figure 1. Removing the Sheet Pinch Rolls
REP 8.7
1/98
4-26
8830
4
5
R2439
