REP 8.6 Sheet Drive Roll

Parts List on PL 8.3

WARNING

Switch off the Main Power Switch. Disconnect the

Power Cord.

NOTE: The art used for this procedure was

developed for previous products and may not match

the 8830 configuration exactly.

Removal

1. Latch the Xerographic Module at the Service

Position (REP 9.2).

Remove the Media Transport Assembly (REP

8.1).

Remove the Fabric Guide (REP 8.9).

Remove the Pressure Plates (REP 8.5).

Remove the Cut Sheet Media Feed Clutch (REP

8.4).

(Figure 1): Remove the Timing Belt and the

bearings.

(Figure 2): Remove the Sheet Drive Roll.

Remove the Sheet Drive

Roll

1 1

Remove the E-ring and

pulley (not shown

Remove the Pulley Clutch

and Timing Belt

Remove the E-ring, Drag

Brake, E-ring, and bearing

at the opposite end of the

Sheet Drive Roll (not

shown)

Remove the E-ring

and hearing

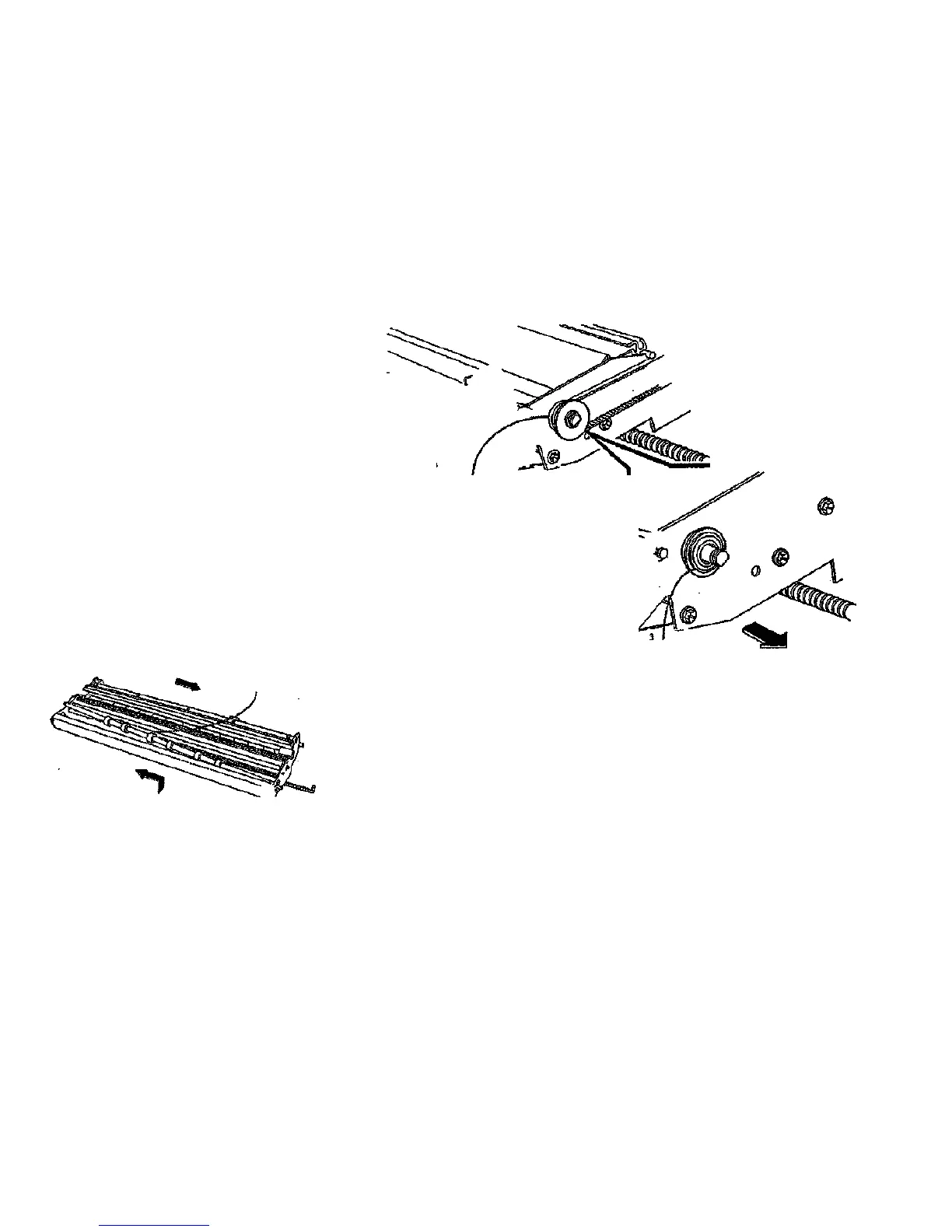

Figure 1. Removing the Bearings

Figure 2. Removing the Sheet Drive Roll

1/98

4-25

REP 8.6

Xerox 8830 Service Manual
