REP 7.6 Rewind Clutch
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch.
Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the Rewind Clutch.
3
Remove the
chain
2
Move the Motor
Bracket to relieve the
tension on the chain
r
Loosen the
screws (2)
Remove the
sprocket
Remove the
E-ring

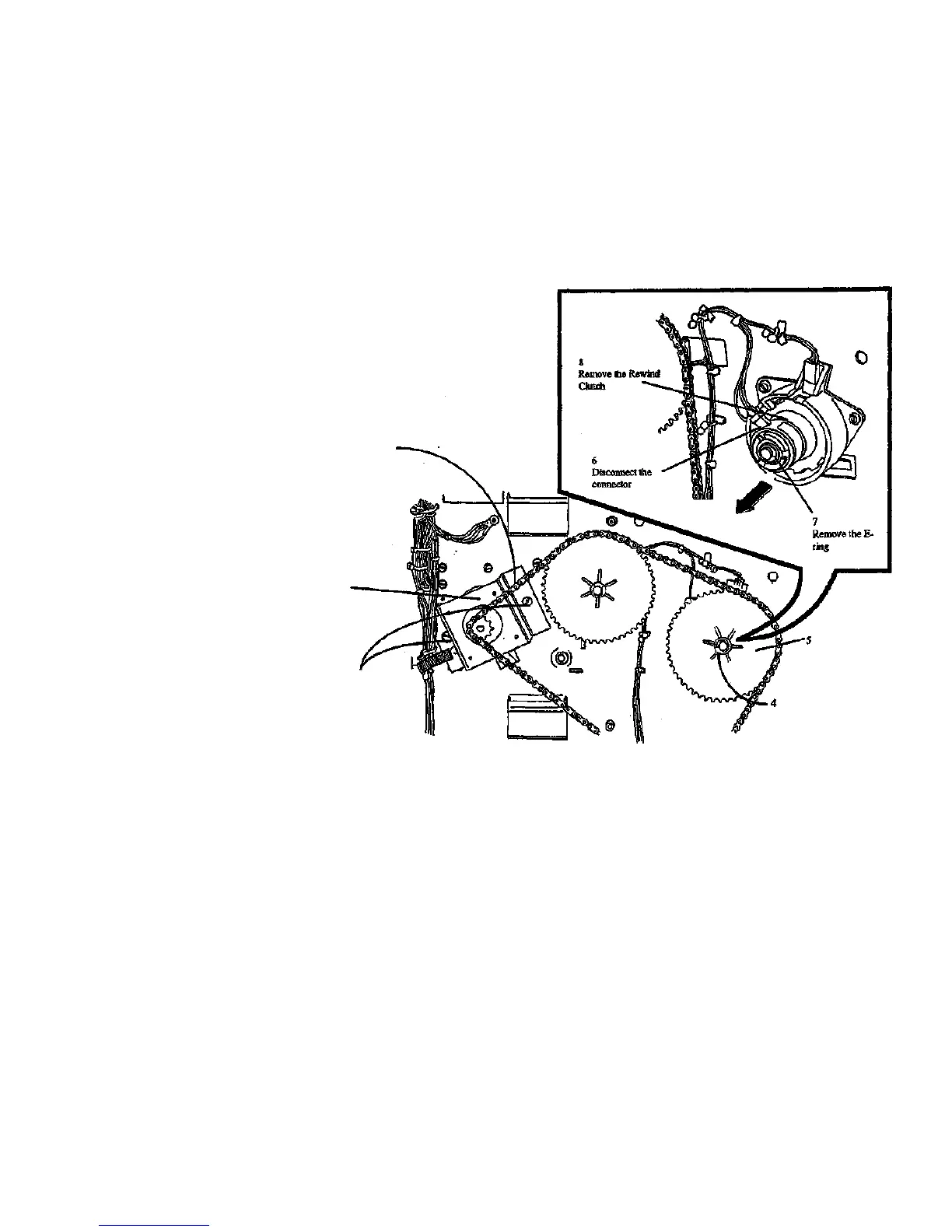

Figure 1. Removing the Rewind Clutch
REP 7.6
1/98
4-10
8830
