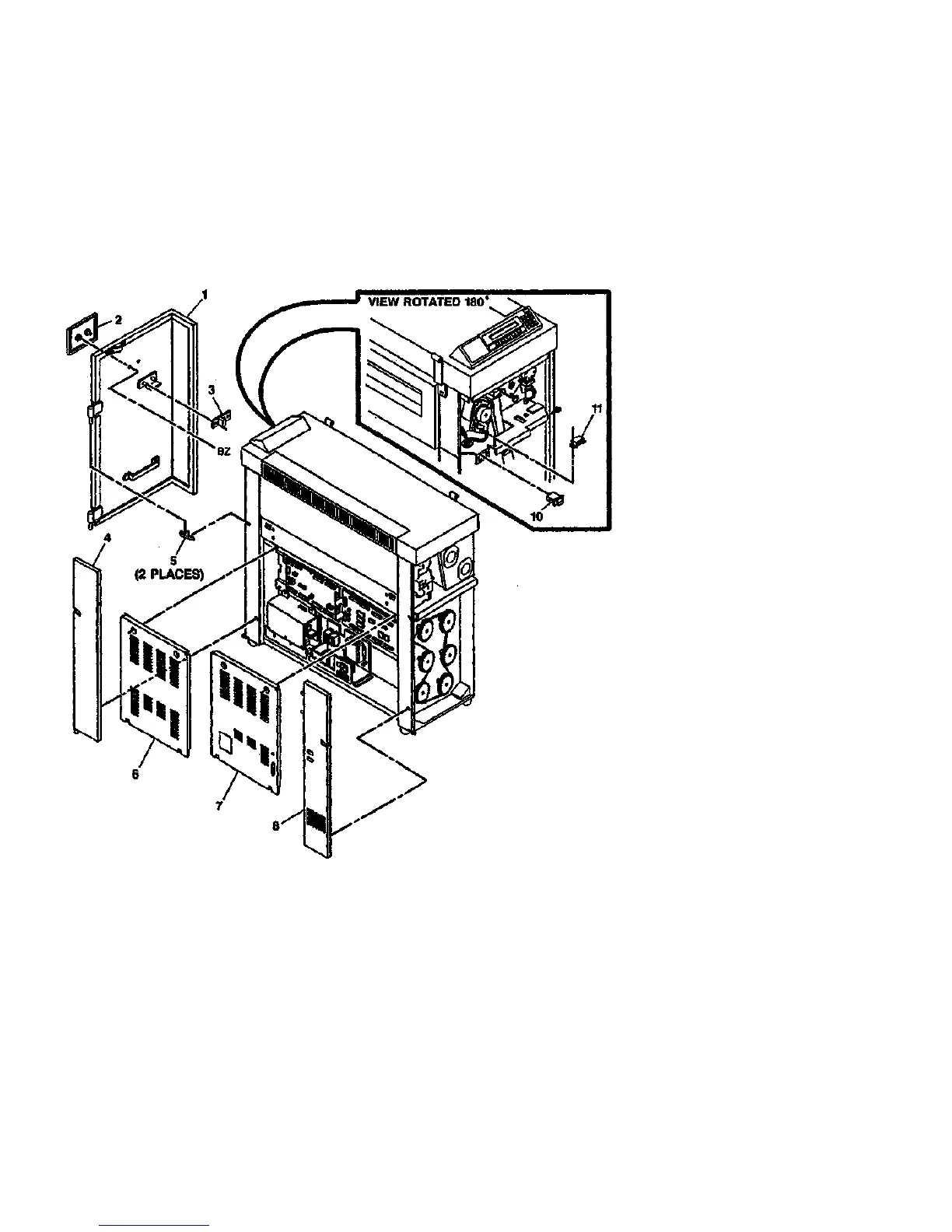

PL 14.2 FRONT DOOR AND RIGHT SIDE COVERS
9 {3,11
EM
1
2
3
4
5
6
7
8
9
10
11
PART
48K58181
891E9080
48K47710
14E20551
48K47681
48K47692
48K44401
3E18740
110E2640
DESCRIPTION
FRONT DOOR COVER
LOGO PLATE
KEEPER (P/O ITEM 9)
RIGHT SIDE, LEFT COVER
RIGHT HINGE SPACER
RIGHT SIDE, LEFT
LOWER COVER
RIGHT SIDE, RIGHT
LOWER COVER
RIGHT SIDE, RIGHT COVER
FRONT DOOR LATCH
ASSEMBLY
FRONT DOOR COVER
INTERLOCK SWITCH
LATCH (P/O ITEM 9)
0000034A-RNO
8830
2/97
5-37
PARTS LIST SECTION
