REP 9.3 Drum
Parts List on PL 9.2
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
Removal
NOTE: When the Drum is replaced, install a Cleaner
Blade Kit (REP 9.4).
1. Remove the Drum Assembly (REP 9.2).
2. (Figure 1): Carefully place the Drum Assembly,
Gear Box down, in a safe place on the floor.

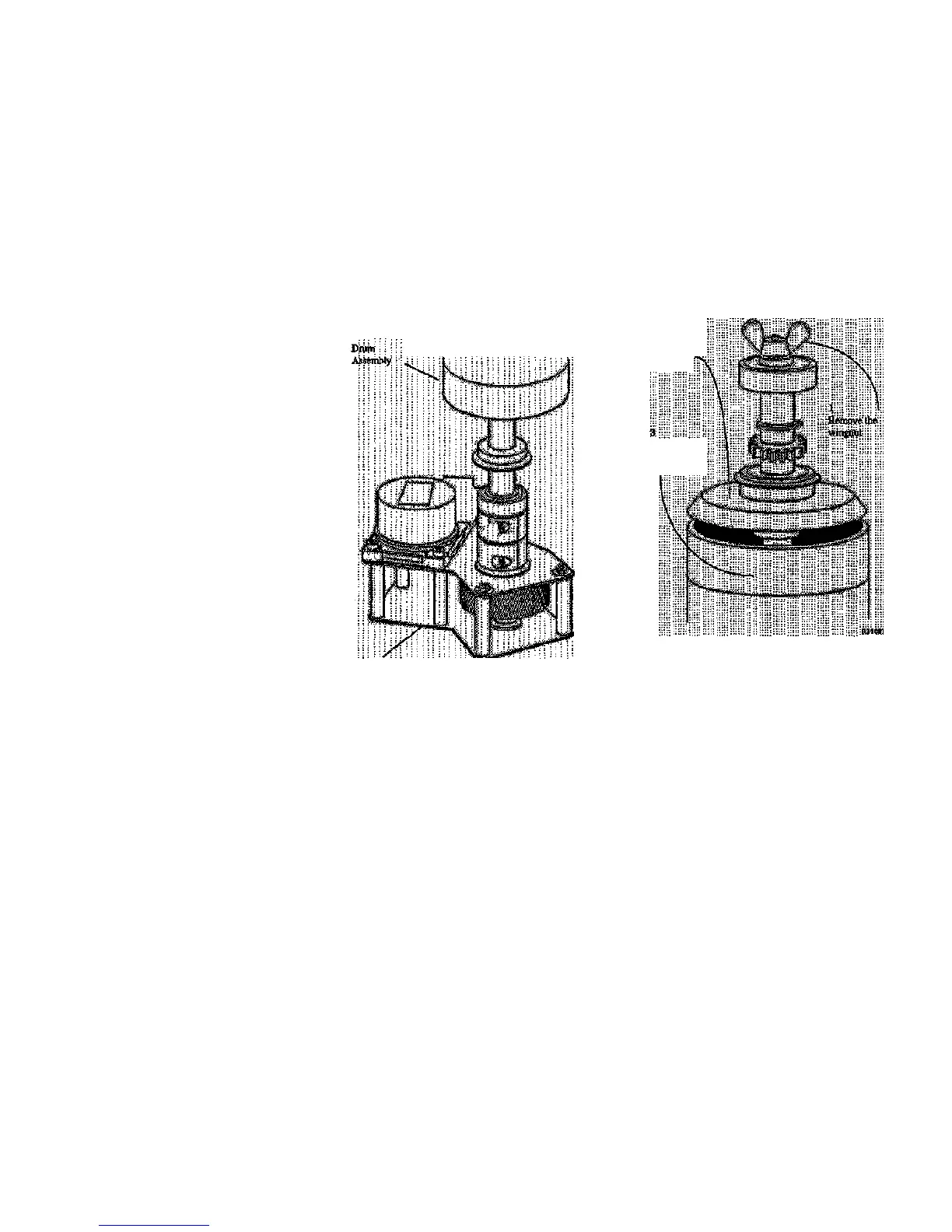

Figure 1. Securing the Drum Assembly
3. (Figure 2): Remove the Drum from the Shaft
Assembly.
2
Lift off the
Bearing/Plate
Assembly
lift the Drum
off the Shaft
Assembly
Figure 2. Removing the Drum from the
Shaft Assembly
4. If the Drum is being replaced, install a Cleaner
Blade Kit (REP 9.4).
5. Reassemble the Drum Assembly.
6. Perform GP4 Drum Cleaning Enhancement
procedure.
7. Reinstall the Drum Assembly.
8. Perform the Electrostatic Series (ADJ 9.2).
8830
1/98
4-49
REP 9.3
