REP 4.1.7 Edge Registered Sensor
Parts List on PL 5.1
Removal
WARNING
Switch off the Scanner and disconnect the Power
Cord.
1. Remove the Exposure Lamp (REP 4.1.3).
2. Remove the Platen Glass (REP 4.1.5)
3. (Figure 1): Prepare to remove the Edge Registered Sensor.
4. (Figure 2): Remove the Edge Registered Sensor.
NOTE: The string will be used to pull the sensor cable back through
the channel during reinstallation of the sensor.
Channel
B
Disconnect
Connector P6
A
Attach a string
at least 30 in.
(76 cm) long
to the sensor
cable
B
Remove the
two screws
Edge
Registered
Sensor
c
Remove the
sensor and cable.
91042A-COB
Cover the optical path slot
with paper to prevent the
screws from falling into the
scanner
001044A-COB

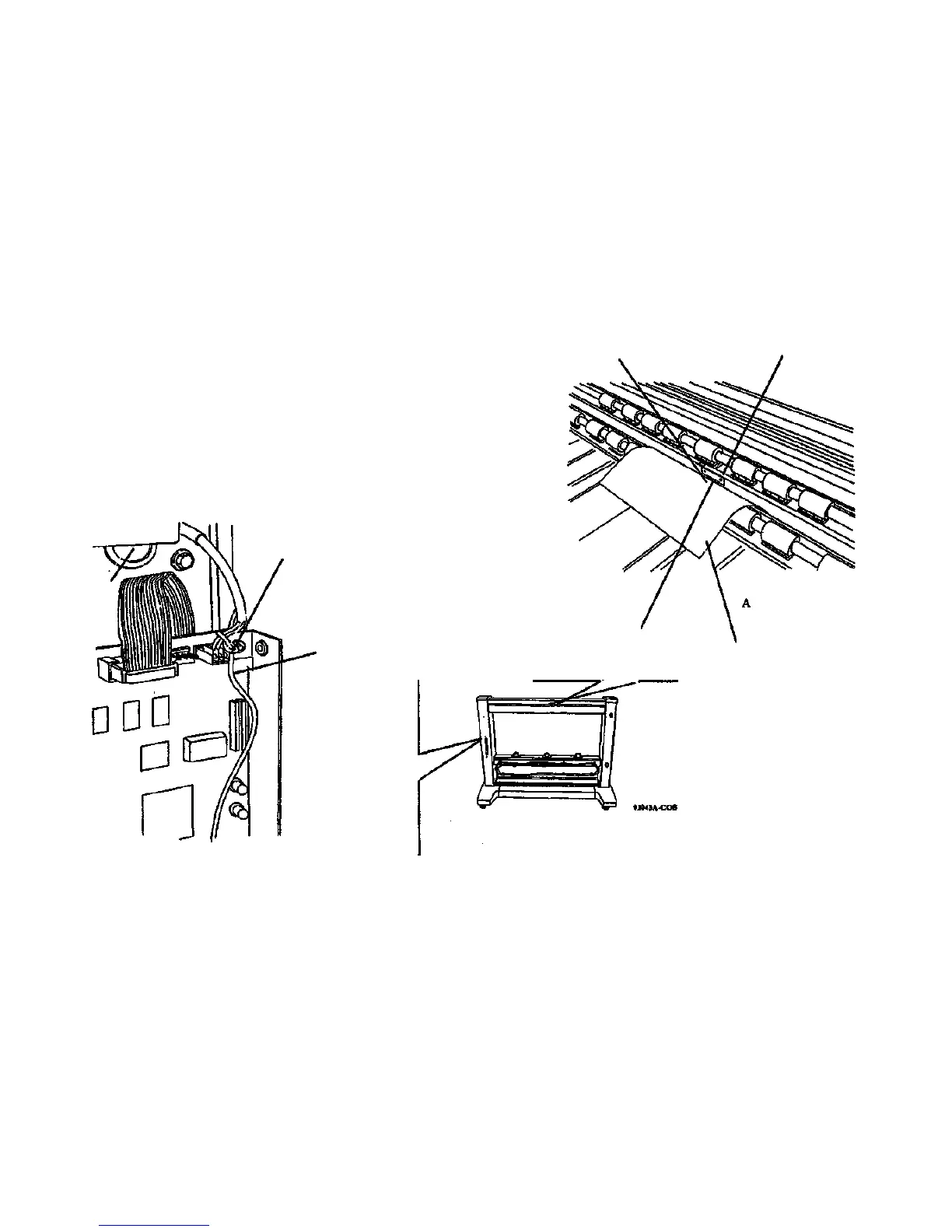

Figure 2. Removing the Edge Registered Sensor
Figure 1. Connector P6, Attaching the String
7356 SCANNER
4/97
4-11
REP 4.1.7
