Clutch RAP
Initial Actions
• This procedure can be used to check any
clutch
Procedure
Enter DIAGNOSTICS (General Procedures).
Enter code [xxxx] to test the Clutch (Refer to
appropriate BSD for the specific code).
Actuate the Clutch.
The Clutch energizes.
Y N
Deactuate the Clutch.

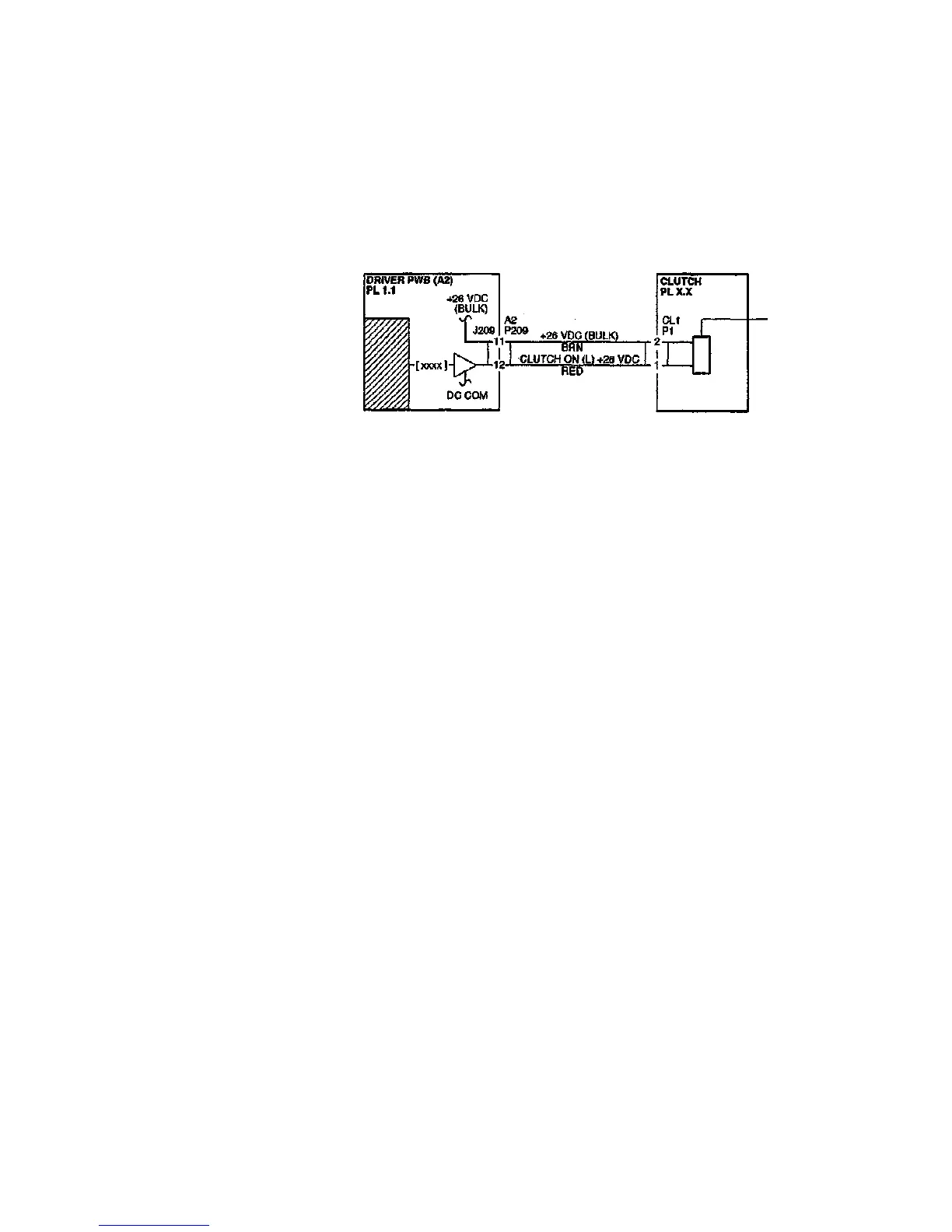

There Is +26 VDC at J209-12 (use the
actual connector/pin number on the
BSD) on the Driver PWB (A2).
Y N
Check the wires for an open circuit. If
the wires are good, replace the Clutch
(PL X-X).
Check the adjustment of the Clutch (ADJ
X-X).
If the adjustment is good, replace the
Clutch (PL X-X).
The Clutch and its circuit appear to be
operating normally, check the adjustment or
alignment of the Clutch.
8830
1/98
2-15
Generic Clutch RAP
