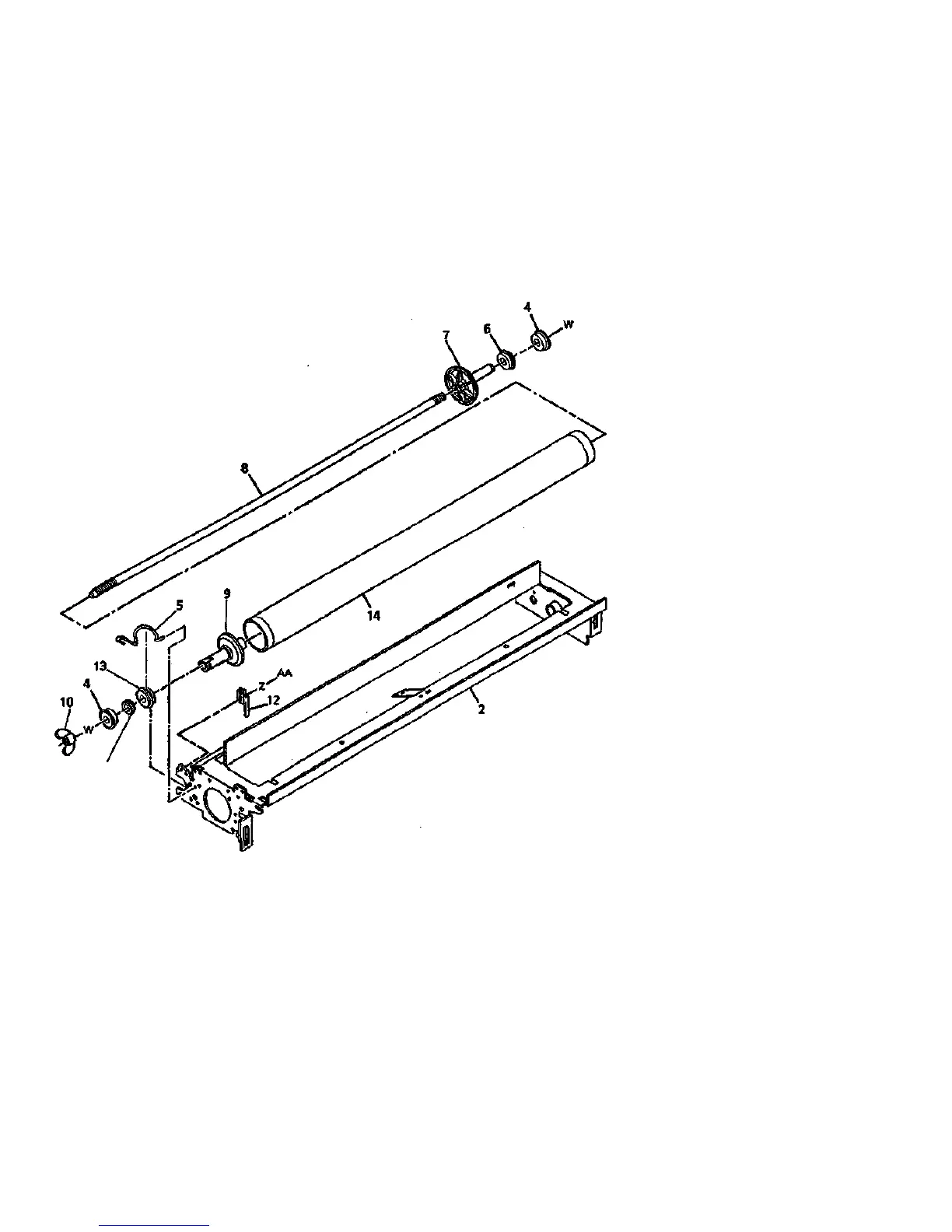

PL 9.2 PHOTORECEPTOR
1 {2,3,12,13
3(4,6-11,13
11
{TO PL9.5B,
ITEM 11)
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PART
..
6K15640
13K380
28E11470
--
--
230W652
7E1340
30E16161
-
1R535
DESCRIPTION
PART OF XEROGRAPHIC
MODULE ASSEMBLY
(REF: PL9.1 ITEM 4)
XEROGRAPHIC FRAME
(P/O ITEM 1)
SHAFT ASSEMBLY
BEARING
BEARING RETAINER
BEARING (P/O ITEM 3)
RH END CAP
(P/O ITEM 3)
SHAFT (P/O ITEM 3)
LH HUB (P/O ITEM 3)
WING NUT
TONER AUGER DRIVE GEAR
GROUND CLIP
BEARING (P/O ITEM 1)
PHOTORECEPTOR (REP 9.3)
0000020A-RNO
8830
2/97
5-21
PARTS LIST SECTION
PL 9.2
