Xerox 8830 Service Manual

ADJ 8.3 Cut Length
Purpose
The purpose is to calibrate the Printer to produce the
correct length prints for each media type.
Prerequisite
1. Check the following:
a. Fuser Temperature (NVM) (ADJ 10.1)
b. Vertical Magnification (ADJ 8.1)
c. Lead Edge Registration (ADJ 8.2)
Adjustment
1. Enter diagnostics.
2. Enter code [0955] and make one 600 mm print
and one 1200 mm print of Test Pattern #7.
3. Allow the prints to cool for five minutes.
4. (Figure 1): Measure the two prints in the paper
feed direction.

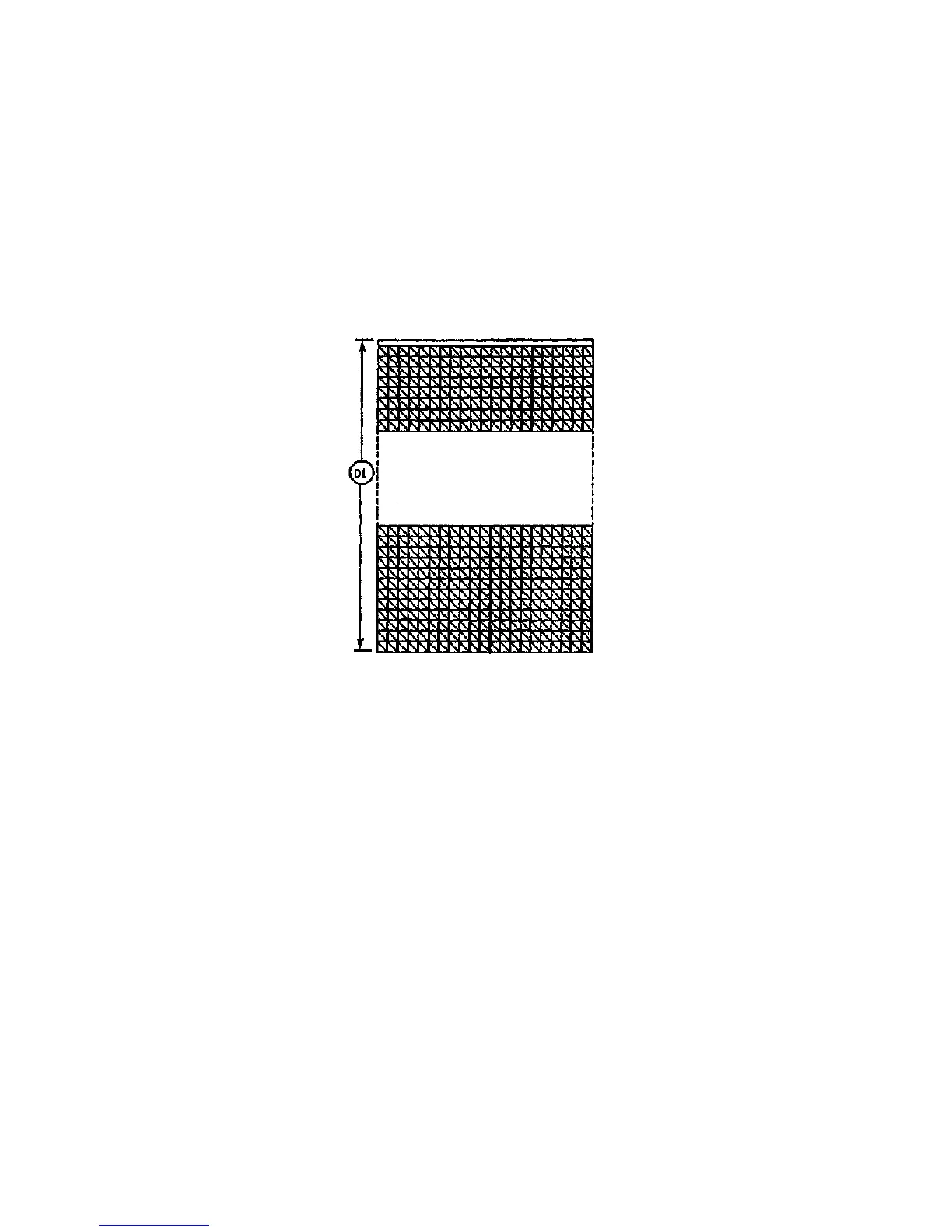

cutleng
Figure 1. Checking the Print Length
5. Enter code [0700] in order to adjust the Cut
Length. Enter [1] to adjust.
6. Select the type of media. The following message
is displayed. (Ih this example, bond paper media
has been selected.)
07 00 BOND CUT LENGTH ADJUSTMENT
LENGTH OF 600 MM COPY IS: 0 [ENTER]
7. Enter the measurement of the 600 mm print and
press the Enter button. The following message is
displayed.
07 00 BOND CUT LENGTH ADJUSTMENT
LENGTH OF 1200 MM COPY K: 0 [ENTER]
8. Enter the measurement of the 1200 mm print and
press the Enter button. The following message is
displayed.
07 00 BOND CUT LENGTH VALUES CORRECT?
600 = XXX, 1200 = XXXX I=YES/2=NO
9. Complete the adjustment as appropriate.
10. Repeat the check for all the types of media used
by the customer.
ADJ 8.3
1/98
4-96
8830
