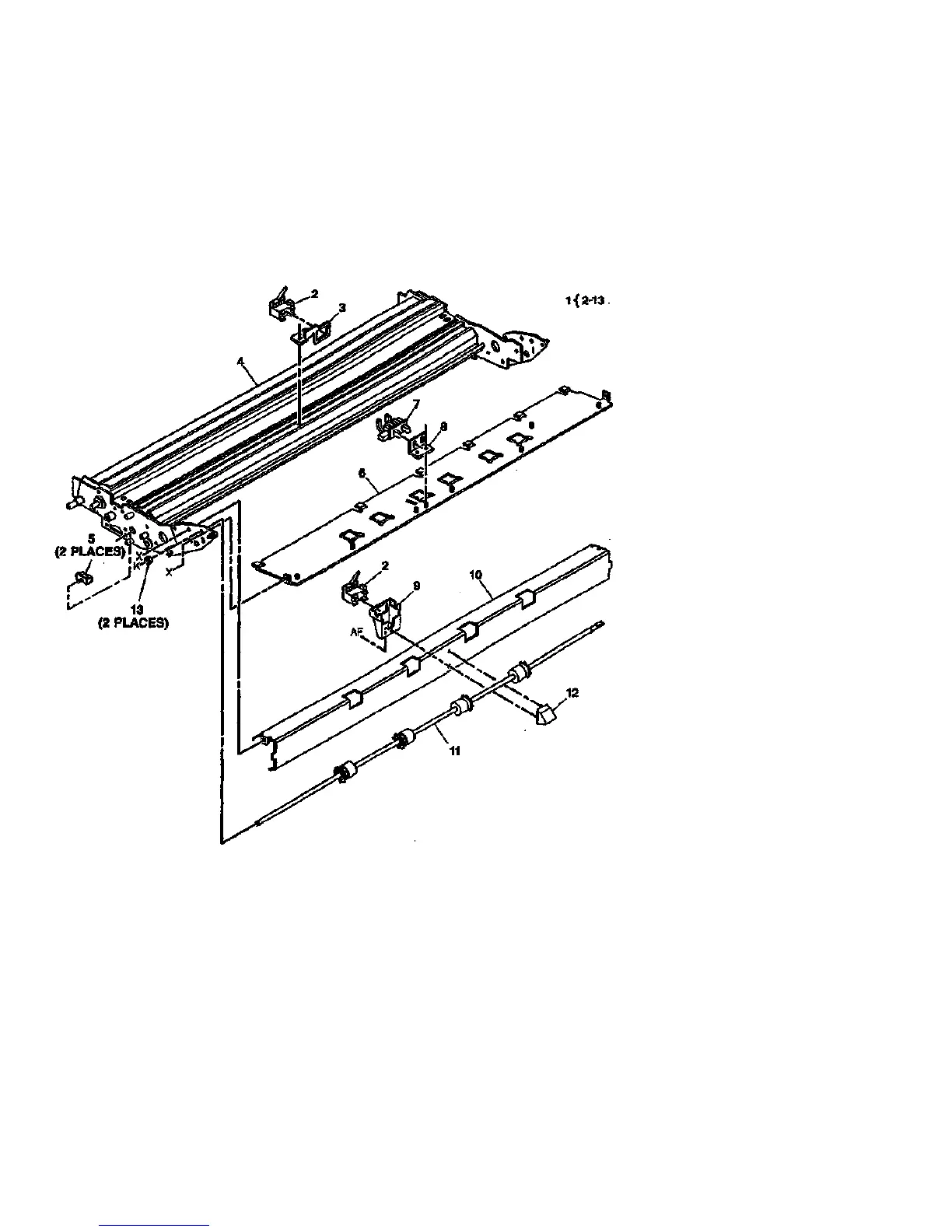

PL 8.4 MEDIA TRANSPORT COMPONENTS
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
PART
110K8711
—
19E7100
..
110K3731
..
49E54980
—
32E10830
-
DESCRIPTION
PART OF MEDIA
TRANSPORT ASSEMBLY
(REF: PL8.1 ITEM 4)
BUCKLE SWITCH (UPPER)
(REP 8.4)
MEDIA EXIT SWITCH
(LOWER) (REP 8.2)
SENSOR BRACKET
(P/O ITEM 1)
TRANSPORT FRAME
(P/O ITEM 1)
CABLE CLIP
SHEET UPPER BAFFLE
(P/O ITEM 1)
SHEET FEED SWITCH
SWITCH BRACKET
(P/O ITEM 1)
SENSOR BRACKET
EXIT SUPPORT
(P/O ITEM 1)
EXIT ROLL (P/O ITEM 1)
(REP 8.16)
STACKER SUPPORT
BUSHING (P/O ITEM 1)
0000006A-RNO
8830
2/97
5-19
PARTS LIST SECTION
