REP 8.12 Registration Pinch
Rolls
Parts List on PL 8.2
WARNING
Switch off the Main Power Switch. Disconnect the
Power Cord.
NOTE: The art used for this procedure was
developed for previous products and may not match
the 8830 configuration exactly.
Removal
1. Latch the Xerographic Module at the Service
Position (REP 9.2).
2. Remove the Media Transport Assembly (REP
8.1).
3. (Figure 1): Remove the Baffle.
Remove the two screws
(one each end)
Remove the two springs
'(one each end)
Rotate the screw until it
is free of the slot
Remove the Baffle
Rotate the
Assembly
R2525

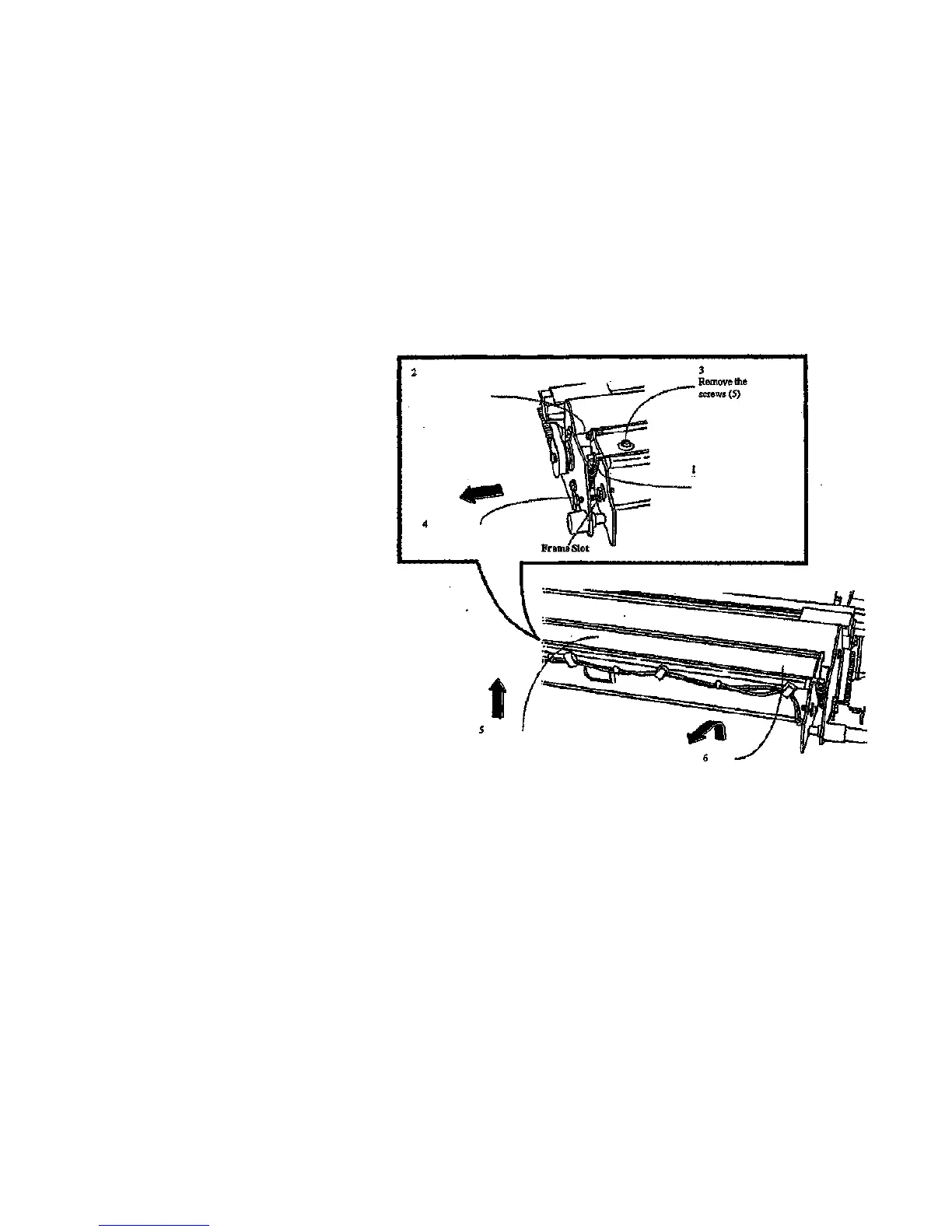

Figure 1. Removing the Baffle
1/98
4-33
REP 8.12
